Scroll to zoom Click a part # to view details

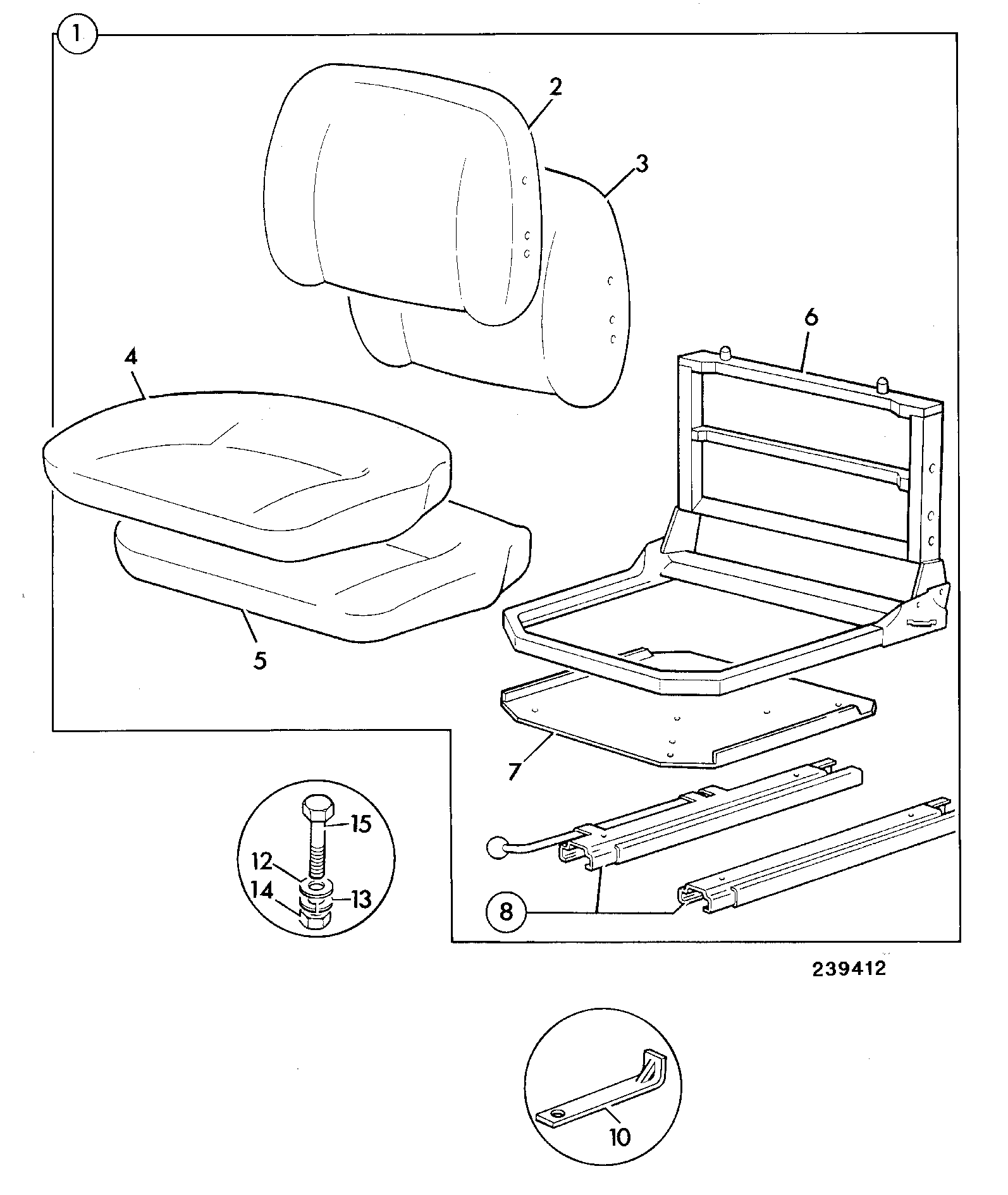

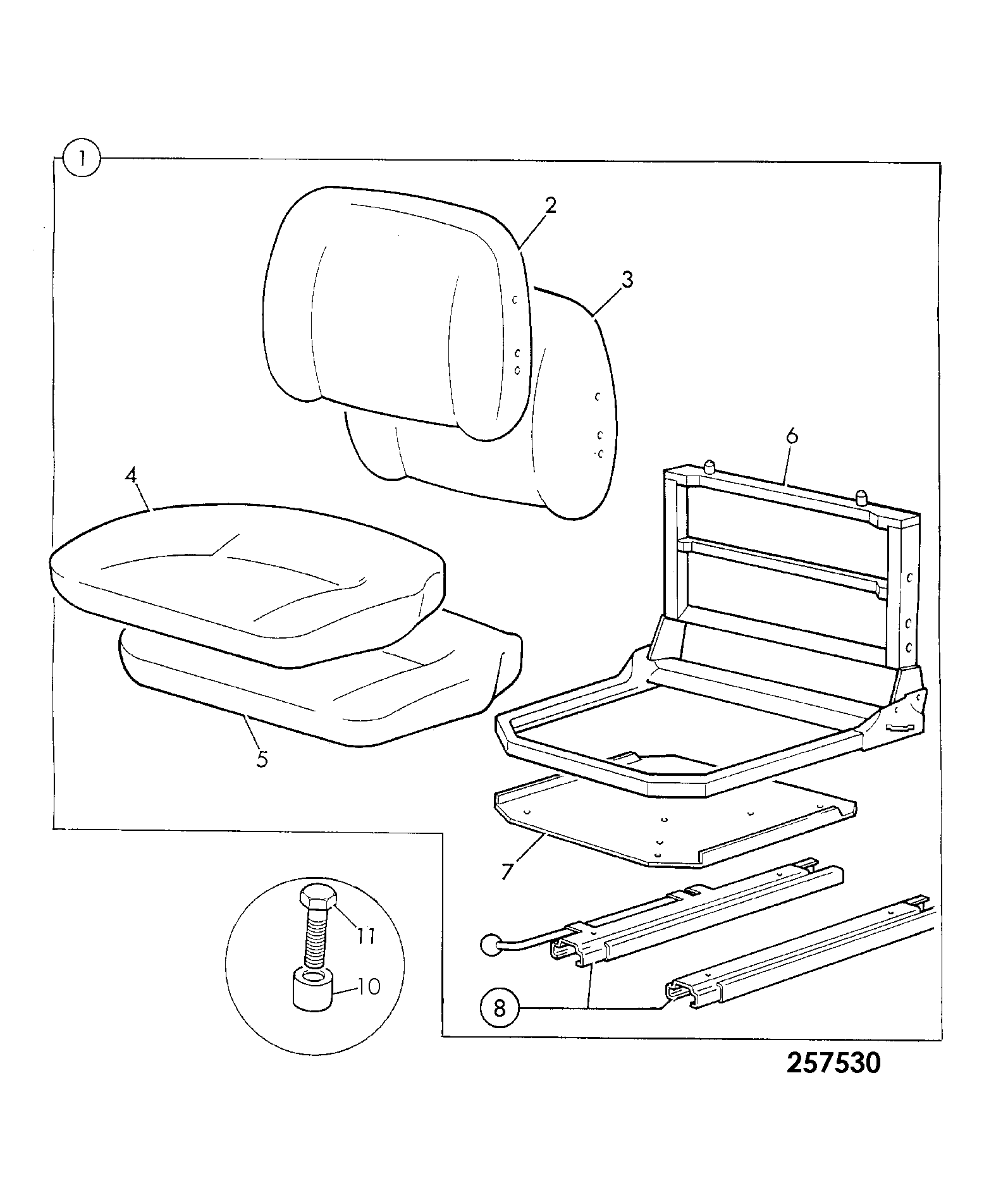

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Seat Cover Kit 40/212702 333/F1340 | 1 | $687.85 | |||
| 1 | Seat Covers (seat 40/209804 333/E9671 | 1 | $568.12 | |||
| 4 | KIT SEAT FOAM 40/212705 | 1 | $298.43 | |||
| 5 | KIT SEAT FRAME 40/202805 | 1 | $404.90 | |||
| 6 | SLIDE ASSY LH 40/212502 | 1 | $292.56 | |||
| 7 | SLIDE RAIL KIT 40/212707 | 1 | $444.42 | |||
| 8 | HANDLE 40/212501 | 1 | $58.72 | |||
| 9 | Kit Cross Strap 40/212706 | 1 | $243.14 | |||
| 10 | STOP SEAT 294/00744 | 1 | $59.65 | |||
| 12 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 13 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 14 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 15 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| A | SEAT (FABRIC) 40/215000 | 1 | $1,285.13 | |||
| A | SEAT (VINYL) 40/215100 | 1 | $1,476.23 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-B2-6-8-400548 B2-6-8 SEAT, STATIC
View Diagram -
DIAG-B2-6-9-400548 B2-6-9 SEAT,STATIC,LOW ROOF
View Diagram -
DIAG-B2-6-10-400548 B2-6-10 SEAT,SUSPENSION LOW BACK
View Diagram
