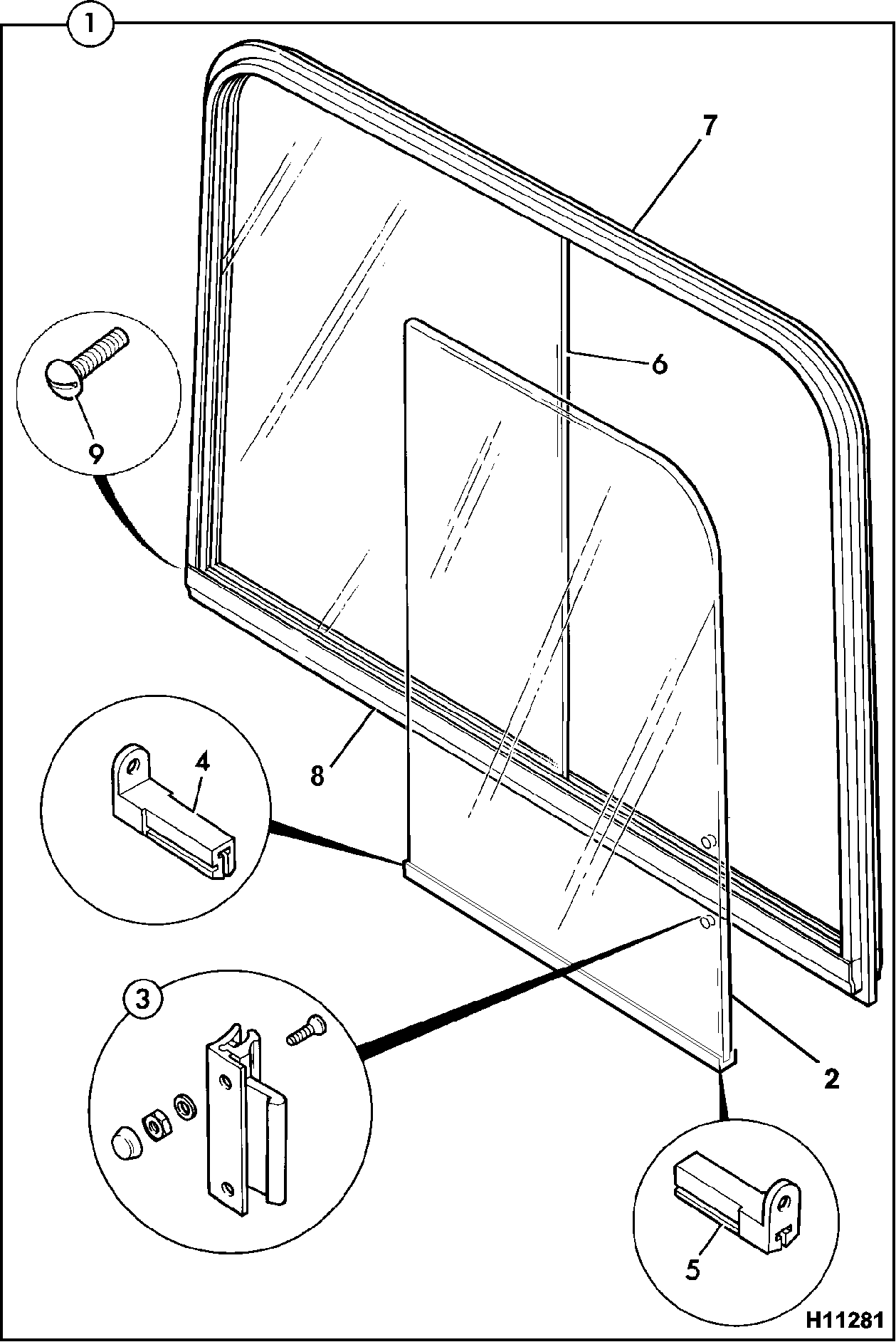

B2-4-5 DIRECT GLAZING Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GLASS DOOR, UPPER 827/20457	1	AVAILABLE TO ORDER	$716.63	Quantity
2	GLASS DOOR, LOWER 827/20458	1	AVAILABLE TO ORDER	$170.11	Quantity
4	GLASS REAR, UPPER, 827/20461	1	AVAILABLE TO ORDER	$294.50	Quantity
5	GLASS REAR 827/20455	1	AVAILABLE TO ORDER	$401.76	Quantity
6	GLASS TOP 827/20456	1	AVAILABLE TO ORDER	$315.71	Quantity
7	GLASS FRONT, LOWER 827/20459	1	AVAILABLE TO ORDER	$453.13	Quantity

Showing 1 to 6 of 6 parts

DIAG-B2-4-4-397912 B2-4-4 DIRECT GLAZING REPLACEMENT MATERIAL
View Diagram
DIAG-B2-5-1-397912 B2-5-1 BASE, SEAT & TOOLBOX
View Diagram
DIAG-B2-4-3-397912 B2-4-3 WINDOW, SIDE OPENING
View Diagram

Previous Assembly DIAG-B2-4-4-397912 B2-4-4 DIRECT GLAZING REPLACEMENT MATERIAL Next Assembly DIAG-B2-5-1-397912 B2-5-1 BASE, SEAT & TOOLBOX
