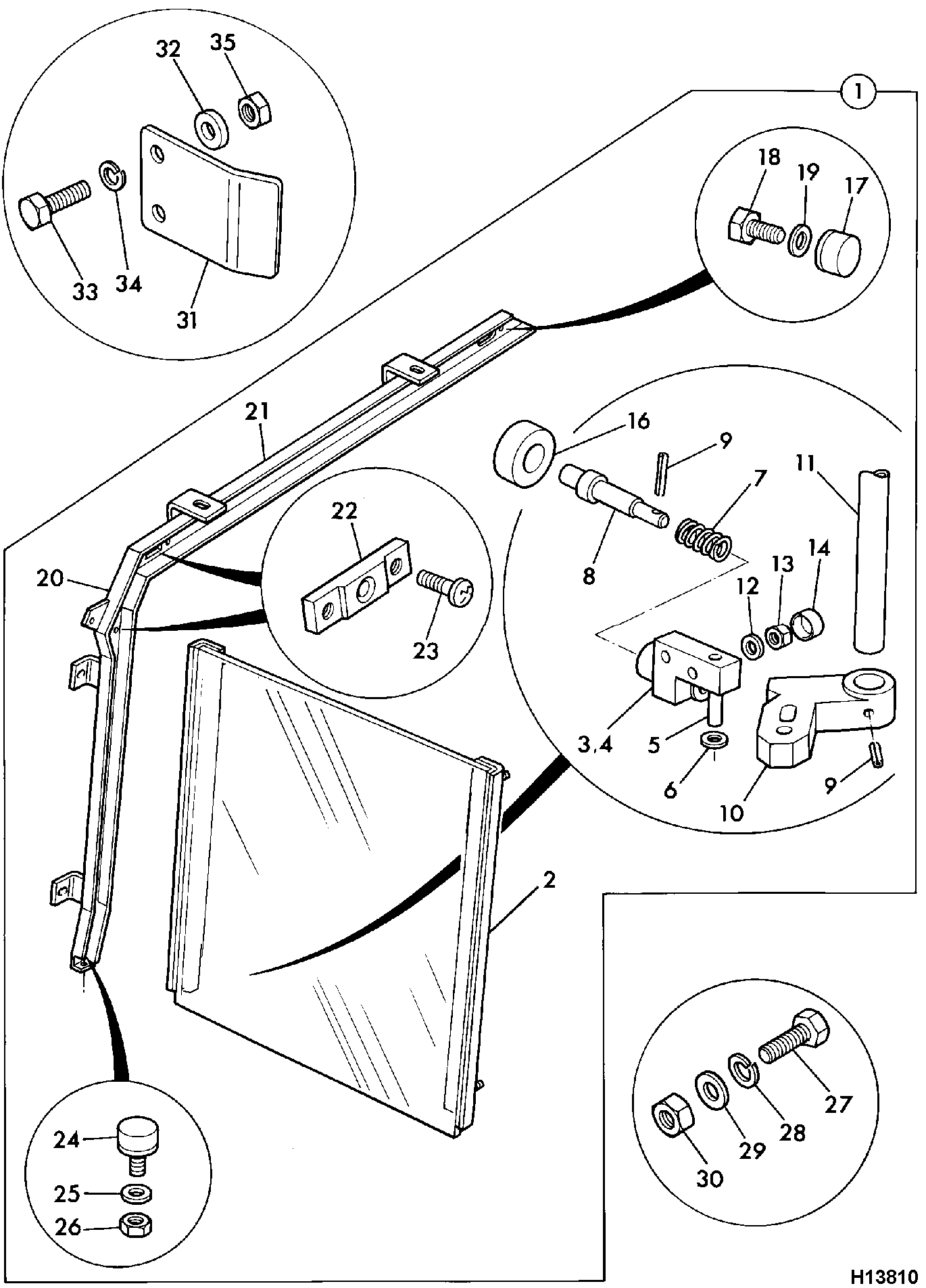

B2-4-22 WINDOW, SIDE OPENING Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	(W) (P) SCREW NO6X3/4 1430/0104	1	AVAILABLE TO ORDER	$2.12	Quantity
1	WINDOW ASSY 927/16900	1	AVAILABLE TO ORDER	$2,304.69	Quantity
2	WINDOW ASSY 927/16910	1	AVAILABLE TO ORDER	$1,163.13	Quantity
3	CATCH 927/16303	1	AVAILABLE TO ORDER	$53.87	Quantity
6	GLASS FIXED PANE 827/20253	1	AVAILABLE TO ORDER	$722.57	Quantity

Showing 1 to 5 of 5 parts

DIAG-B2-4-21-398017 B2-4-21 WINDSCREEN, ASSEMBLY
View Diagram
DIAG-B2-5-20-398017 B2-5-20 SEAT MOUNTING
View Diagram
DIAG-B2-4-20-398017 B2-4-20 CAB GLAZING
View Diagram

Previous Assembly DIAG-B2-4-21-398017 B2-4-21 WINDSCREEN, ASSEMBLY Next Assembly DIAG-B2-5-20-398017 B2-5-20 SEAT MOUNTING
