Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

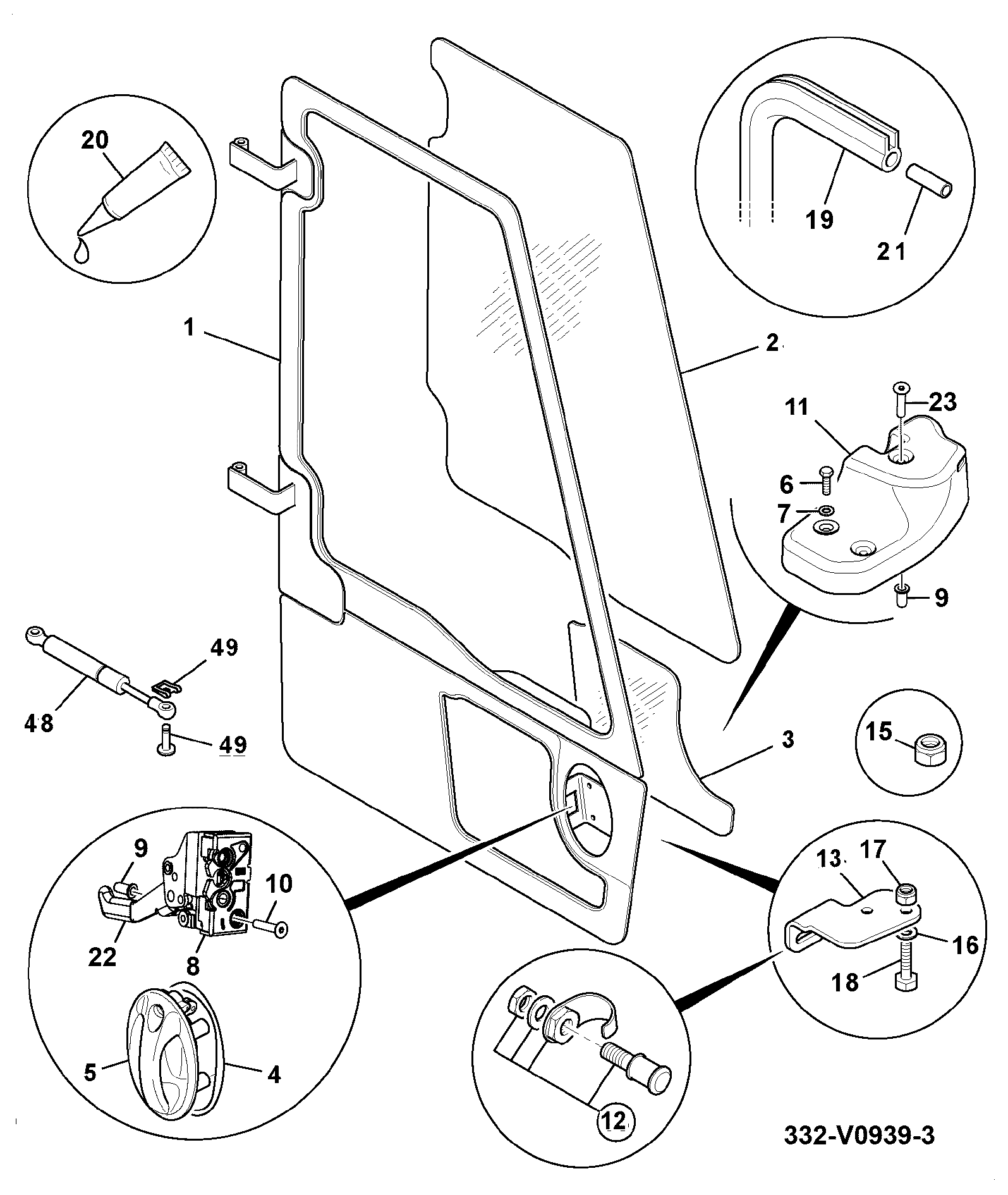

| (W) (P) GA P145 DOOR AS SUPPLIED L/H 332/U8959 | 1 | $4,618.67 | ||||
| 1 | (W) (P) WA-DOOR FRAME LH~P145 332/U8958 | 1 | $9,056.33 | |||
| 2 | (W) DOOR GLASS L/H UPPER~FT P145 332/R2330 | 1 | $1,029.93 | |||
| 3 | (W) DOOR GLASS L/H LOWER~FT P145 332/R2331 | 1 | $525.58 | |||
| 4 | GASKET-STD DOOR HANDLE 2m 331/28105 333/A6182 | 1 | $7.72 | |||
| 5 | DOOR HANDLE - CORPORATE 332/A3729 | 1 | $141.04 | |||
| 6 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 8 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 9 | RIVET NUT (BR3) 826/01101 | 1 | $3.76 | |||
| 10 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 11 | (W) (Pre-P)-LH LOCK COVER (POST M/c) 332/A5687 | 1 | $170.17 | |||
| 12 | G/A DOOR STRIKER 128/12669 | 1 | $126.37 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 16 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 17 | RIVET NUT-M8 (BR3) 826/01103 | 1 | $1.46 | |||
| 18 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 19 | (W) (P) WEATHERSTRIP- Ring 4010mm Long 331/48128 | 1 | $155.16 | |||
| 20 | Adhesive Kit 993/55700 993/55701 | 1 | $332.68 | |||
| 21 | HARNESS PROTECTION DISC (N) 274/01043 | 1 | $0.48 | |||
| 22 | LATCH HANDLE - LH (41.5212.1202) 332/A5642 | 1 | $158.78 | |||
| 23 | FLANGE BUTTON HEAD M6X16 Lock Patch 333/L4878 | 1 | $3.21 | |||
| 48 | (W) (P) GAS STRUT : 300N 332/U3630 | 1 | $80.37 | |||
| 49 | (W) CLEVIS ASSEMBLY 913/01100 | 1 | $8.66 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-B2-4-22-393560 B2-4-22 DOOR RIGHT HAND
View Diagram -

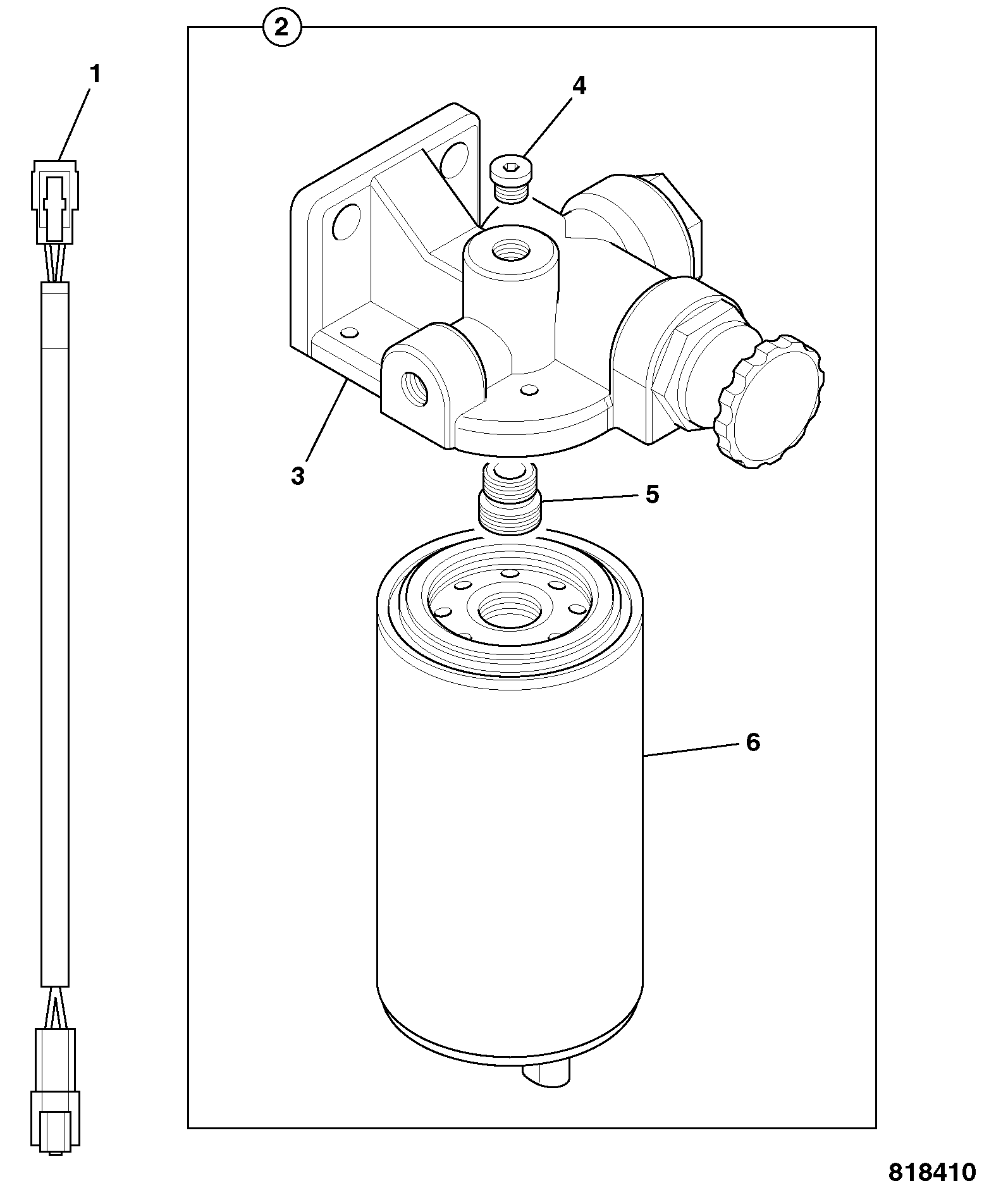

DIAG-U6-6-2-393559 U6-6-2 FILTER FUEL SEDIMENTER
View Diagram -

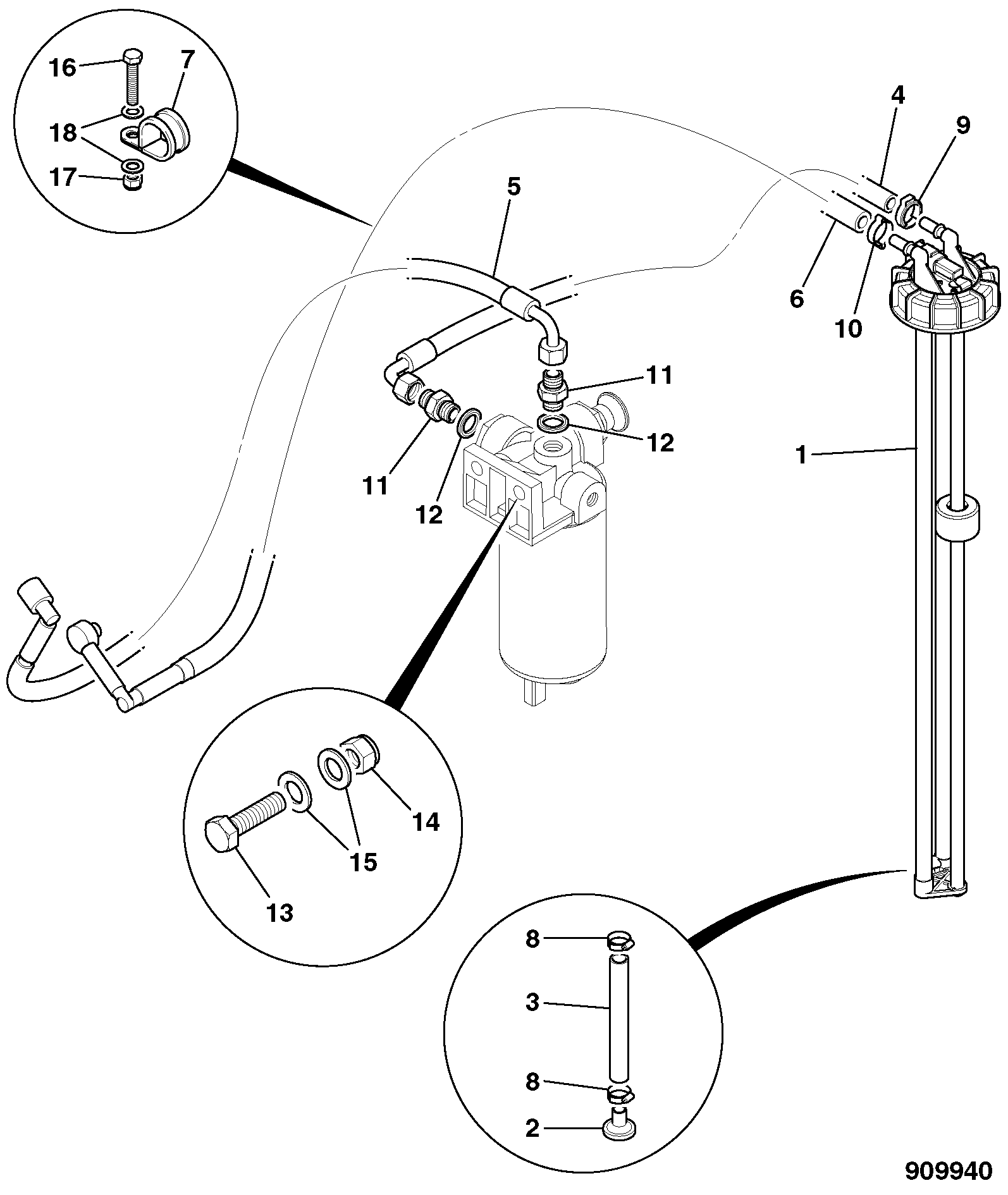

DIAG-U6-4-2-393559 U6-4-2 FUEL PIPES FUEL TANK TO FILTER
