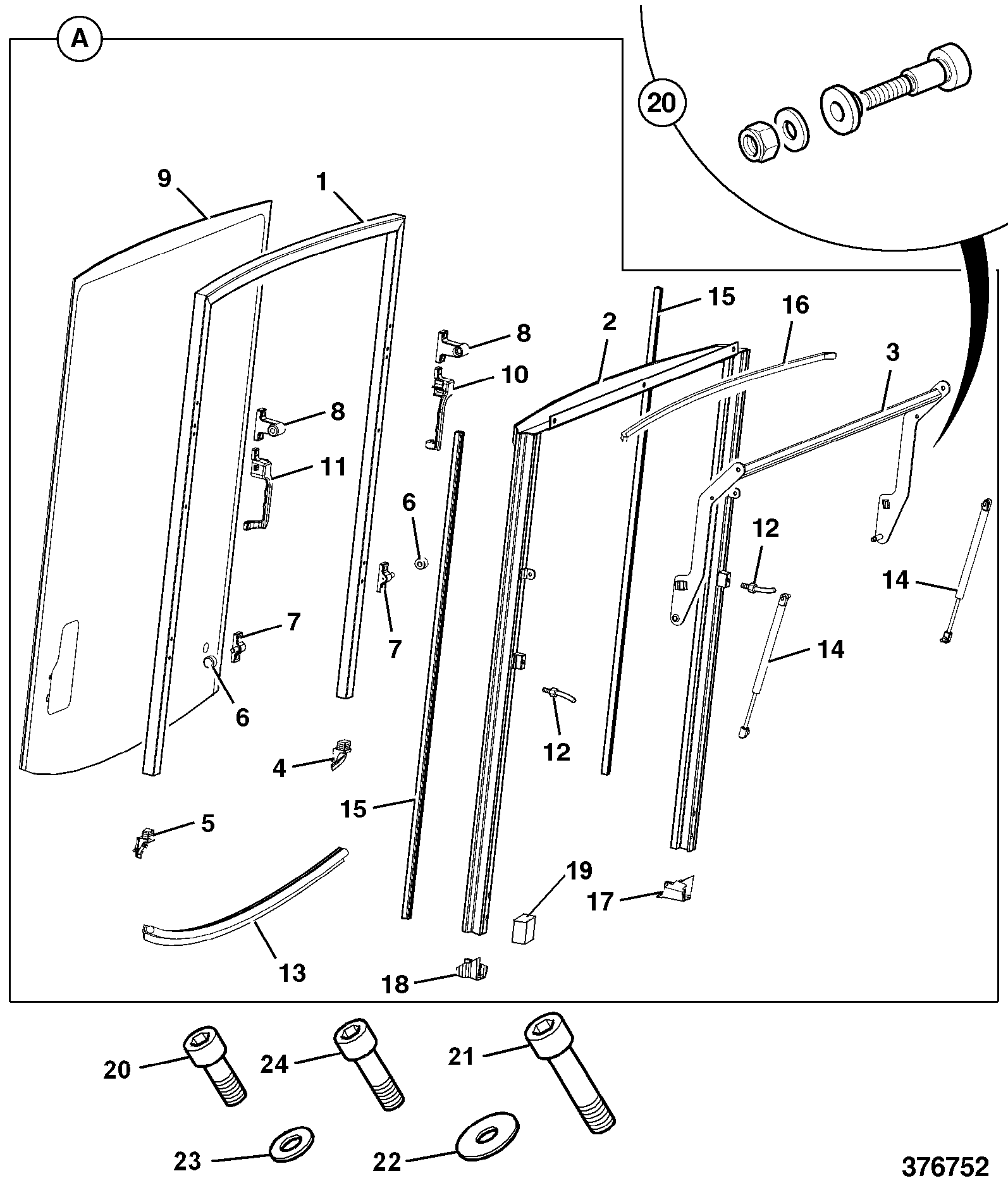

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| COUNTERSUNK SCREW M8X45 826/11183 | 1 | $6.00 | ||||
| M8X40 COUNTERSUNK SOCKET SCREW 826/11100 | 1 | $6.02 | ||||
| NUT LOCK, M8 BLACK 826/11042 | 1 | $1.36 | ||||
| 1 | GLASS L/H FLAT (P392)~BHL P392 827/80269 | 1 | $599.01 | |||
| 2 | GLASS R/H FLAT (P392)~BHL P392 827/80249 | 1 | $586.24 | |||
| 3 | 'FLAT SEAL (P392)- Vulcanised ring 3530m 331/23360 | 1 | $201.99 | |||
| 4 | '(P) RUBBER R/H SEAL- Vulcanised ring 32 331/23362 | 1 | $172.39 | |||
| 5 | HINGE GASKET X300 813/10167 | 1 | $7.69 | |||
| 6 | WINDOW GASKET X 1000 813/10233 | 1 | $10.05 | |||
| 7 | CAP SCREW M8x25 826/10349 | 1 | $0.81 | |||
| 8 | (W) SIDE WINDOW HANDLE 331/38532 | 1 | $68.52 | |||
| 9 | HINGE CAP X300 331/23194 | 1 | $5.61 | |||
| 10 | PLUG 8mm 826/10901 | 1 | $8.36 | |||
| 11 | LH LEVER BRACKET (OUTSOURCED) 331/35450 | 1 | $80.91 | |||
| 11 | RH LEVER BRACKET(OUTSOURCED) 331/35451 | 1 | $77.18 | |||
| 12 | WINDOW MOULDING X300 331/35756 | 1 | $45.92 | |||
| 13 | WINDOW GASKET 813/10238 | 1 | $26.77 | |||
| 13 | WINDOW GASKET X300 813/10244 | 1 | $7.62 | |||
| 14 | WINDOW GASKET X300 813/10239 | 1 | $4.32 | |||
| 15 | BLACK WASHER M8 823/00529 | 1 | $3.11 | |||
| 16 | WINDOW STOP 331/34878 | 1 | $54.95 | |||
| 17 | L/H UPPER HANDLE X300 ( 59.6000.0003 ) 331/34994 | 1 | $198.42 | |||
| 17 | R/H UPPER HANDLE X300(59.6000.0004) 331/34996 | 1 | $195.18 | |||
| 18 | MOUNT LOCKBACK X300(OUTSOURCED) 331/35480 | 1 | $106.97 | |||
| 19 | CAP 123/06916 | 1 | $11.90 | |||
| 20 | SET SCREW M8 X 20 826/11040 | 1 | $0.95 | |||
| 21 | (W) (P) BOLT M6x50 1315/3212Z | 1 | $0.58 | |||
| 22 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 23 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 24 | NUT CAP M6 335/E2399 | 1 | $0.57 | |||
| 27 | WINDOW GASKET X300 813/10243 | 1 | $21.70 | |||
| 28 | WINDOW GASKET ROUND 813/10169 | 1 | $2.21 | |||
| 29 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 30 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 31 | WINDOW CATCH 331/31071 335/Y5639 | 1 | $32.85 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-
B2-3-13 DOOR RIGHT SIDE
View Diagram -
DIAG-B2-5-3-395127 B2-5-3 WINDOW, REAR
View Diagram -
B2-3-12 DOOR, RIGHTHAND SIDE
View Diagram
