Scroll to zoom Click a part # to view details

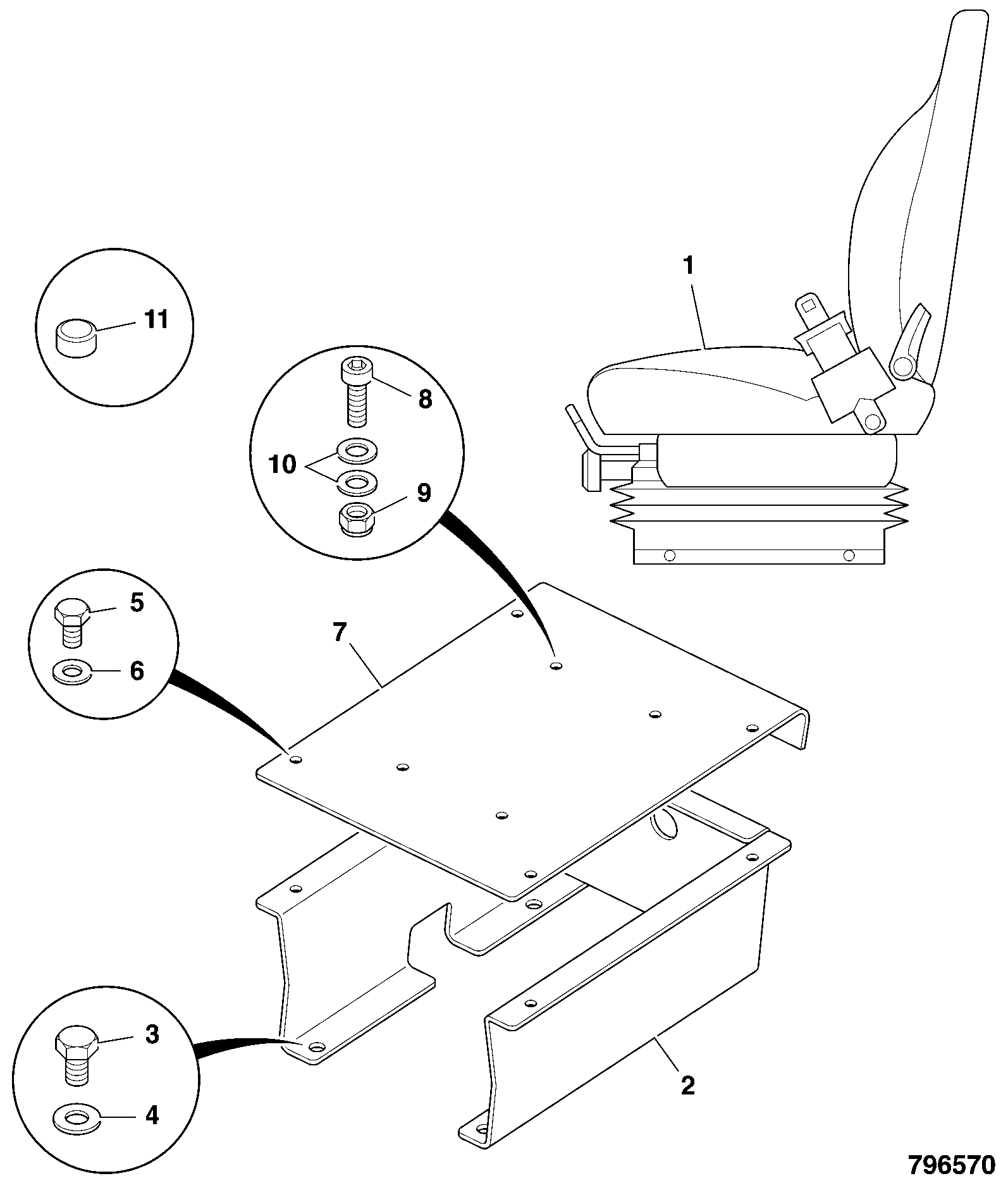

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | KAB 115 VINYL MECH SUSP SEAT 40/911025 333/U4023 | 1 | $2,939.19 | |||
| 2 | SEAT BASE PRESSING 331/42449 | 1 | $95.60 | |||
| 3 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 4 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 5 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 6 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 7 | SEAT ADAPTOR PLATE 331/50491 | 1 | $59.59 | |||
| 8 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 9 | NUT LOCK, M8 BLACK 826/11042 | 1 | $1.36 | |||
| 10 | BLACK WASHER M8 823/00529 | 1 | $3.11 | |||
| 11 | NUT CAP M8 335/E1356 | 1 | $0.27 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-B2-33-1-404642 B2-33-1 SEAT, ASSEMBLY MECH. SUSPENSION FABRIC
View Diagram -

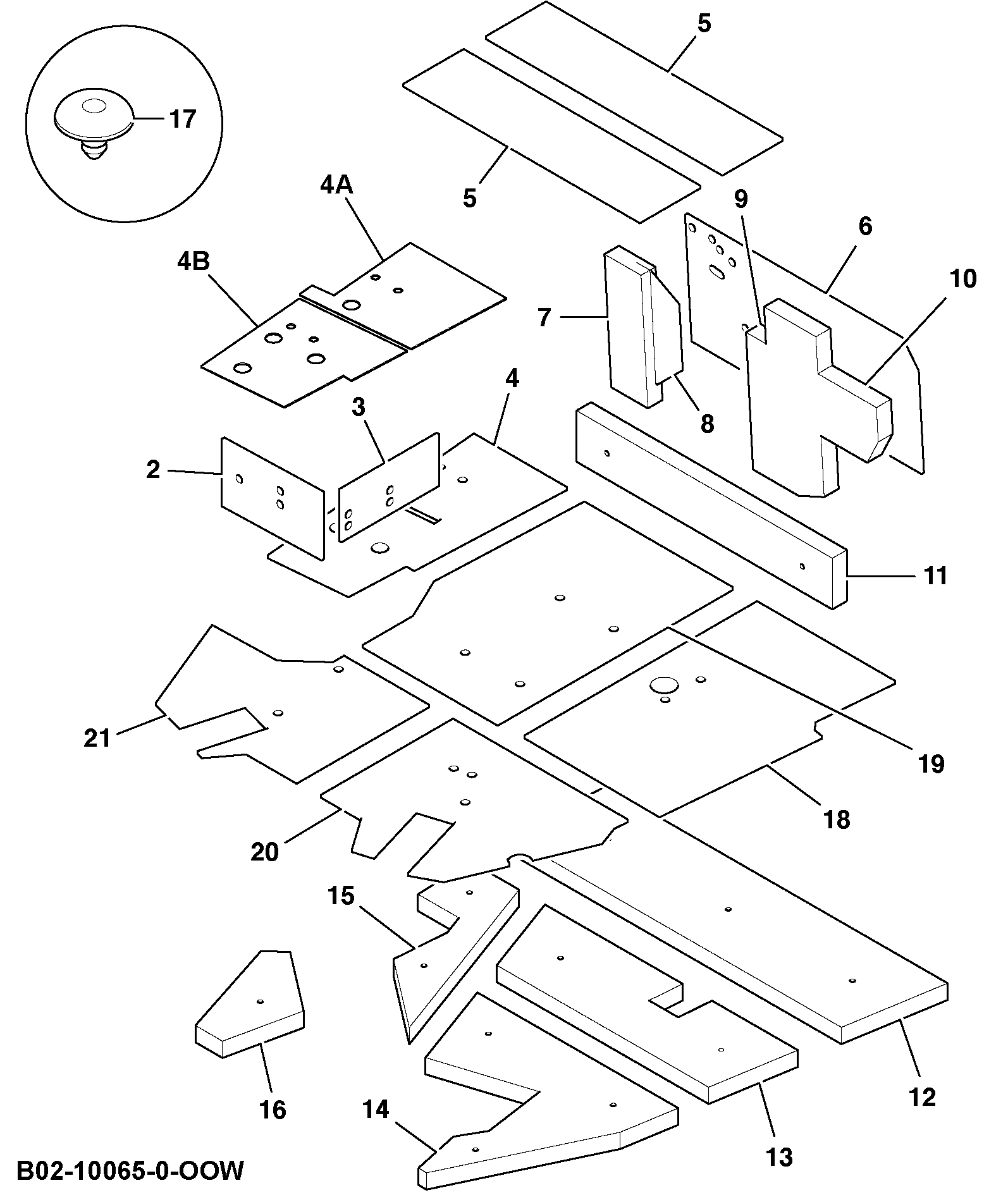

DIAG-B2-35-2-404642 B2-35-2 SOUND PROOFING CAB
View Diagram -
DIAG-B2-36-1-404642 B2-36-1 GLASS HAMMER
View Diagram
