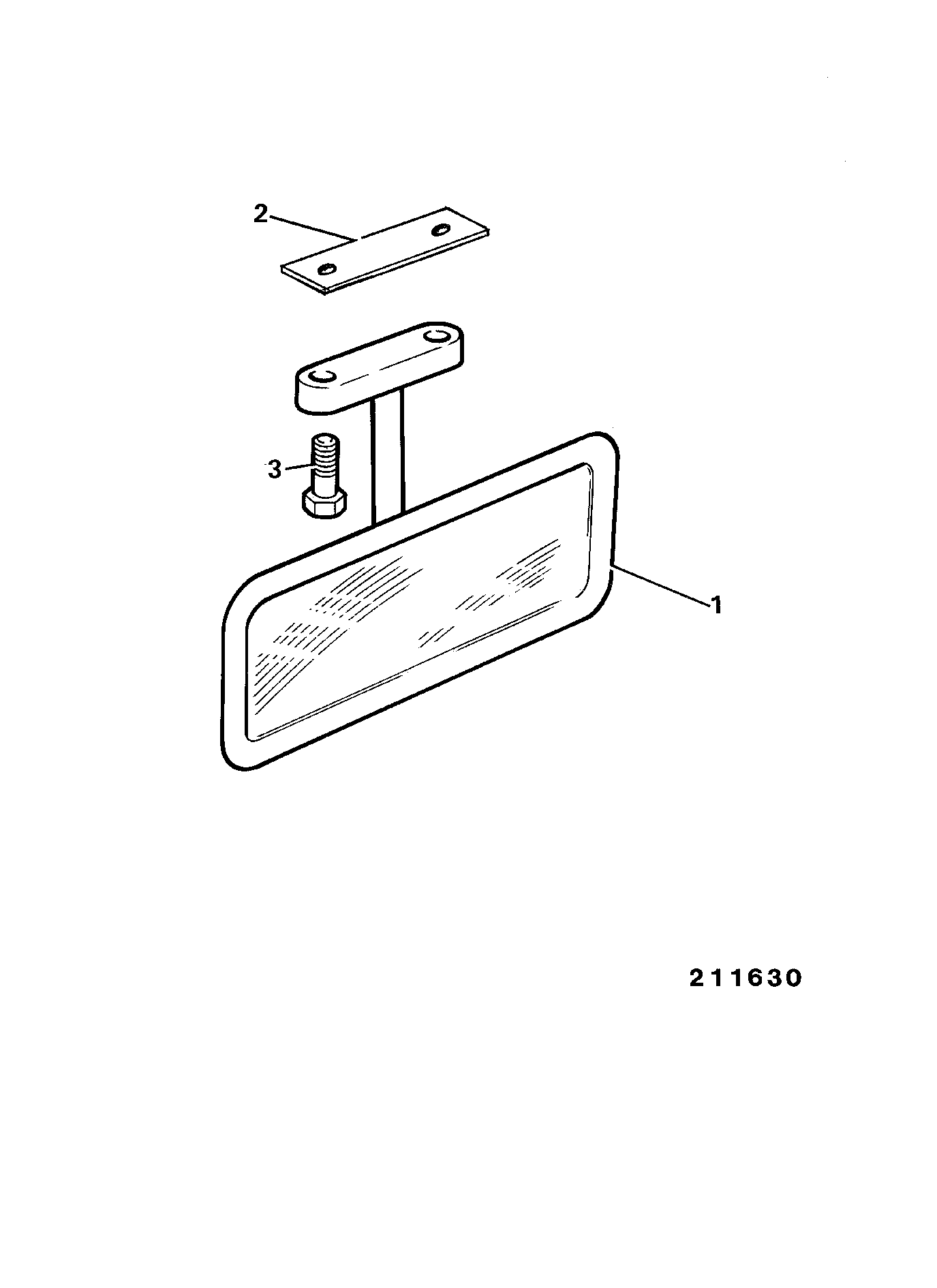

B2-31-10 MIRROR INTERIOR Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MIRROR INTERIOR 123/04078	1	AVAILABLE TO ORDER	$19.23	Quantity
3	SCREW M5x25 COUNTERSUNK (P392) RE-INST 826/10472	1	AVAILABLE TO ORDER	$1.70	Quantity

Showing 1 to 2 of 2 parts

DIAG-B2-31-1-404642 B2-31-1 MIRROR INTERIOR
View Diagram
DIAG-B2-30-1-404642 B2-30-1 CAB MOUNTINGS
View Diagram
DIAG-B2-33-1-404642 B2-33-1 SEAT, ASSEMBLY MECH. SUSPENSION FABRIC
View Diagram

Previous Assembly DIAG-B2-31-1-404642 B2-31-1 MIRROR INTERIOR Next Assembly DIAG-B2-33-1-404642 B2-33-1 SEAT, ASSEMBLY MECH. SUSPENSION FABRIC
