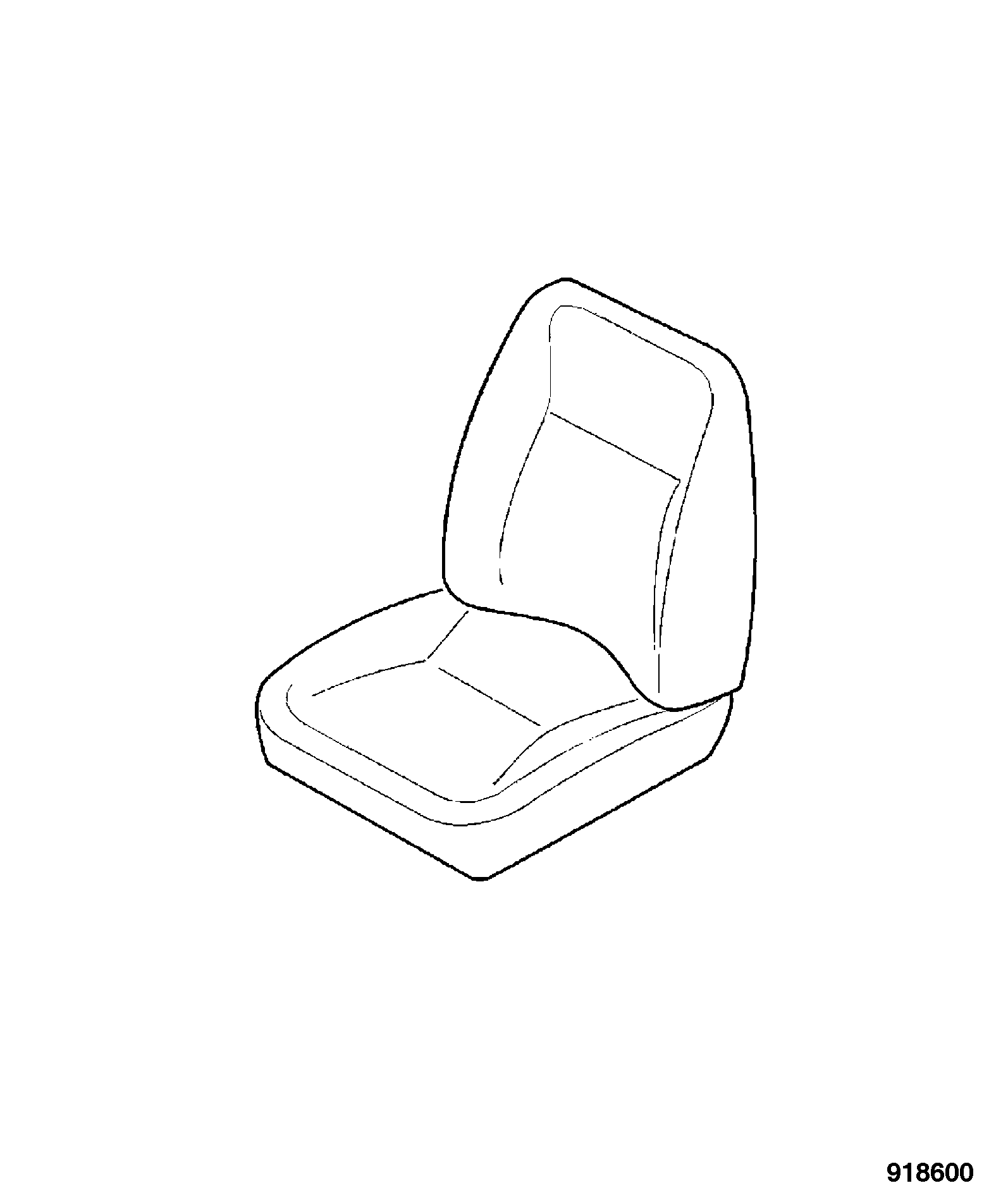

B2-3-5 SEAT, UPPER CLOTH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
A	SEAT UPPER 332/L0575	1	AVAILABLE TO ORDER	$3,328.59	Quantity
B	HEAD REST KIT 40/910607	1	AVAILABLE TO ORDER	$199.22	Quantity

Showing 1 to 2 of 2 parts
