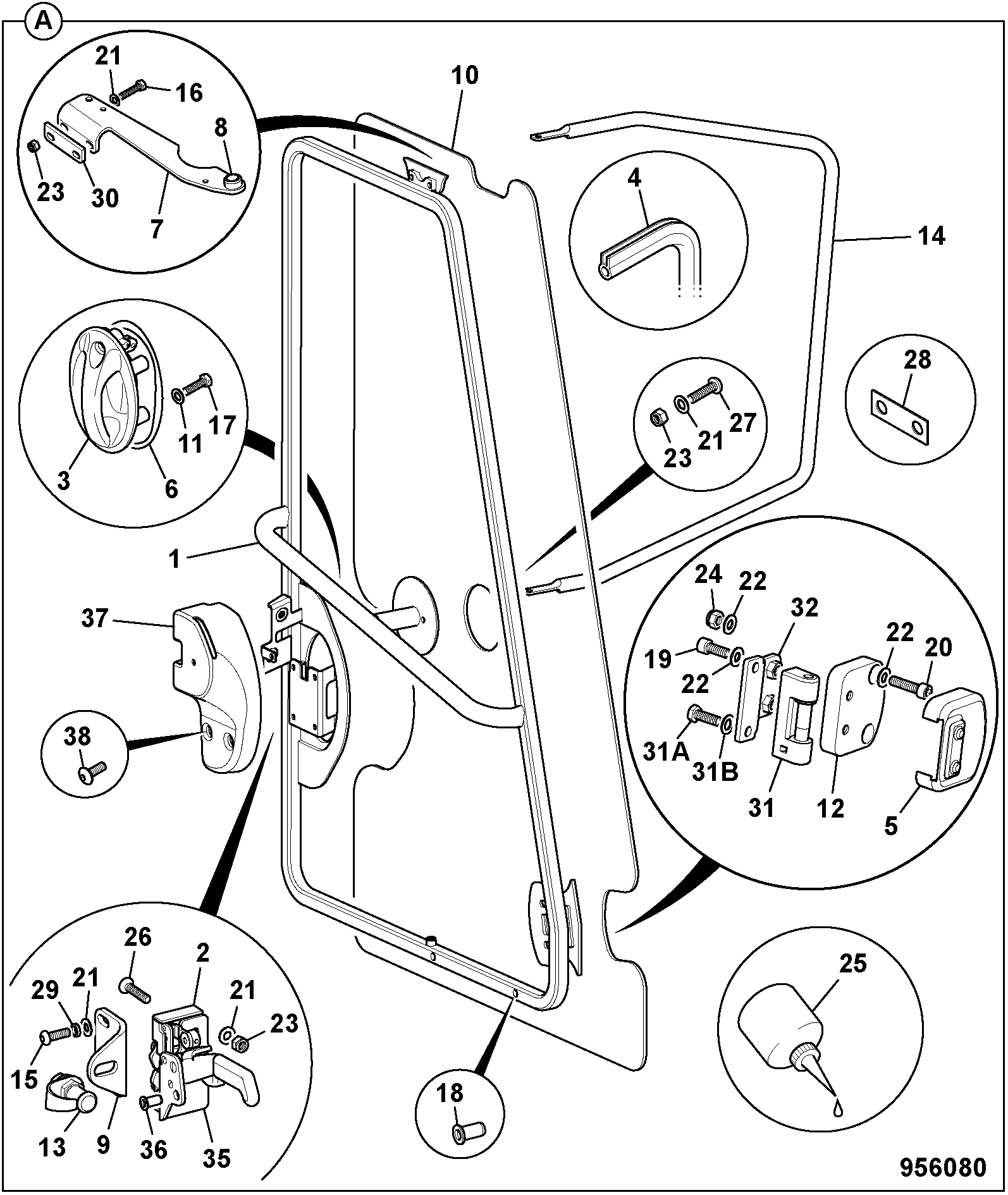

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 0A | (W) (P) DOOR ASSY AS SUPPLIED(RH) 482/10204 332/U9639 | 1 | $2,201.51 | |||
| 2 | CORPORATE LATCH - LH 332/A5004 332/A9108 | 1 | $143.79 | |||
| 3 | DOOR HANDLE - CORPORATE 332/A3729 | 1 | $141.04 | |||
| 4 | (W) WINDOW/DOOR SEAL 50Mtr Roll 926/90003 | 1 | $25.86 | |||
| 5 | (W) (P) HINGE COVER 331/52619 | 1 | $52.92 | |||
| 6 | GASKET-STD DOOR HANDLE 2m 331/28105 333/A6182 | 1 | $7.72 | |||
| 7 | '(W) (P) top hinge wa (rh) GOING OBSOLET 335/09694 | 1 | $628.39 | |||
| 8 | BUSH 476/10132 | 1 | $27.84 | |||
| 9 | (W) (P) STRIKER BRACKET FASTRAC 331/58097 | 1 | $76.13 | |||
| 10 | (W) Door Glass (R/H)~FT 3000S 827/80359 | 1 | $877.41 | |||
| 11 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 12 | (W) (P) PLASTIC HINGE MOUNT 331/51442 | 1 | $207.88 | |||
| 13 | 'DOOR STRIKER BOLT X300 ( 05.0024.4021 ) 331/30951 | 1 | $72.32 | |||
| 14 | (W) (P) RH MIRROR ARM 335/10220 | 1 | $95.38 | |||
| 15 | SCREW SOCKET M8x25 LONG 826/01487 | 1 | $10.21 | |||
| 16 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 17 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 18 | RIVET NUT-M8(KANBAN) 826/01102 | 1 | $4.83 | |||
| 19 | CAP-SCREW M10 L-_25mm GRADE 12.9 1391/3407D | 1 | $2.78 | |||
| 20 | CAPSCREW: M10 x 40 1391/3410D | 1 | $2.23 | |||
| 21 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 23 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 24 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 25 | 8597 HMLC N 310ML 4103/2209 4103/2110 | 1 | $30.00 | |||
| 26 | M8 CSK SOCKET HEAD SCREW 826/10481 | 1 | $2.97 | |||
| 27 | SCREW BUTTON HEAD M8 X30 826/10504 | 1 | $1.46 | |||
| 29 | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 30 | (W) (P) SPACER 331/54581 | 1 | $2.00 | |||
| 31 | NUT 826/10947 | 1 | $6.94 | |||
| 32 | M12 BLK WASHER 823/10410 | 1 | $3.08 | |||
| 33 | ABI HINGE (406/801) (MIXED) 331/62521 401/M9997 | 1 | $23.31 | |||
| 33A | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 34 | (W) (P) WA HINGE MOVABLE 332/U7940 | 1 | $204.48 | |||
| 35 | LATCH HANDLE - LH (41.5212.1202) 332/A5642 | 1 | $158.78 | |||
| 36 | RIVET NUT (BR3) 826/01101 | 1 | $3.76 | |||
| 37 | (W) (P) RH DOOR LATCH COVER (TRIM 331/52912 332/A0401 | 1 | $26.46 | |||
| 38 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

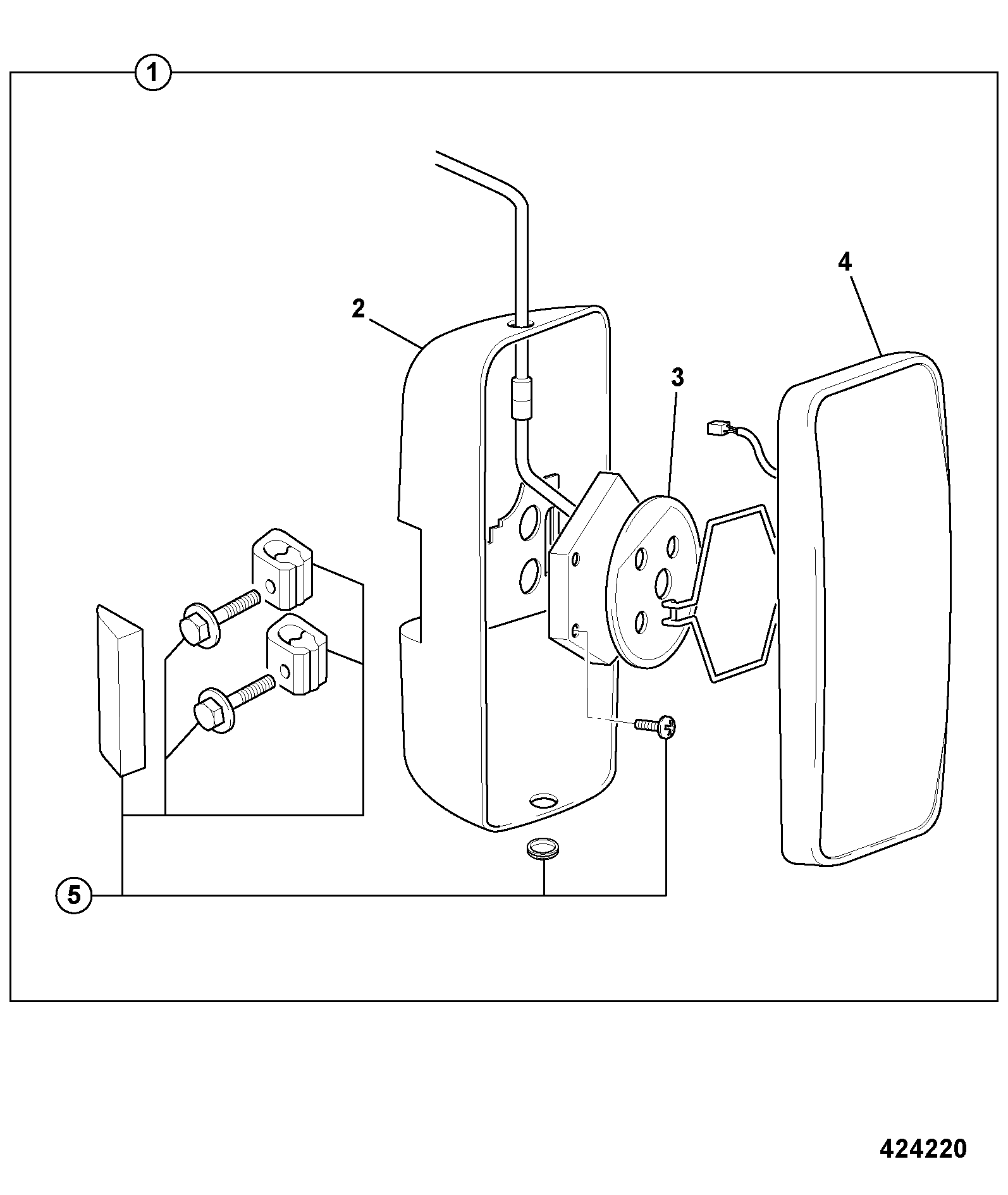

DIAG-B2-3-5-393595 B2-3-5 MIRRORS EXTERNAL, ELECTRIC HEATED & ADJUSTABLE
View Diagram -
DIAG-B2-3-12-393595 B2-3-12 DOOR CAB LEFT HAND
View Diagram -

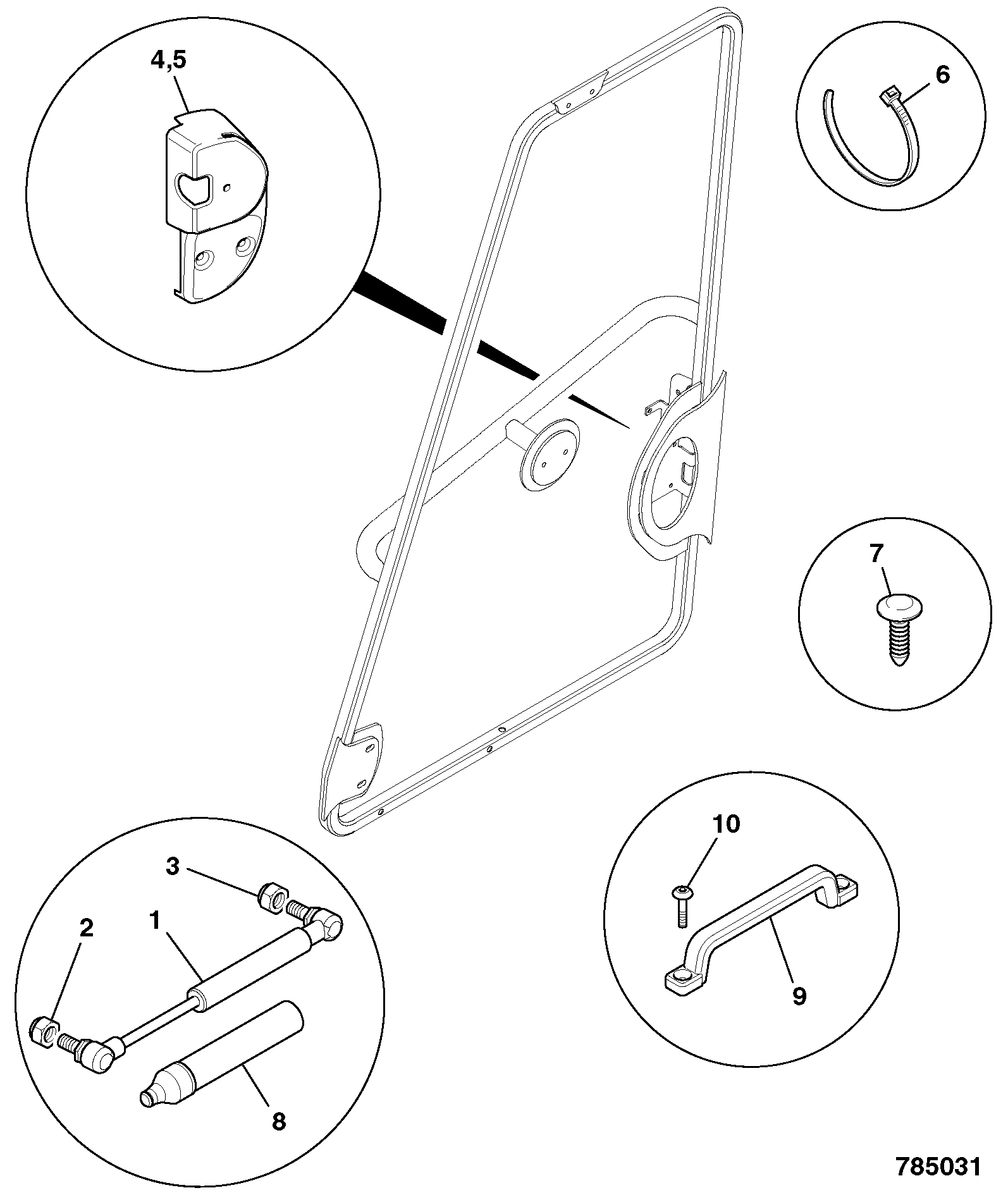

DIAG-B2-3-3-393595 B2-3-3 CAB DOOR FINISHING COMPONENTS
View Diagram
