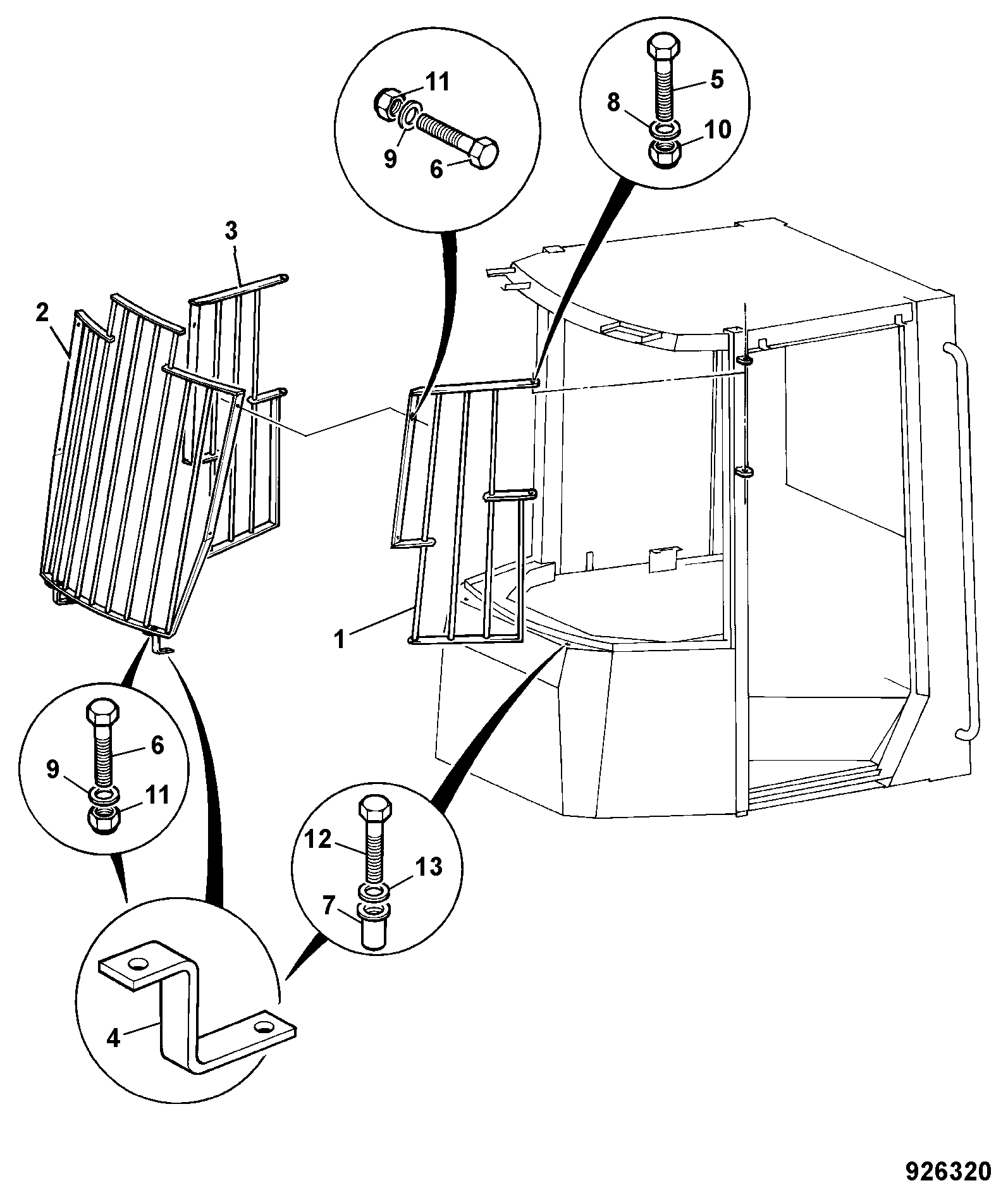

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA SCREEN GUARD 335/05268 | 1 | $7,608.32 | |||
| 2 | LOWER SIDE BRACKET 331/34333 | 1 | $288.78 | |||
| 3 | BOTTOM BRKT 331/29814 | 1 | $297.72 | |||
| 4 | RIVET NUT-M8 (BR3) 826/01103 | 1 | $1.46 | |||
| 5 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 6 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 7 | SET-SCREW M10 L-_50mm 1315/0412D | 1 | $4.08 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 11 | SET SCREW M16X30 1315/0708Z | 1 | $9.73 | |||
| 12 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 13 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
Showing 1 to 13 of 13 parts
