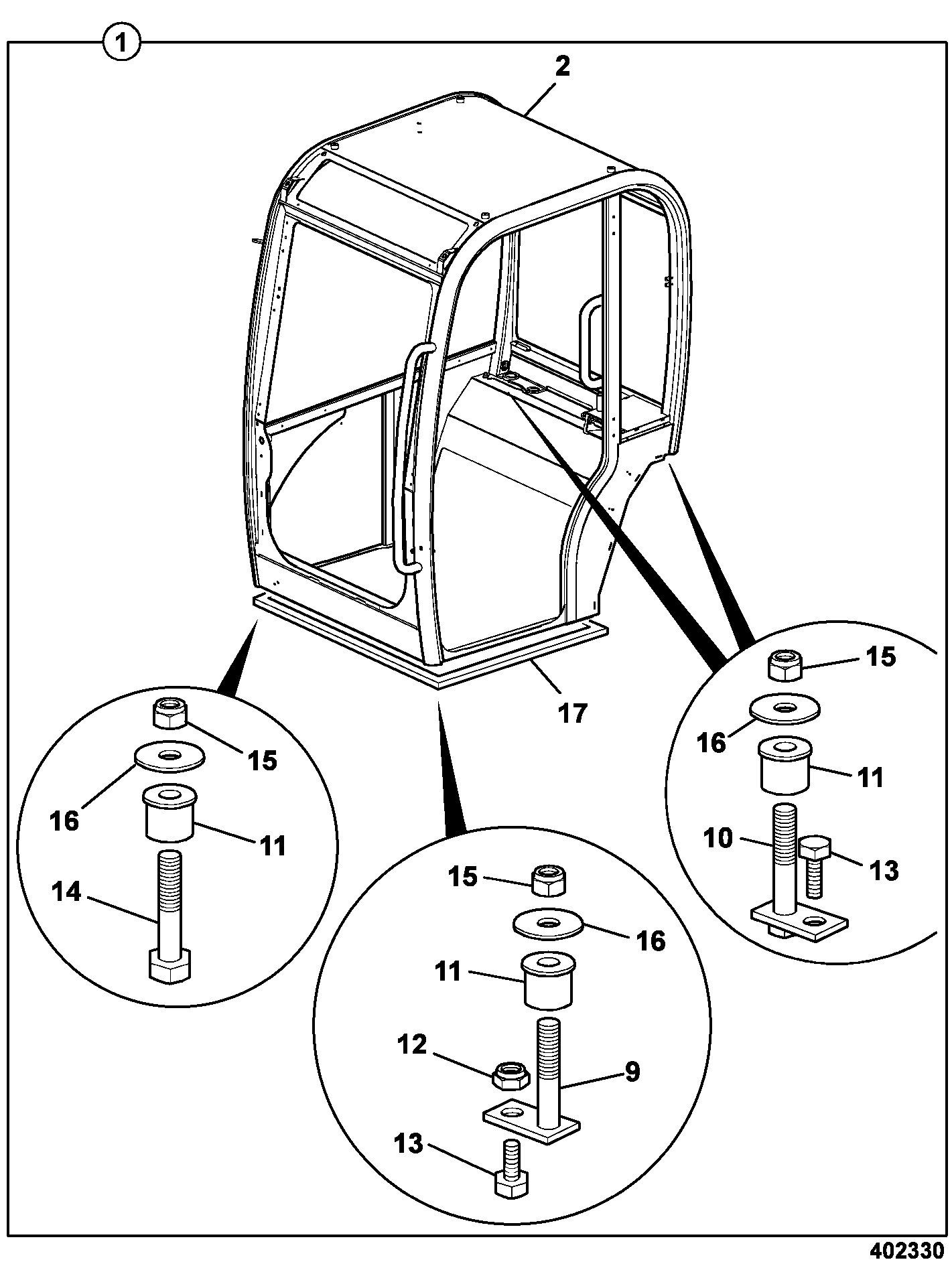

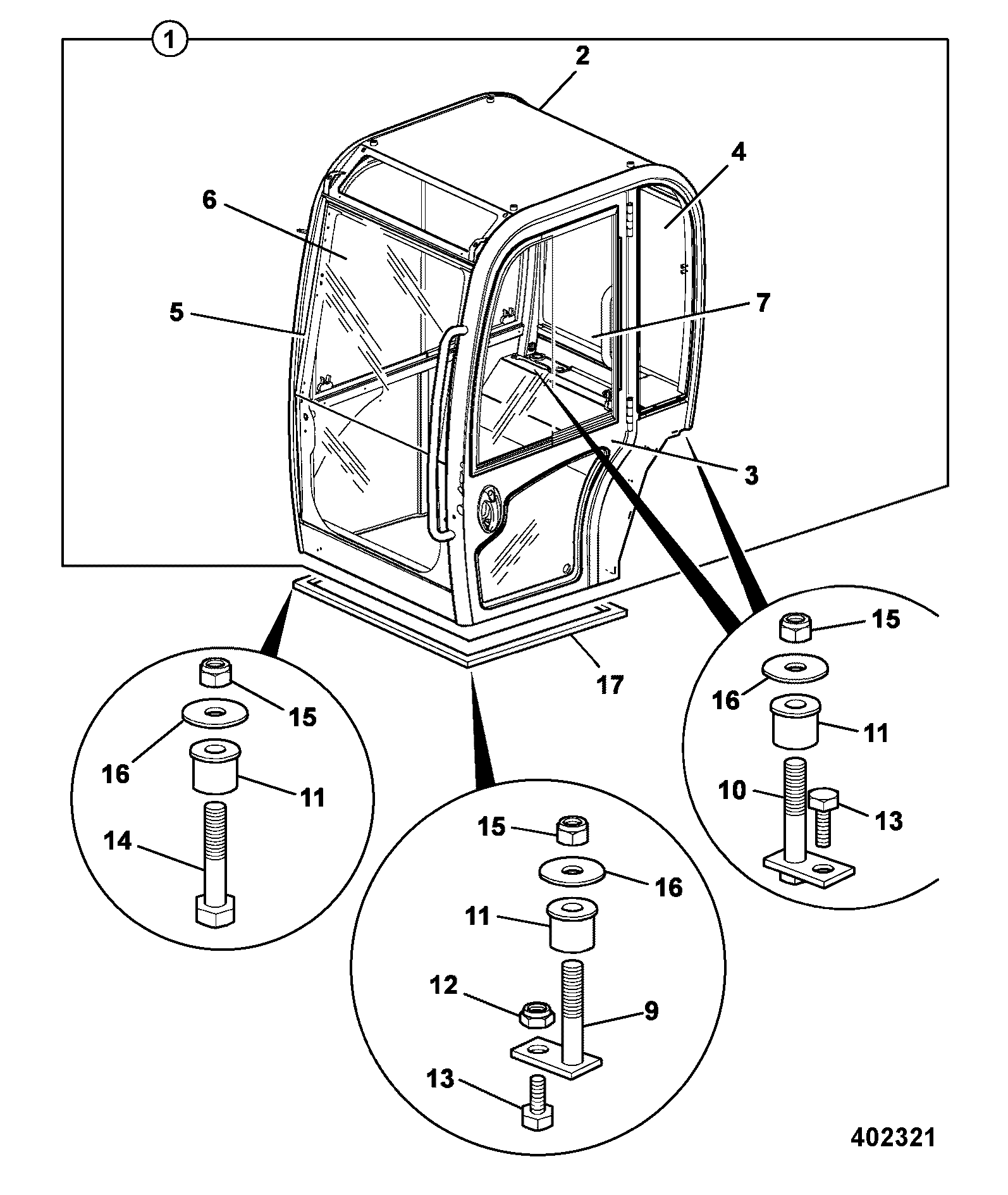

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | ||||
| NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | ||||
| RUBBER PAD 331/31626 | 1 | $1.46 | ||||
| WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | ||||
| 1 | (W) (W) P/S W/A ZTS CAB FRAME 335/01809 | 1 | $14,656.74 | |||
| 2 | (W) (W) W/A FOGS GUARD ZTS 331/27081 | 1 | $1,505.53 | |||
| 3 | WASHER 3/8 LARGE BLACK 1413/0003Z | 1 | $4.62 | |||
| 4 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 5 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 8 | (W) RIVET G46/0 | 1 | $0.27 | |||
| 9A | (W) (P) SOUNDPROOF L/H REAR ZTS 331/20935 | 1 | $361.30 | |||
| 9B | (W) (P) SOUNDPROOF R/H FRONT ZTS 331/20937 | 1 | $370.14 | |||
| 9C | (W) (P) SOUNDPROOF R/H REAR ZTS 331/20939 | 1 | $196.29 | |||
| 9D | (W) (P) ZTS ROOF ROOF LINING 331/21128 | 1 | $507.65 | |||
| 9E | RETAINER BUTTON-BLACK 826/01308 | 1 | $2.57 | |||
| 11 | (P) M6 HARDENED WASHER 1422/0006 | 1 | $21.40 | |||
| 12 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 13 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 14 | (P) GLASS CLAMP BRACKET ZTS 331/29953 | 1 | $126.69 | |||
| 14 | (W) (P) ROOF CLAMP BRACKET ROBOT 331/34741 | 1 | $89.87 | |||
| 15 | WASHER M8 HARDENED(KANBAN) 1422/0007Z | 1 | $14.22 | |||
| 16 | (P) THUMBWHEEL M8x20 (Reinstate) 826/10872 | 1 | $16.04 | |||
| 17 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 18 | GROMMET 828/00400 | 1 | $1.73 | |||
| 19 | (W) (P) PLATE WIPER PARK ZTS 331/31625 | 1 | $242.12 | |||
| 19 | WIPER PLATE 232/24012 | 1 | $199.03 | |||
| 20 | (W) (P) PAINT WIPER SPACER 232/24013 | 1 | $166.55 | |||
| 21 | SCREW M6x25 BUTTON SOCKET 826/01560 | 1 | $4.18 | |||
| 22 | SET SCREW M10x12(KANBAN) 1315/0401Z | 1 | $0.81 | |||
| 23 | WASHER - NYLON 823/00344 | 1 | $1.49 | |||
| 24 | MFI WINDOW SUPPORT 331/25735 | 1 | $0.44 | |||
| 25 | (W) (P) WINDOW RETAINER ZTS 331/31747 | 1 | $189.31 | |||
| 25A | (P) FLOCK SPRAYED CHANNEL 926/22903 | 1 | $8.05 | |||
| 26 | (W) (P) WINDOW RETAINER ZTS 331/31748 | 1 | $143.39 | |||
| 27 | SET SCREW M5x12 1315/0101Z | 1 | $0.44 | |||
| 28 | (P) THUMB SCREW 826/01147 | 1 | $6.94 | |||
| 29 | BLIND GROMMET DIA 25.4 2410/1111 | 1 | $3.49 | |||
| 30 | RUBBER BUMP STOP 160/01742 | 1 | $34.95 | |||
| 31 | NUT M6 THIN PLAIN (BR3) 1370/0102Z | 1 | $0.65 | |||
| 33 | WASHER JET ASSY (Short with elbow) 290/01200 | 1 | $75.68 | |||
| 34 | (P) COAT HOOK 123/03396 | 1 | $2.83 | |||
| 36 | BLANK RADIO APERTURE 336/B6341 | 1 | $4.51 | |||
| 37 | GROMMET 2410/1105 | 1 | $3.70 | |||
| 38 | GROMMET BLIND 2410/1102 | 1 | $5.75 | |||
| 39 | REF DWG DOOR SEAL STD cut at 4555mm 331/47902 331/43020 | 1 | $232.23 | |||
| 40 | EDGE PROTECTION TRIM - 415mm Long 926/04803 926/04801 | 1 | $107.72 | |||
| 41 | FLOCK SPRAYED CHANNEL 926/22902 | 1 | $18.10 | |||
| 42 | (W) (P) REF DWG EDGE SEAL DETAIL 926/06808 | 1 | $437.91 | |||
| 43 | (W) (P) FLOCK SPRAYED CHANNEL 926/22901 | 1 | $2.44 | |||
| 45 | NUT CAP M8 335/E1356 | 1 | $0.27 | |||
Showing 1 to 51 of 51 parts
Related Assemblies
-
DIAG-B2-2-2-397993 B2-2-2 CANOPY,AND MOUNTING
View Diagram -
DIAG-B2-2-4-397993 B2-2-4 CANOPY
View Diagram -
DIAG-B2-2-1-397993 B2-2-1 CAB, CAB MOUNTING
View Diagram
