| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (P) CIRCLIP 821/00318 | 1 | $0.68 | ||||
| (W) (P) HINGE PIN - CENTRAL. 162/03226 | 1 | $40.30 | ||||
| (W) (P) HINGE PIN - TOP/BOTTOM. 162/03227 | 1 | $26.72 | ||||
| (W) HINGE PIN 162/00097 | 1 | $63.35 | ||||
| BUSH 122/67479 | 1 | $42.20 | ||||
| MOULDING LOCK COVER 162/03085 | 1 | $101.30 | ||||
| PIN TENSION 3/32X3/4 2102/0309 | 1 | $0.44 | ||||
| RIVET NUT-M8 (BR3) 826/01103 | 1 | $1.46 | ||||
| SCREW.M5X20LG. 826/01406 | 1 | $10.69 | ||||
| THIN NUT (LH) (P814) 826/01107 | 1 | $2.83 | ||||
| WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | ||||
| 1 | (P) CLOSING BOLT 120/77505 | 1 | $16.84 | |||
| 2 | HANDLE EXTERIOR DOOR 162/03031 | 1 | $183.21 | |||
| 3 | INT DOOR HANDLE P54/42 476/19400 | 1 | $127.25 | |||
| 5 | (W) P42+P54 LOWER DOOR TBC GREY 161/00672 | 1 | $1,890.04 | |||
| 6 | (P) (W) (Pre-P)-CSK HD SCREW 826/01218 | 1 | $4.18 | |||
| 7 | CATCH SIDE WINDOW 160/00980 | 1 | $170.31 | |||
| 8 | BOLT M8x70 1315/3316Z | 1 | $2.23 | |||
| 10 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 13 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 14 | CAP-SCREW M_6 L-_20mm 1391/3205Z 1391/3205 | 1 | $0.85 | |||
| 16 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 18 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 19 | (P) (W) (W) (P) CHECK STRAP.DOOR 157/18003 | 1 | $59.52 | |||
| 19 | STRAP DOOR 993/99661 | 1 | $9.58 | |||
| 20 | WINDOW STAY(RELEASE PIN) 160/00472 | 1 | $155.81 | |||
| 30 | WASHER M_5 SPRING 1425/0005Z | 1 | $0.81 | |||
| 34 | PIN TENSION 2102/0606 | 1 | $3.11 | |||
| 37 | SCREW 4X1/4 826/00115 | 1 | $1.43 | |||
| 39 | (P) NUT M12 X 1.0 PLAIN (Re-520) 826/00622 | 1 | $9.49 | |||
| 50 | HINGE PLASTIC TLT 162/02708 | 1 | $45.99 | |||
| 51 | HINGE FIXING KIT 162/02709 | 1 | $47.10 | |||
| 53 | SOCKET SCREW M8x30 826/00853 | 1 | $6.76 | |||
| 54 | PULL HANDLE 162/02879 331/48328 | 1 | $12.47 | |||
| 59 | (W) (P) SLAM LOCK 826/00983 | 1 | $199.72 | |||
| 60 | WASHER 2BA 1414/0011Z | 1 | $0.09 | |||
| 61 | SLAM LOCK LEVER TLT PS888 157/41200 | 1 | $80.02 | |||
| 63 | (P) PLASTIC HANDWHEEL 157/18004 | 1 | $20.62 | |||
| 64 | SET SCREW M6x12 1315/0201Z | 1 | $0.62 | |||
| 65 | (W) 7/16 MED WASHER(KANBAN) 1411/0004Z | 1 | $1.95 | |||
| 68 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 69 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 70 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 72 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 73 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 74 | SET-SCREW M_5 L-25mm 1315/0107Z | 1 | $0.85 | |||
| 75 | 'EDGE SEAL SPECIFICATION 50MTR Rll -XUSE 926/06800 | 1 | $32.26 | |||
| 80 | SEAL 162/03041 | 1 | $13.75 | |||
| 81 | SEAL HANDLE TAIL 162/03042 | 1 | $4.08 | |||
| 82 | NUT CAP M8 335/E1356 | 1 | $0.27 | |||
| 87 | STOP 160/00782 | 1 | $52.85 | |||
| 88 | NUT M_5 STD PLAIN 1370/0001Z | 1 | $0.15 | |||
Showing 1 to 52 of 52 parts
Related Assemblies
-
DIAG-B2-2-1-400852-13015636 B2-2-1 DOOR AND COMPONENTS inc EXTERIOR FITTINGS
View Diagram -
DIAG-B2-2-2-400852 B2-2-2 DOOR AND COMPONENTS inc EXTERIOR FITTINGS
View Diagram -

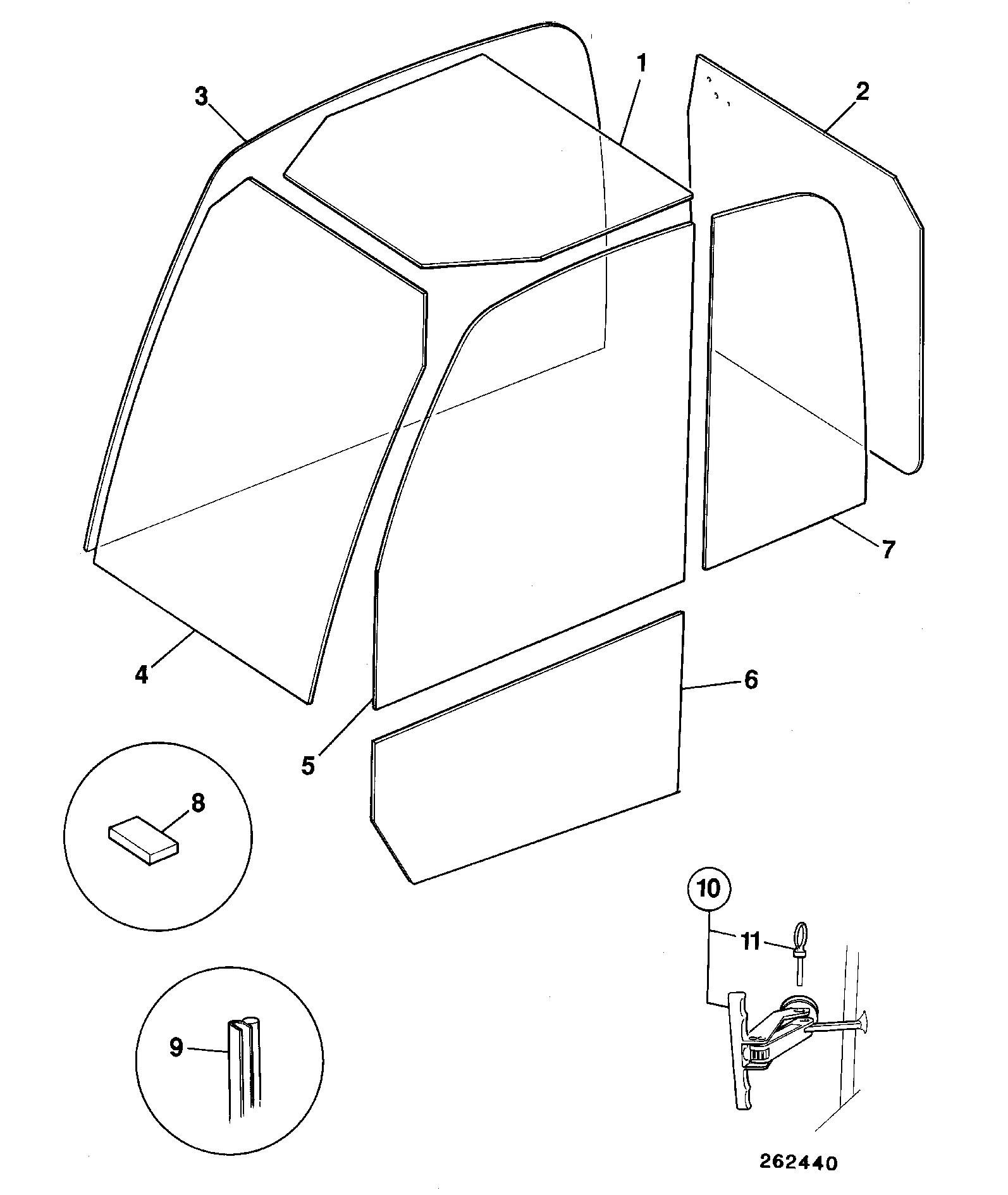

DIAG-B2-1-10-400852 B2-1-10 CAB GLAZING CLEAR & GREEN TINT
View Diagram
