Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Belt 478/20157 | 1 | $284.95 | ||||
| Cover 40/910267 | 1 | $239.87 | ||||
| COVER 40/910277 | 1 | $1.64 | ||||
| Kit seatbelt 40/910951 | 1 | $501.00 | ||||
| SCREW 40/910258 | 1 | $1.29 | ||||
| 2 | Cushion backrest 40/910769 | 1 | $655.72 | |||
| 3 | CUSHION, SEAT ASSY 40/910770 | 1 | $593.38 | |||
| 4 | Screw 40/910625 | 1 | $1.26 | |||
| 5 | HANDLE 40/910112 | 1 | $24.29 | |||
| 6 | NUT, SEAT HANDLE 478/20117 | 1 | $0.50 | |||
| 7 | GRAMMER SEAT HEADREST 40/910771 | 1 | $469.29 | |||
| 12 | WASHER 40/910114 | 1 | $29.11 | |||
| 14 | COVER -BACKREST LH 40/910228 40/910949 | 1 | $57.57 | |||
| 15 | KIT 40/910229 | 1 | $128.19 | |||
| 16 | Spring 40/911142 | 1 | $21.93 | |||
| 19 | SCREW, M8 x 40 40/910232 | 1 | $2.08 | |||
| 20 | NUT 478/20044 | 1 | $0.81 | |||
| 21 | LEVER 40/910233 | 1 | $73.71 | |||
| 22 | HANDLE 40/910234 | 1 | $12.85 | |||
| 23 | PLATE 40/910235 | 1 | $30.86 | |||
| 24 | SCREW M6 X 10 40/910236 | 1 | $13.22 | |||
| 26 | BACK REST 40/910275 | 1 | $613.50 | |||
| 27 | BUSHING 40/910245 | 1 | $5.13 | |||
| 28 | Bracket retainer h 40/910246 | 1 | $30.84 | |||
| 29 | TUBE 40/910247 | 1 | $79.74 | |||
| 31 | SCREW M8 X 18 40/910249 | 1 | $4.23 | |||
| 32 | KIT ADJUSTER 40/910252 | 1 | $187.69 | |||
| 36 | KIT-SLIDE RAILS 40/910111 | 1 | $655.06 | |||
| 37 | SCREW 478/20153 | 1 | $11.19 | |||
| 45 | Bracket 40/910265 | 1 | $42.99 | |||
| 51 | Stop 478/20163 | 1 | $6.14 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-

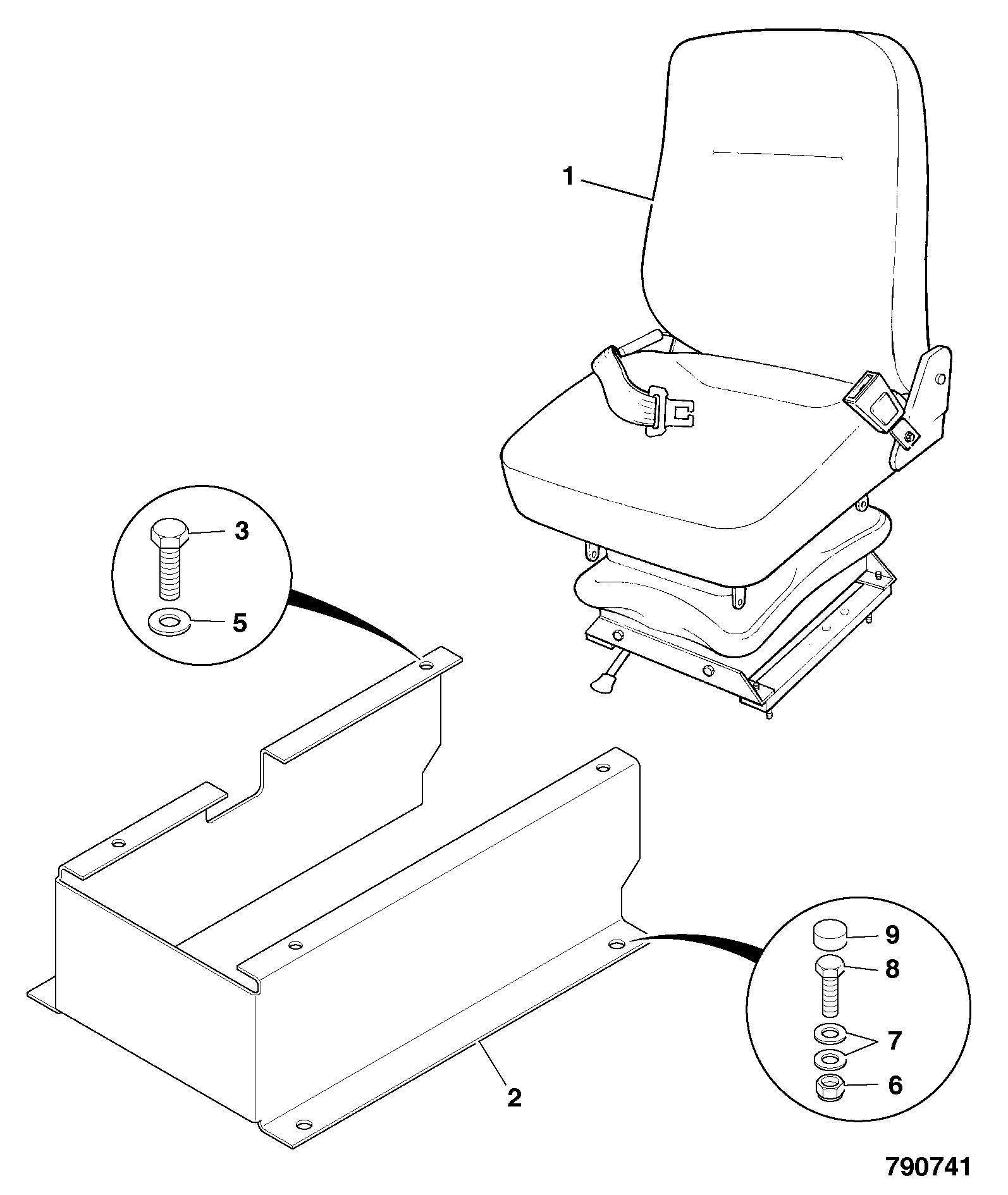

DIAG-B2-16-1-404936 B2-16-1 SEAT, HI SPEC AIR SUSPENSION/HEAT FABRIC, INSTALLATION
View Diagram -
DIAG-B2-16-3-404936 B2-16-3 SEAT AIR SUSPENSION/HEAT FABRIC, LOWER COMPONENTS, 40/911023
View Diagram -

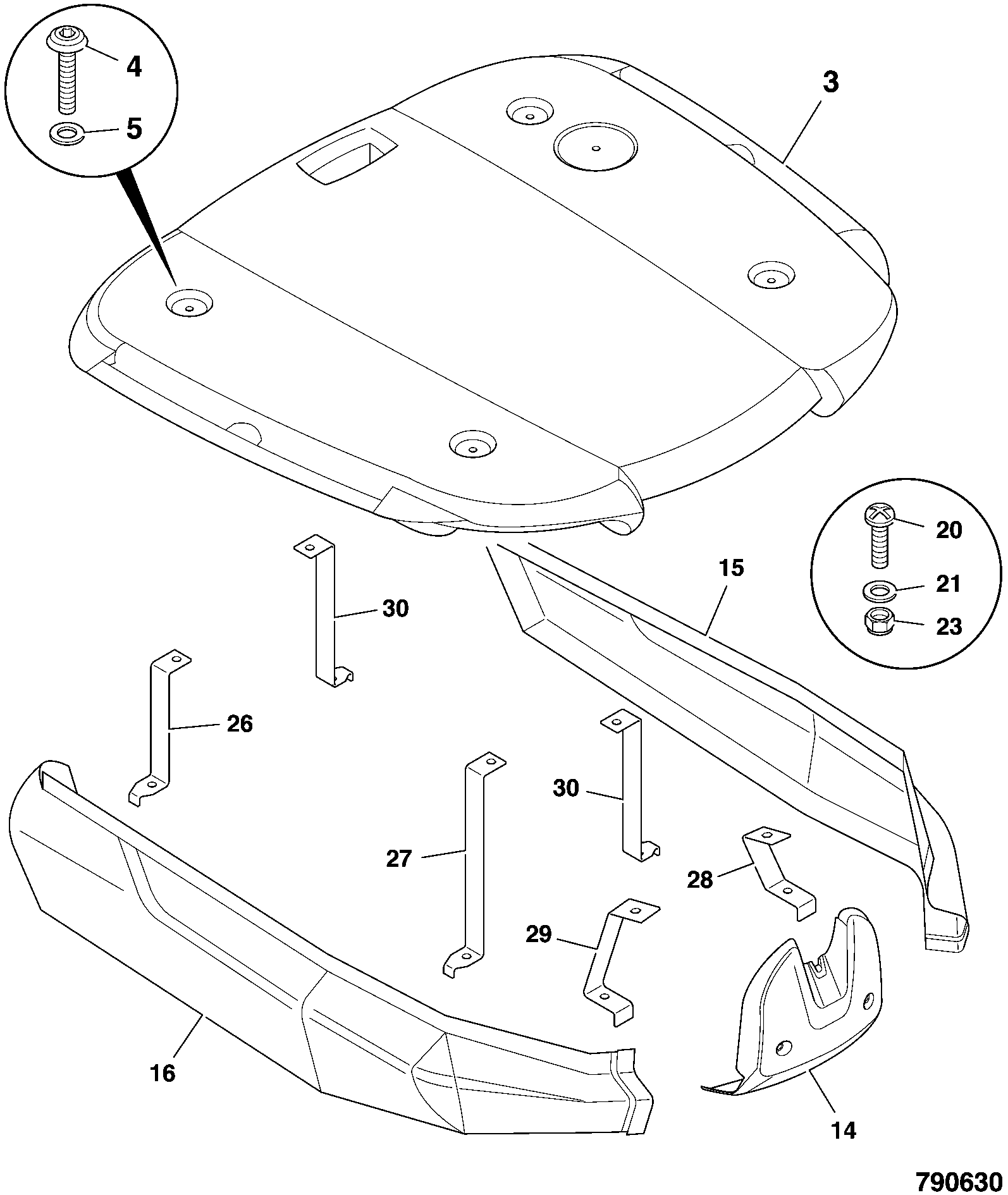

DIAG-B2-13-1-404936 B2-13-1 ROOF AND SKIRTS CAB
View Diagram
