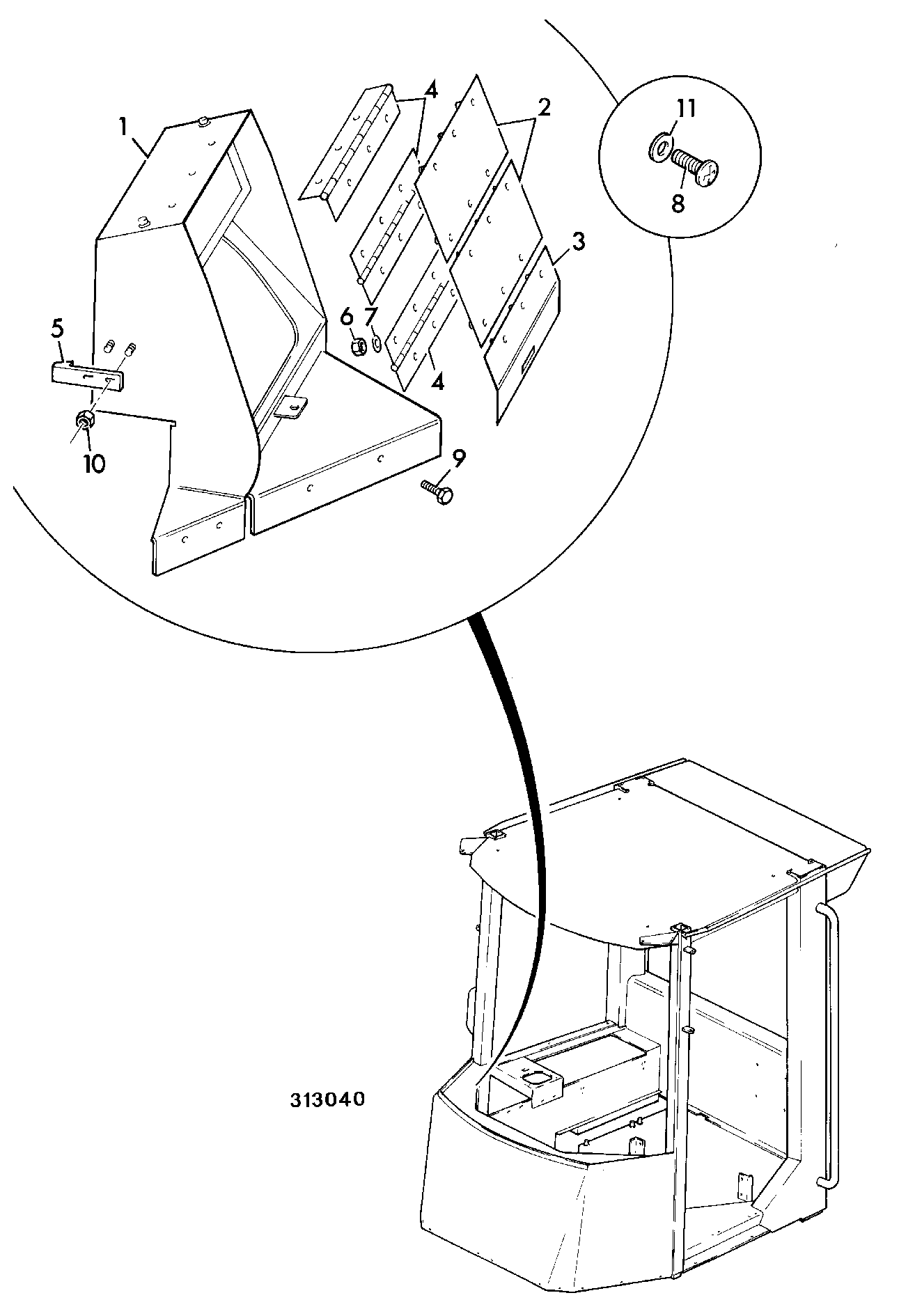

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | FRONT SKIRT 265/01710 346/00022 | 1 | $271.13 | |||
| 2 | LEFT SKIRT TRIMMING 265/02163 346/00039 | 1 | $647.41 | |||
| 3 | RIGHT SKIRT TRIMMING 265/02706 346/00041 | 1 | $615.84 | |||
| 4 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 5 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 6 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 7 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 8 | BRACKET MOUNTING 265/02143 | 1 | $11.99 | |||
| 9 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $2.82 | |||
| 10 | NUT M20 THIN PLAIN 1370/0702Z | 1 | $2.57 | |||
Showing 1 to 10 of 10 parts
