Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

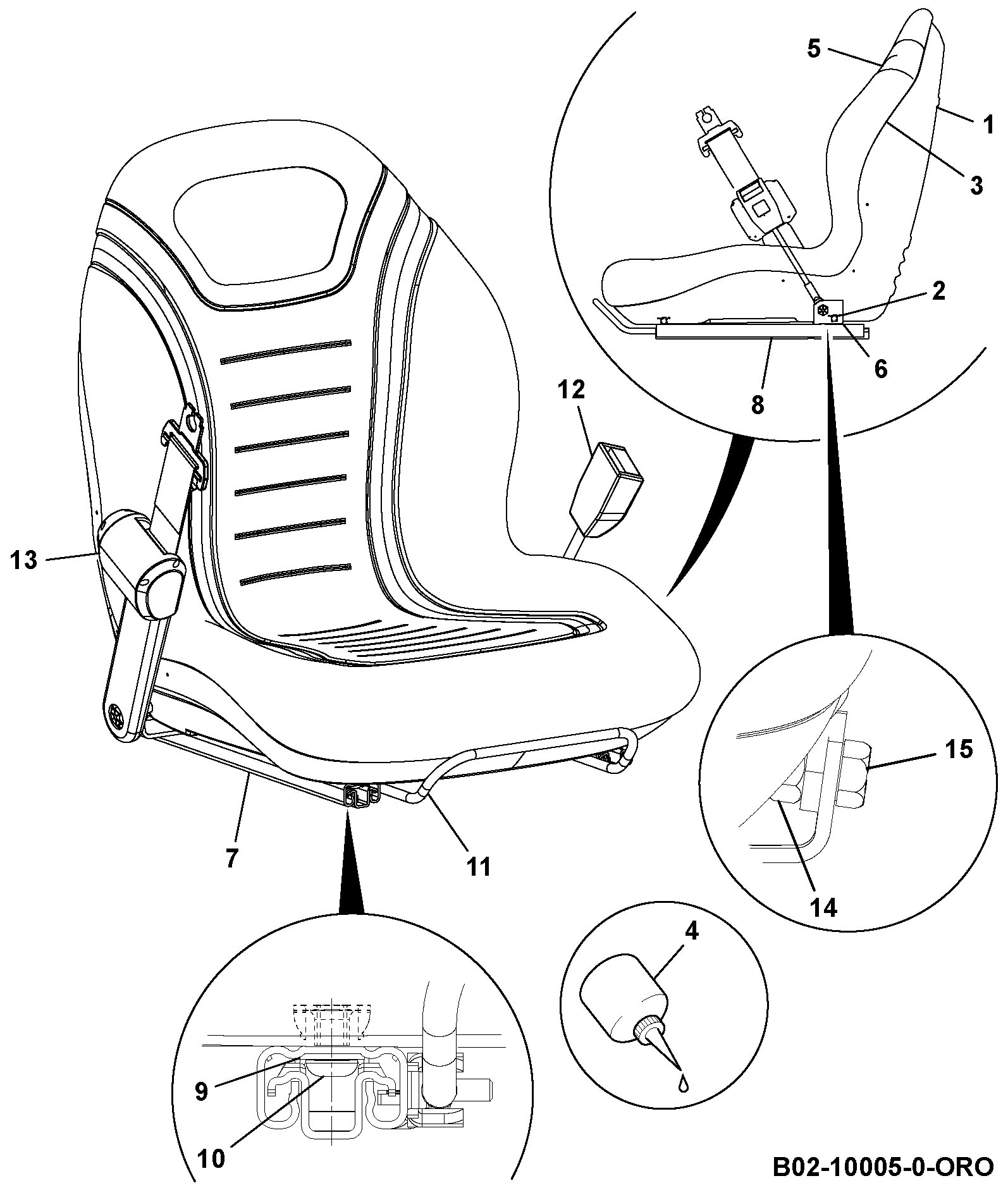

| 801X STATIC SEAT VINYL 40/910871 40/910811 | 1 | $562.82 | ||||
| Adjuster latching 40/910873 | 1 | $389.76 | ||||
| Adjuster non latch 40/910872 | 1 | $80.55 | ||||
| Capscrew hex.flang 40/910837 | 1 | $37.06 | ||||
| Cover Vinyl Tip 40/906812 | 1 | $115.18 | ||||
| Frame 40/910823 | 1 | $982.70 | ||||
| Nut hex.locknut 40/910839 | 1 | $8.12 | ||||
| NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | ||||
| Seat latching adjuster ki 40/904001 400/02330 | 1 | $181.48 | ||||
| Spacer flat 40/910828 | 1 | $119.43 | ||||
| Stud Protection 40/906814 | 1 | $16.25 | ||||
| WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | ||||
| 1 | SECURON SEATBELT 40/902200 335/E0373 | 1 | $208.34 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

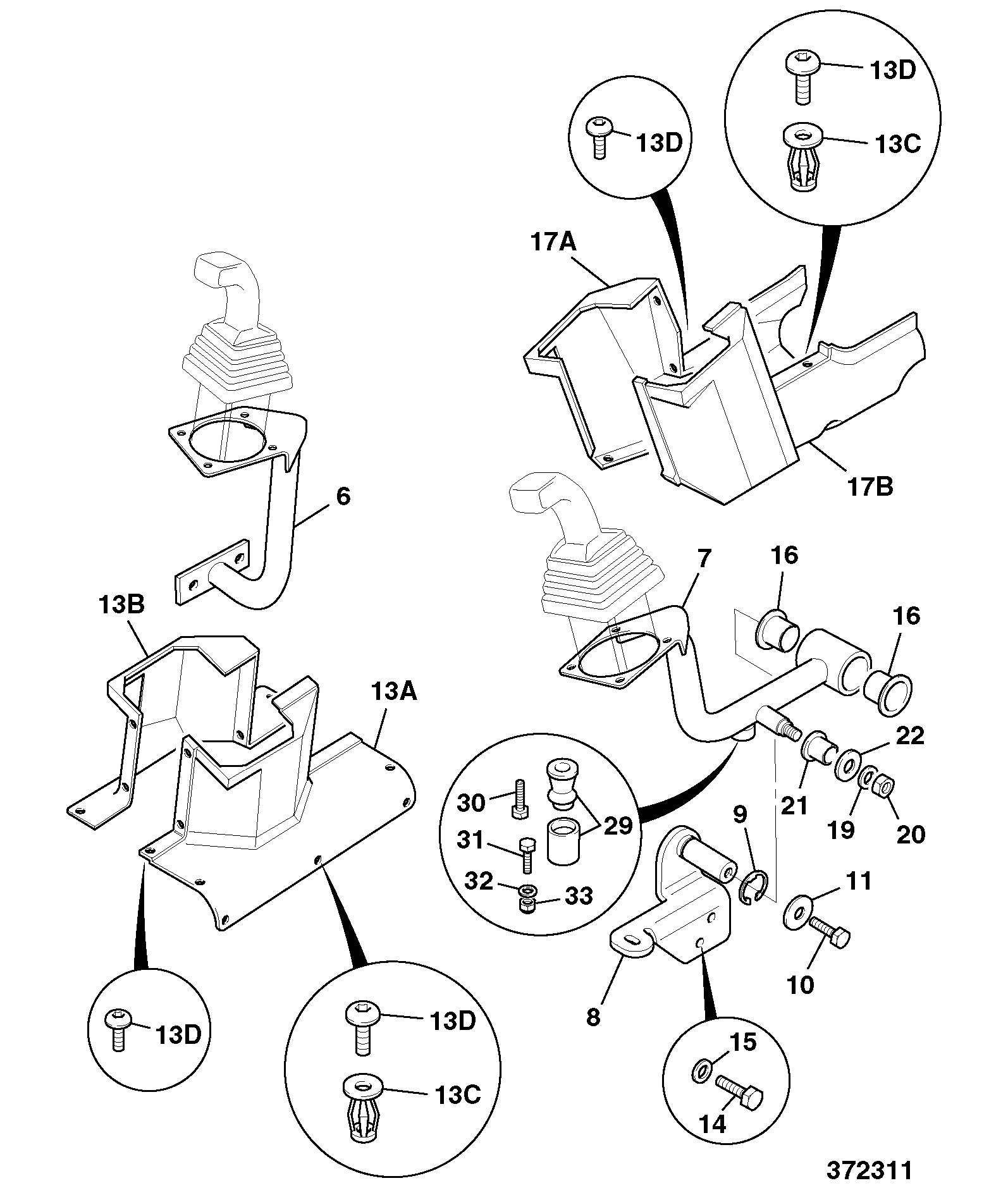

DIAG-B2-11-1-395430 B2-11-1 CONTROL CONSOLES SERVO
View Diagram -
DIAG-B2-12-2-395430 B2-12-2 SEAT VINYL STATIC
View Diagram -

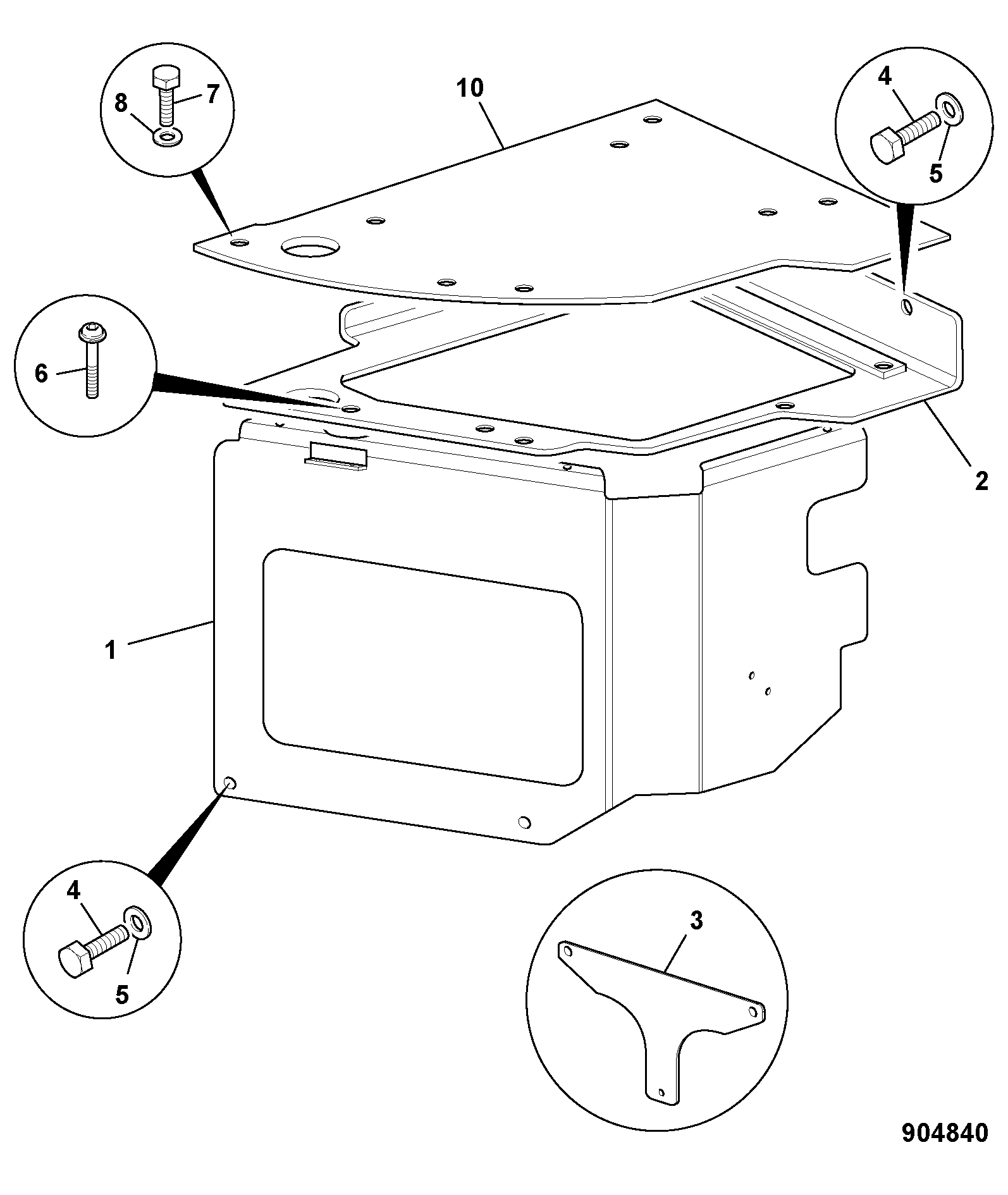

DIAG-B2-10-2-395430 B2-10-2 SEAT BASE CAB/CANOPY
View Diagram
