Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | Backrest 478/20124 | 1 | $180.18 | |||
| 8 | KIT-LUMBAR SUPPORT 478/20125 | 1 | $3,586.76 | |||
| 15 | NUT 478/20044 | 1 | $0.81 | |||
| 31 | Lever 478/20131 | 1 | $176.94 | |||
| 34 | Cushion seat base 478/20130 40/910271 | 1 | $740.88 | |||
| 38 | SPINDLE 478/20134 | 1 | $103.37 | |||
| 40 | Pin grooved 478/20136 | 1 | $4.17 | |||
| 41 | Screw 478/20137 | 1 | $0.99 | |||
| 42 | Washer 478/20092 | 1 | $0.18 | |||
| 43 | Armrest assembly 478/20140 | 1 | $327.13 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

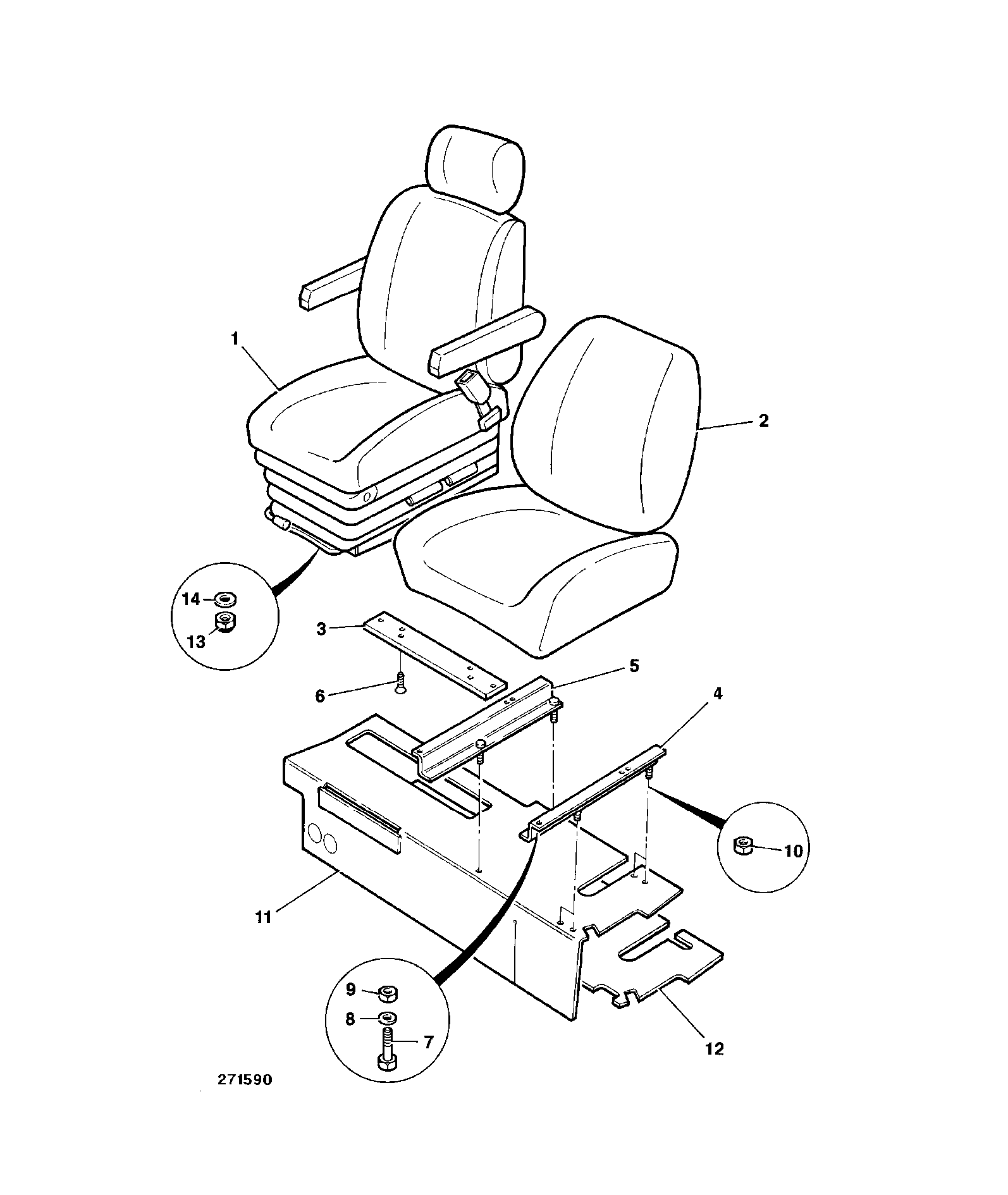

DIAG-B2-11-1-393521 B2-11-1 SEATS, INSTALLATION
View Diagram -

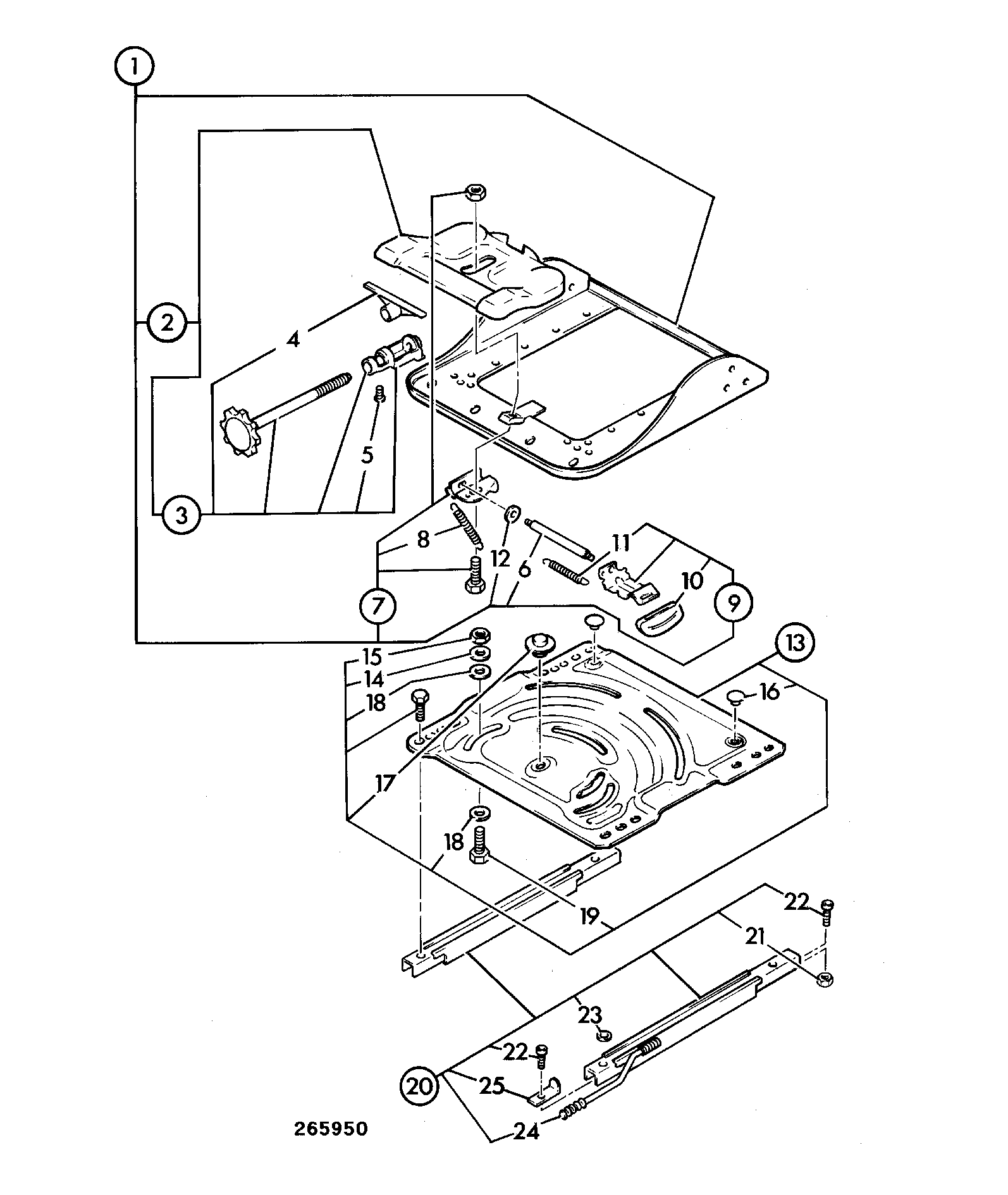

DIAG-B2-11-3-393521 B2-11-3 SEAT, SUSPENSION (FIG 2)
View Diagram -

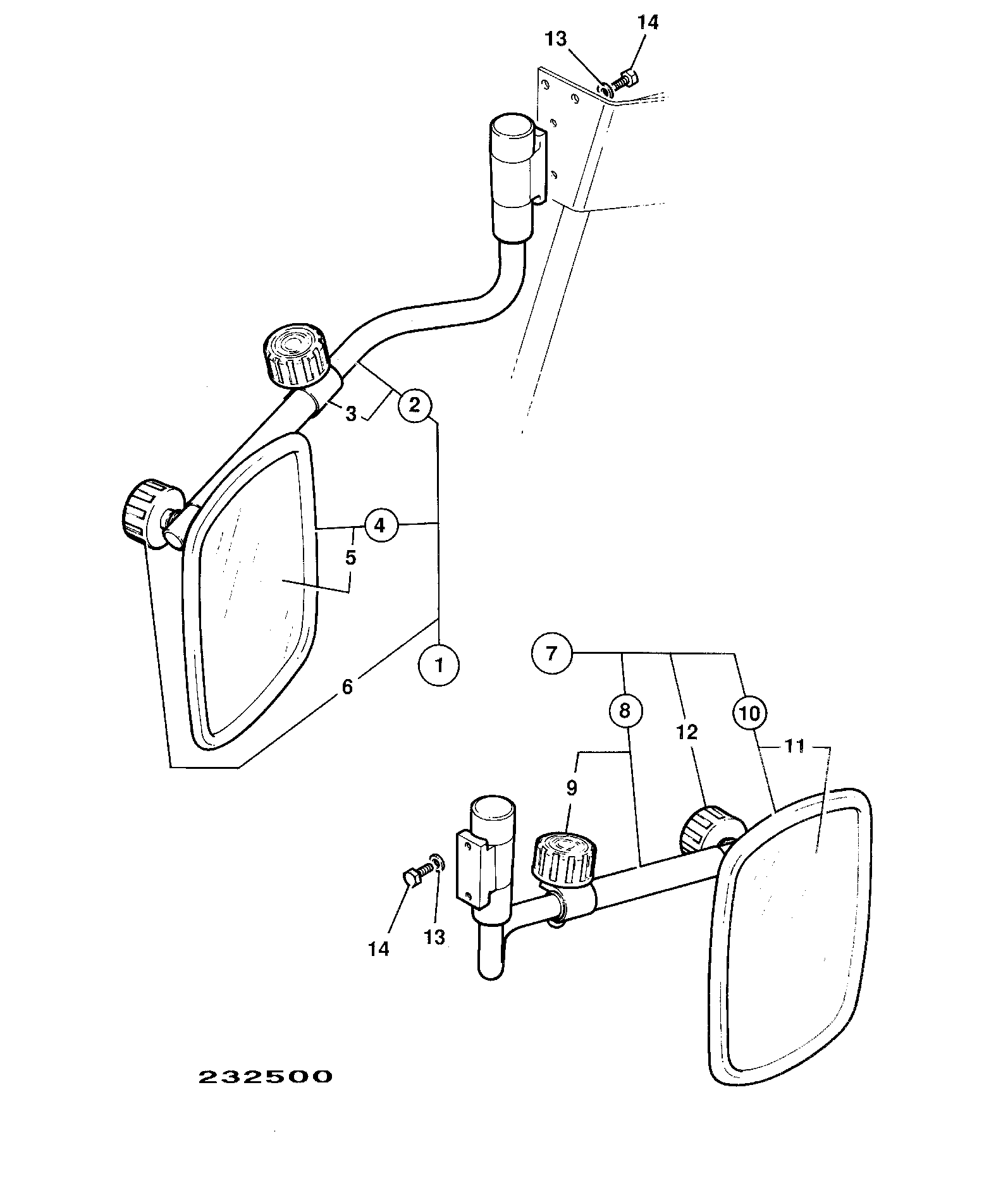

DIAG-B2-10-2-393521 B2-10-2 MIRRORS EXTERNAL
View Diagram
