B2-0-10 CAB ASSEMBLIES STANDARD CAB ON LOW MOUNTS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	a00/L SIX SPEED SE 817/16581	1	AVAILABLE TO ORDER	$20.60	Quantity
	GROMMET 2410/0105	1	AVAILABLE TO ORDER	$4.77	Quantity
	SCREW 4X1/4 826/00115	1	AVAILABLE TO ORDER	$1.43	Quantity
1	(W) (P) ABI STD CAB P120 333/P9481	1	AVAILABLE TO ORDER	$23,162.41	Quantity

Showing 1 to 4 of 4 parts

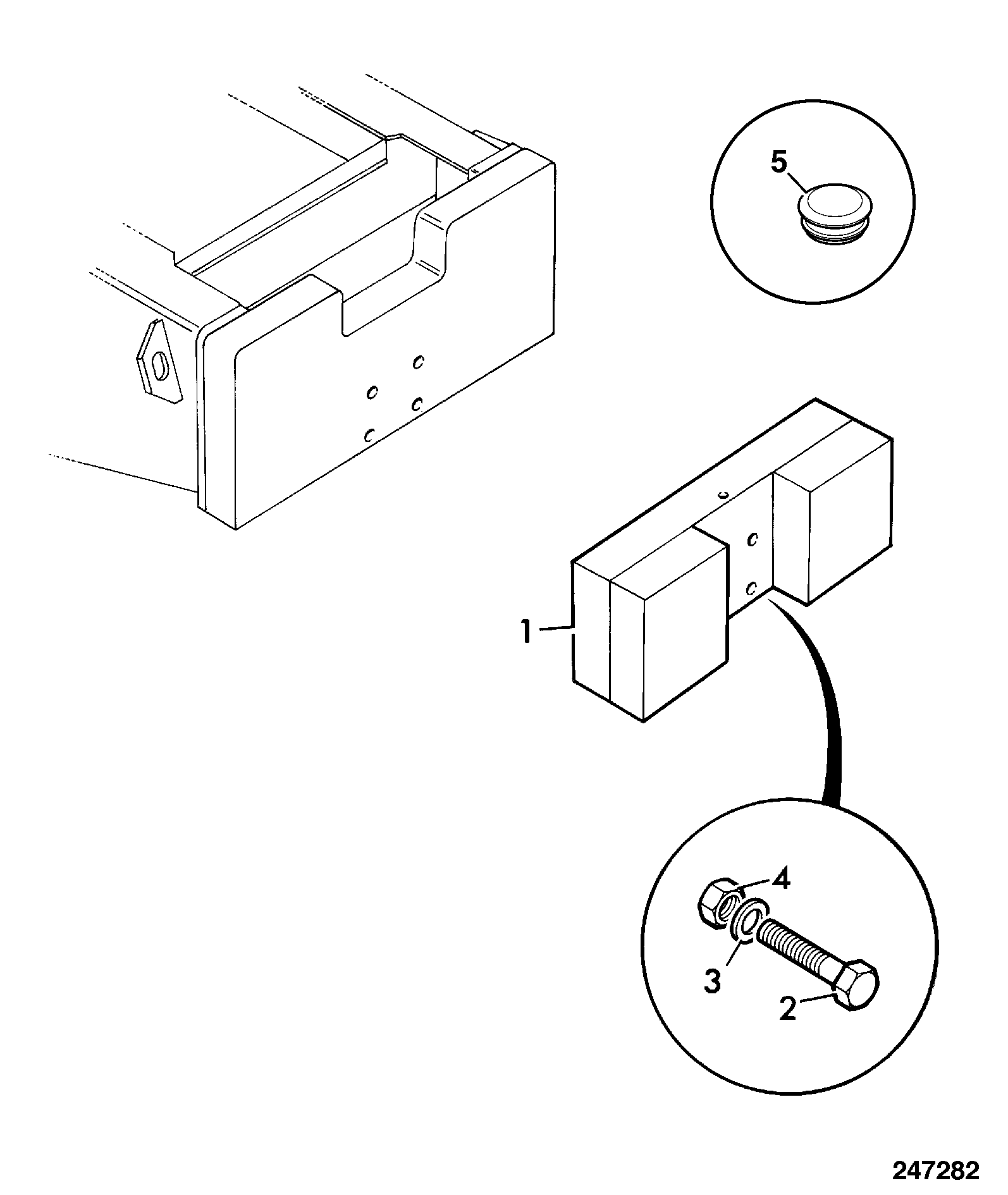

DIAG-B1-26-1-404564 B1-26-1 COUNTERWEIGHT 1180KG. WITH TOW HITCH
View Diagram

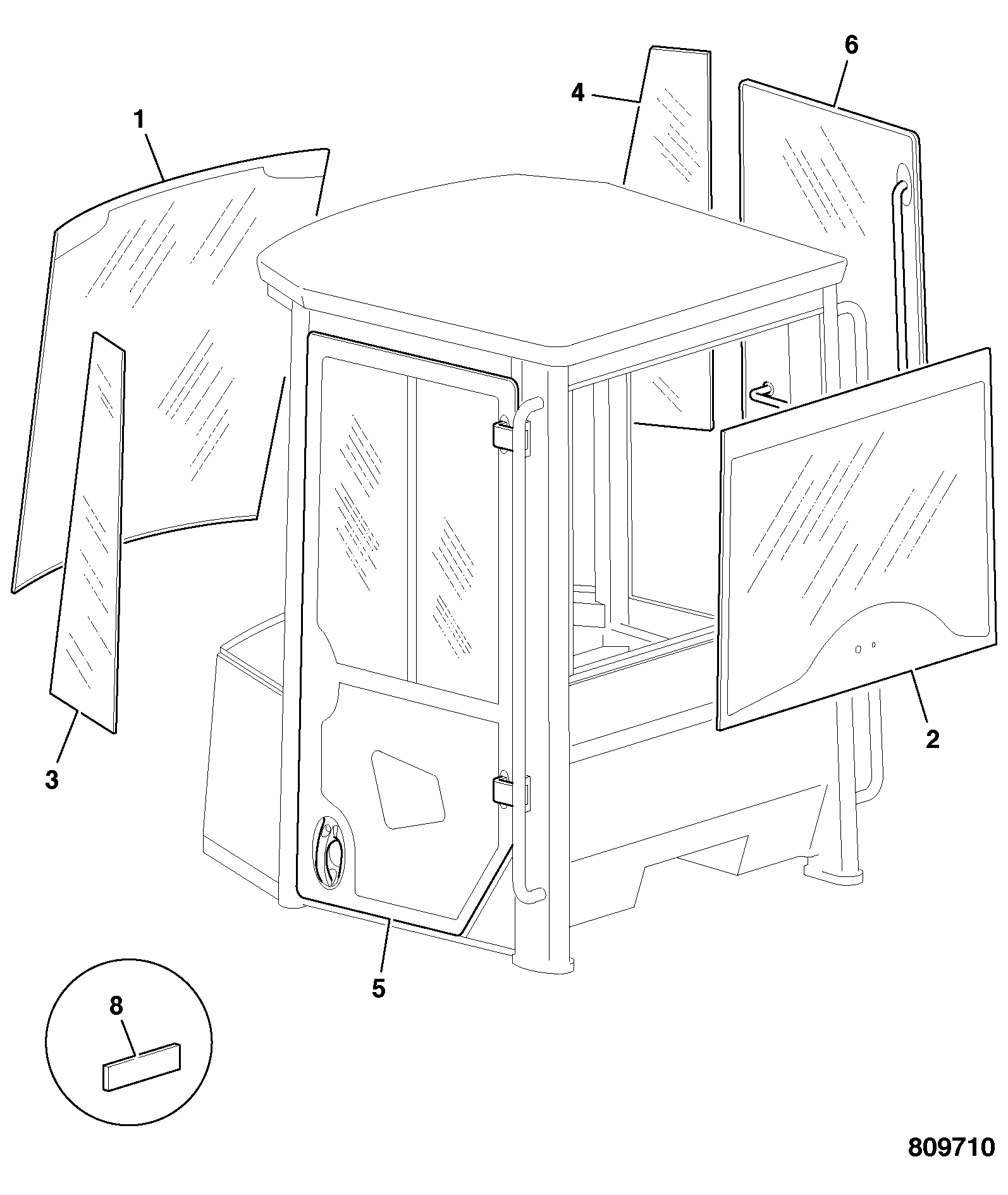

DIAG-B2-2-1-404564 B2-2-1 CAB GLAZING LOW ROOF
