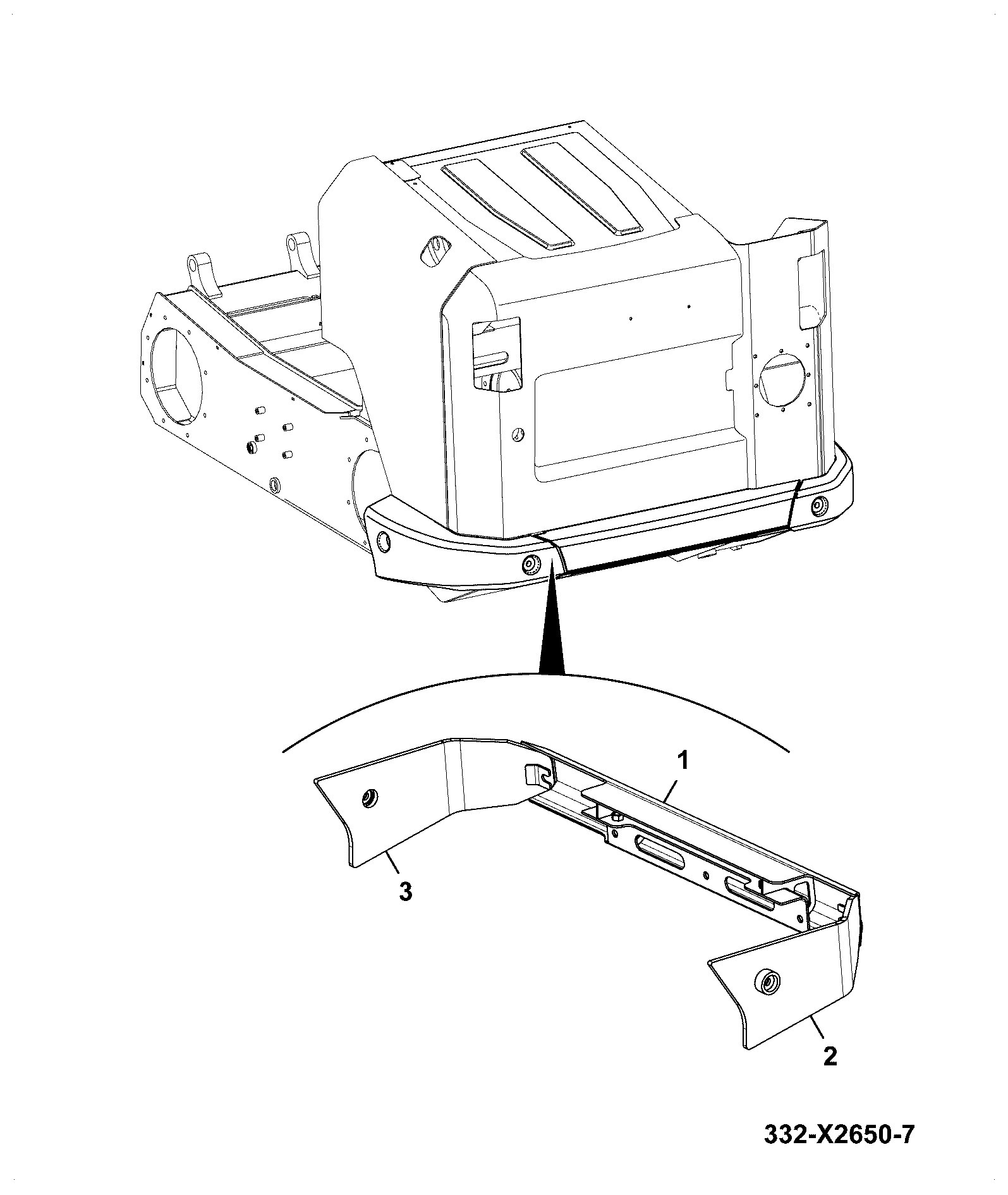

B190-5-1 OTHER BODYWORK ITEMS RECIRCULATION SEALS,ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	EDGE SEAL 725mm LONG 926/19726 401/A7309	1	AVAILABLE TO ORDER	$76.92	Quantity
3	SEAL - RECIRC EXIT - LH 332/L6476	1	AVAILABLE TO ORDER	$18.07	Quantity
4	SEAL - RECIRC EXIT - RH 332/L6475	1	AVAILABLE TO ORDER	$24.09	Quantity
5	SEAL - RECIRC EXIT - TOP 332/L6477	1	AVAILABLE TO ORDER	$17.27	Quantity

Showing 1 to 4 of 4 parts
