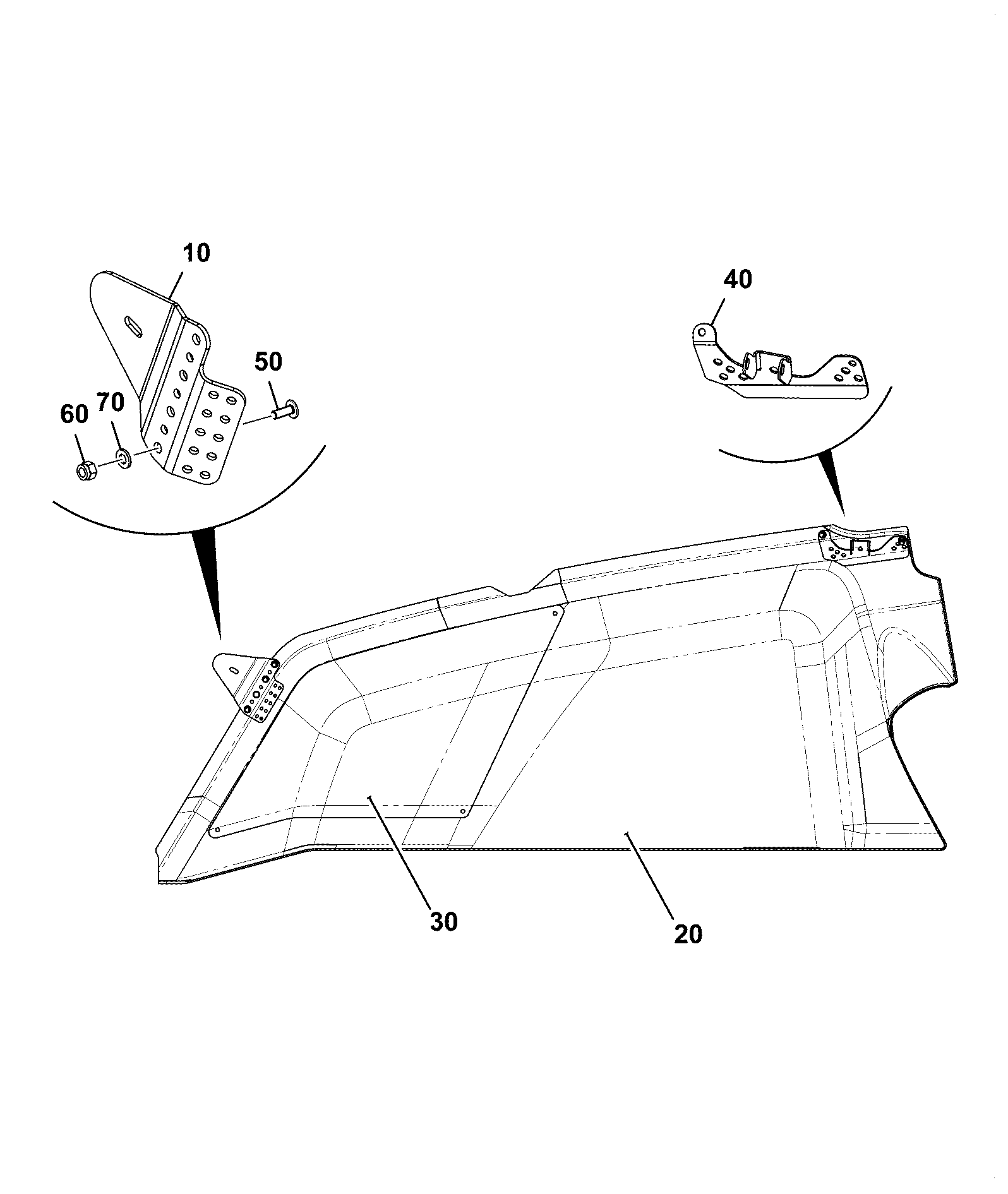

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | SIDE PANEL LH ABI 334/W2772 | 1 | $1,822.53 | |||
| 20 | SIDE PANEL RH ABI 401/J8542 | 1 | $929.13 | |||
| 30 | BUFFER (CONICAL) 477/00586 | 1 | $8.46 | |||
| 40 | Boss 333/S9369 | 1 | $10.02 | |||
| 50 | RIVET NUT M6 826/01767 | 1 | $8.70 | |||
| 60 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 70 | ROLLER 332/W3395 | 1 | $2.96 | |||
| 80 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 100 | P148 RH BONNET INSULATION 335/H5012 | 1 | $26.43 | |||
| 110 | COOLING PACK PLATE 334/S0442 | 1 | $24.52 | |||
| 130 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 140 | SET SCREW M6x10 1315/0200D | 1 | $3.40 | |||
| 150 | M6x30 BUTTON HEAD 480hr B 334/L6709 | 1 | $1.36 | |||
| 160 | DOOR RETAINER-RUBBER 826/11394 | 1 | $30.69 | |||
| 170 | DOOR RETAINER male common (P710-T) 826/11312 334/E9346 | 1 | $1.91 | |||
| 180 | WASHER 9x26x5 823/10639 | 1 | $8.83 | |||
| 190 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

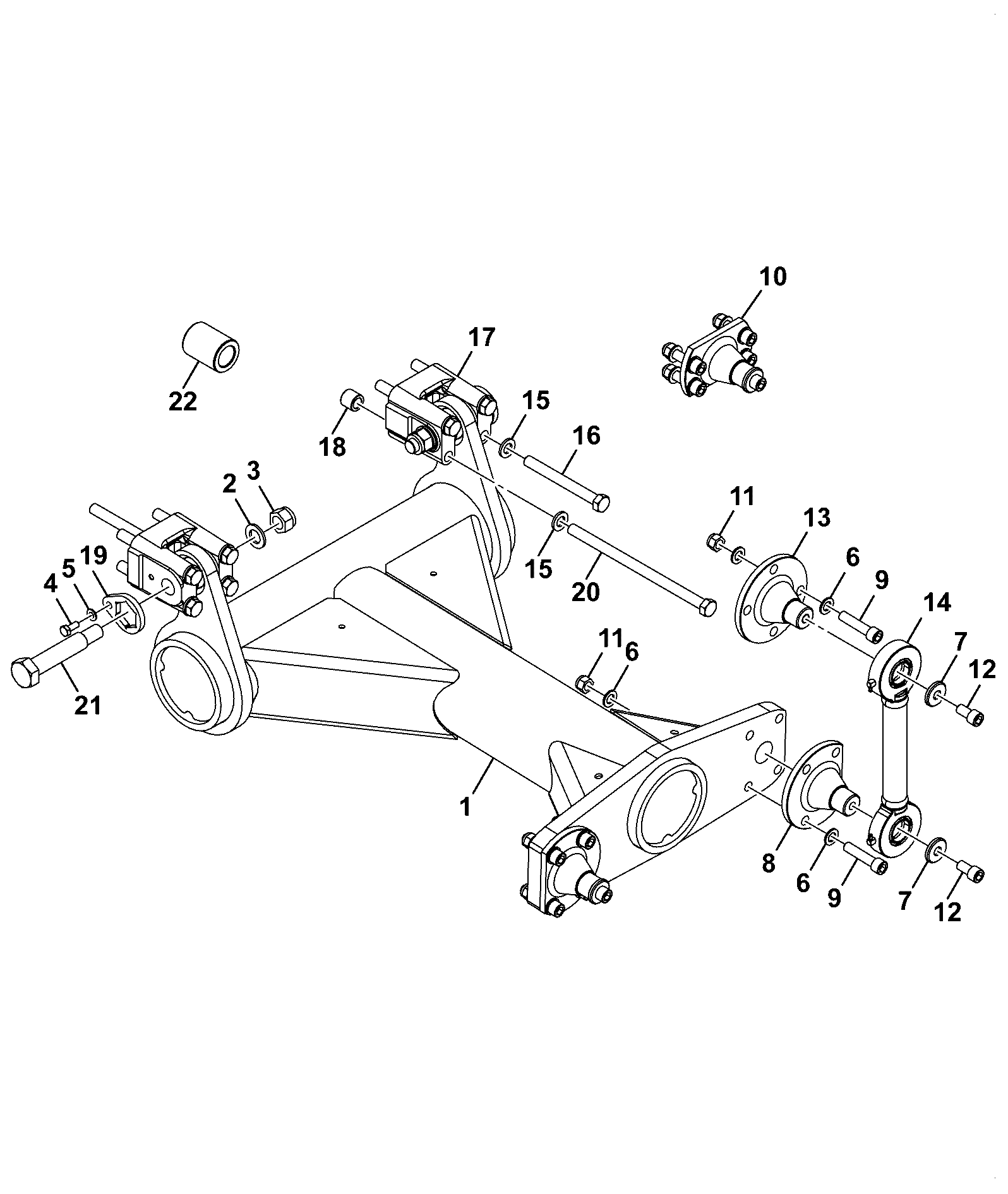

DIAG-B190-300-1-393665 B190-300-1 OTHER BODYWORK ITEMS TORSION ASSIST MECHANICAL
View Diagram -
DIAG-B190-310-1-393665 B190-310-1 OTHER BODYWORK ITEMS PANELS SIDE RH
View Diagram -

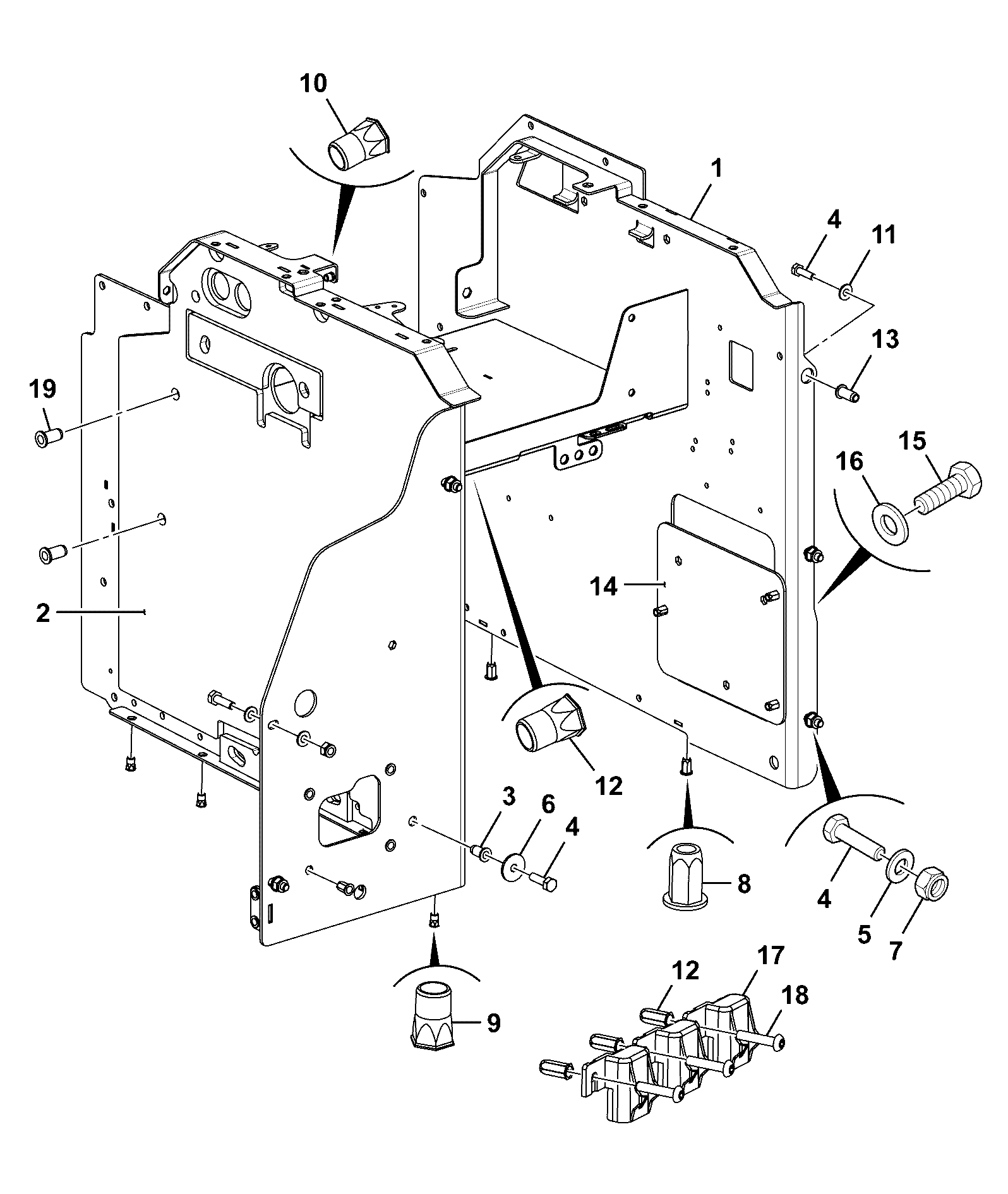

DIAG-B190-295-5-393665 B190-295-5 OTHER BODYWORK ITEMS FRAME PANNIER ASSEMBLY RH
View Diagram
