Scroll to zoom Click a part # to view details

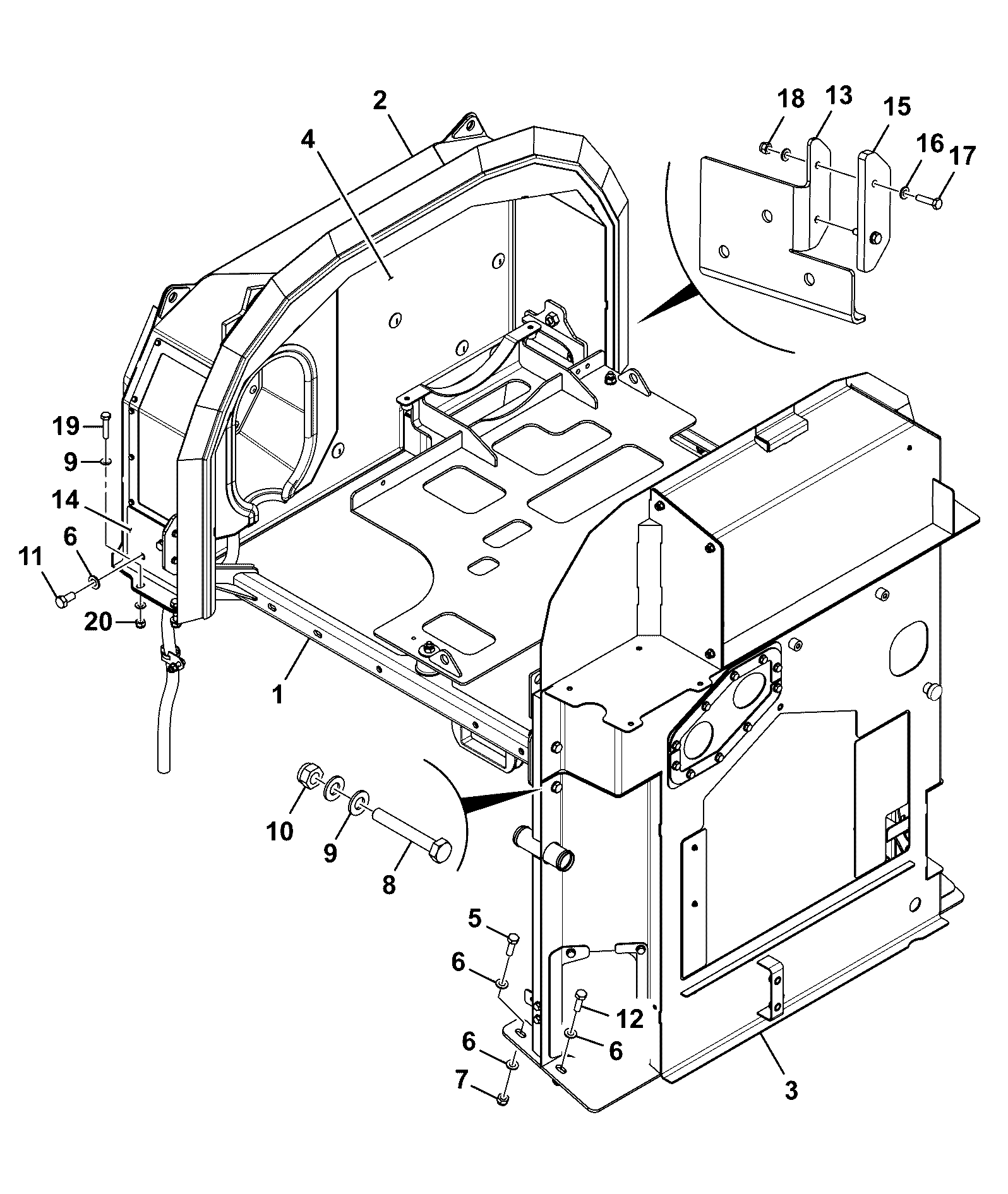

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA REAR BULKHEAD 400/U5428 | 1 | $5,374.85 | |||
| 2 | WA REAR BULKHEAD UPPER 401/F6285 | 1 | $218.07 | |||
| 3 | CLAMPING PLATE 400/U3378 | 1 | $90.76 | |||
| 4 | CLAMPING PLATE 400/W2054 | 1 | $37.03 | |||
| 5 | SEAL REAR BULKHEAD 435S/4 400/Y8732 | 1 | $14.37 | |||
| 6 | SEAL CLAMPING PLATE 400/Y8736 | 1 | $42.13 | |||
| 7 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 8 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 11 | SET SCREW M8 x 55 G8.8 1315/0313D | 1 | $3.02 | |||
| 12 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 13 | 1UMP STOP 400/B9363 | 1 | $5.19 | |||
| 14 | SUPPORT PLATE 400/Z4304 | 1 | $20.82 | |||
| 15 | BOLT M12x30 1315/3508D | 1 | $1.91 | |||
| 16 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 17 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 18 | HANDLE BLACK POLYAMIDE 162/00643 | 1 | $8.80 | |||
| 19 | M6x60 BUTTON HEAD SCREW 826/11673 | 1 | $25.23 | |||
| 20 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 21 | WA CLAMP BRACKET DEF HOSE 400/V4241 | 1 | $38.85 | |||
| 22 | GROMMET BLIND 44.4 DIA x 3.5 THK 2410/1315 2410/1115 | 1 | $85.24 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-B190-125-1-404805 B190-125-1 OTHER BODYWORK ITEMS BELLY GUARDS ASSEMBLY REAR
View Diagram -
DIAG-B170-95-1-404805 B170-95-1 BONNET/ ENGINE COVERS/ GRILLES ASSEMBLY UNDER BONNET
View Diagram -

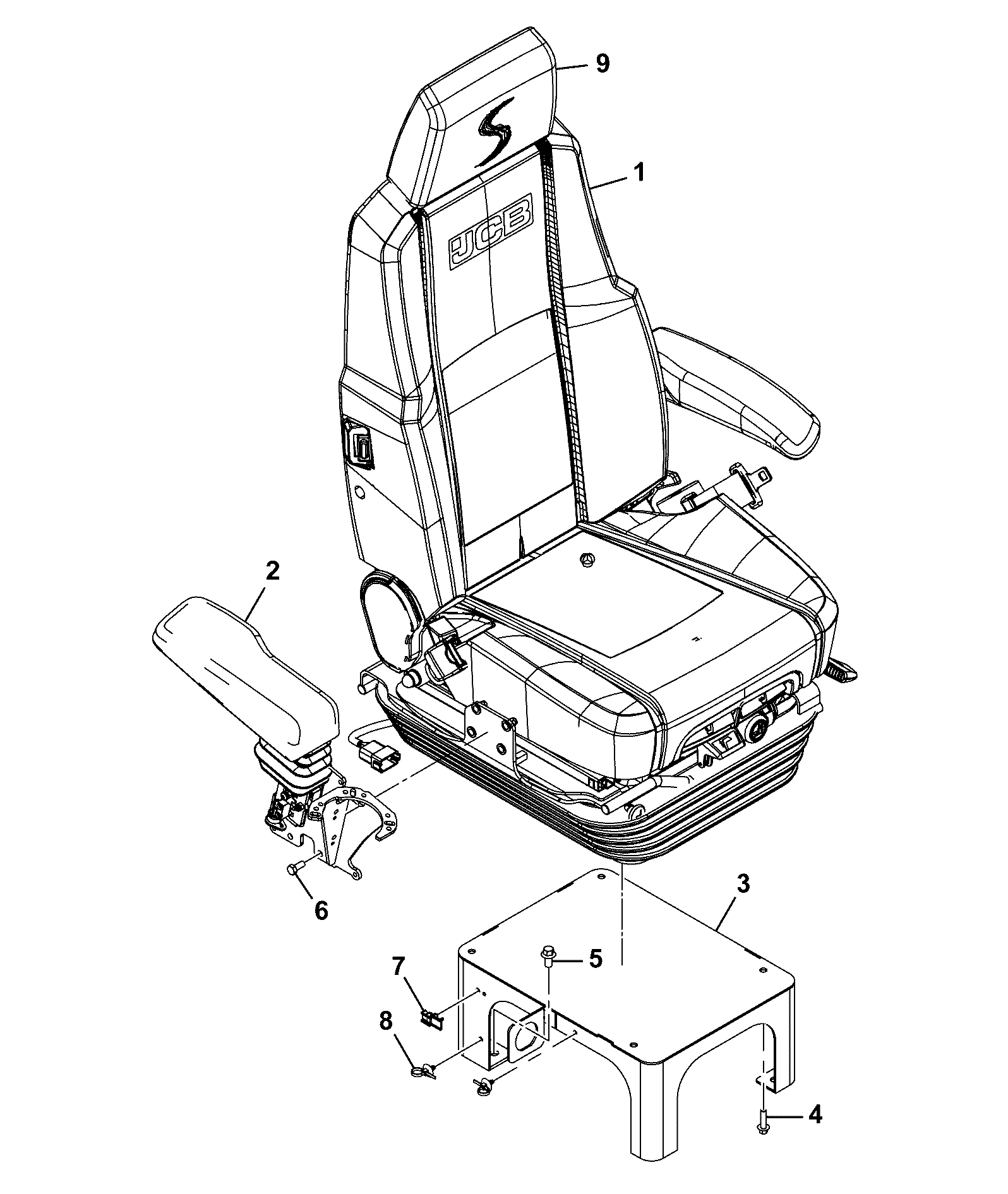

DIAG-B260-45-1-404805 B260-45-1 SEATS SEAT ASSEMBLY SUPER DELUXE
