B190-115-1 OTHER BODYWORK ITEMS ASSEMBLY PRE CLEANER,VOLVO,TIER 4,GREY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FILTER PRE CLEANER 333/X3414	1	AVAILABLE TO ORDER	$143.14	Quantity
2	PRE-CLEANER INTAKE CVR VL 335/C5074	1	AVAILABLE TO ORDER	$488.60	Quantity
4	SIKA ADHESIVE 552 4103/3200	1	AVAILABLE TO ORDER	$184.76	Quantity

Showing 1 to 3 of 3 parts

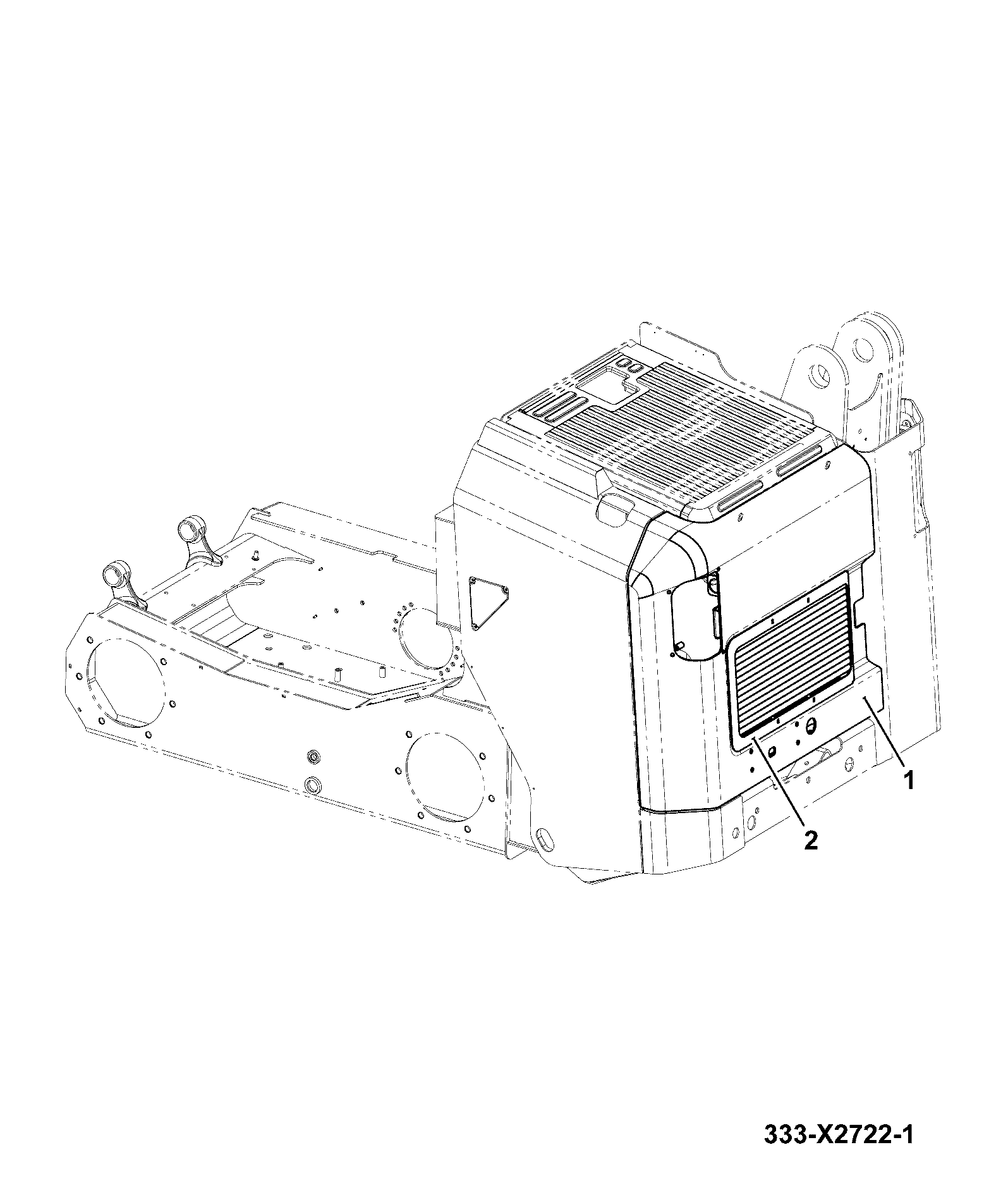

DIAG-B190-110-1-395342 B190-110-1 OTHER BODYWORK ITEMS ASSEMBLY COOLING PACK,GRILL,VOLVO,TIER 4,GREY
View Diagram

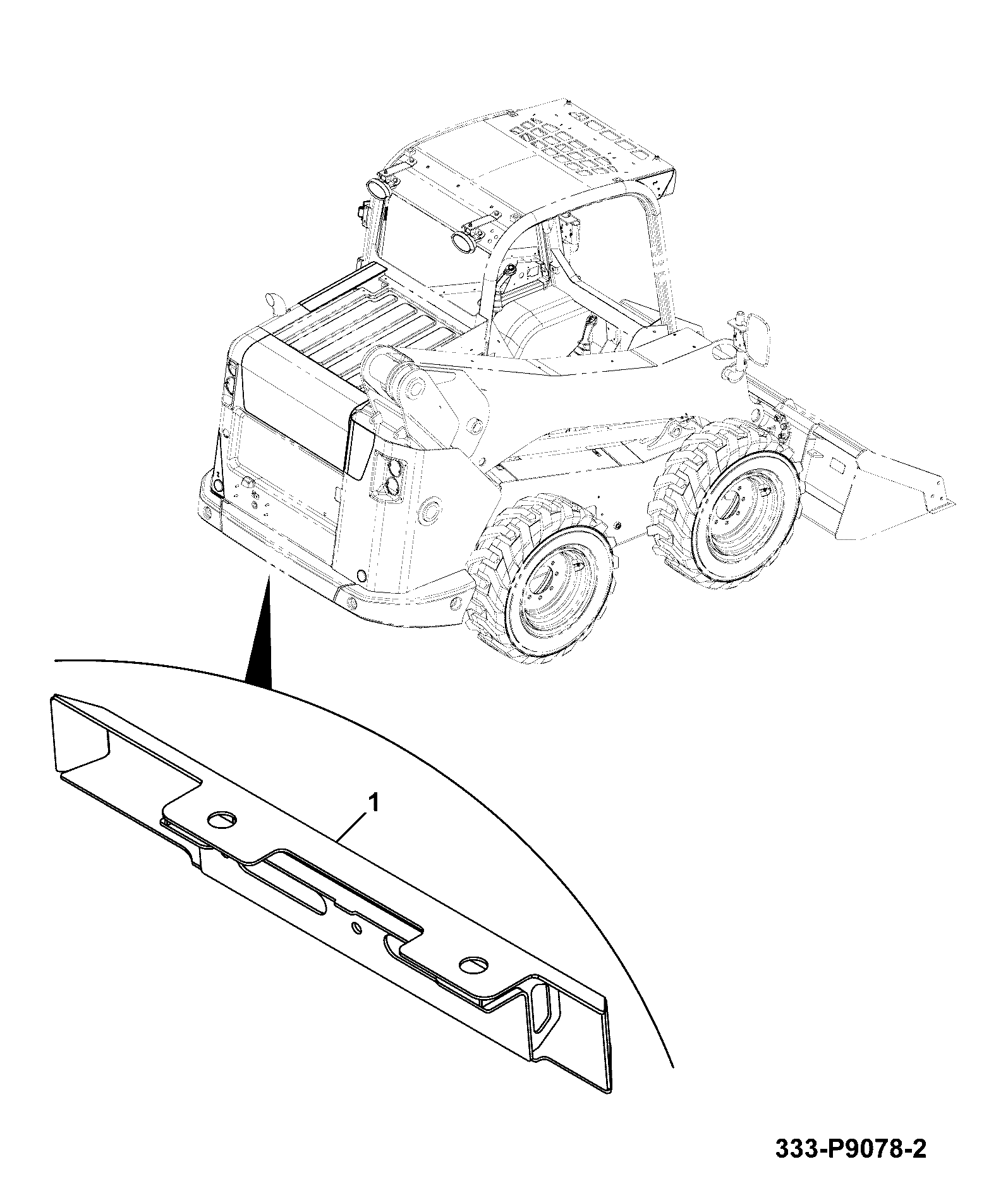

DIAG-B180-105-1-395342 B180-105-1 COUNTER WEIGHTS FITTINGS & MOUNTINGS MC60,70,85,95C/MCT70C,TIER 4
View Diagram

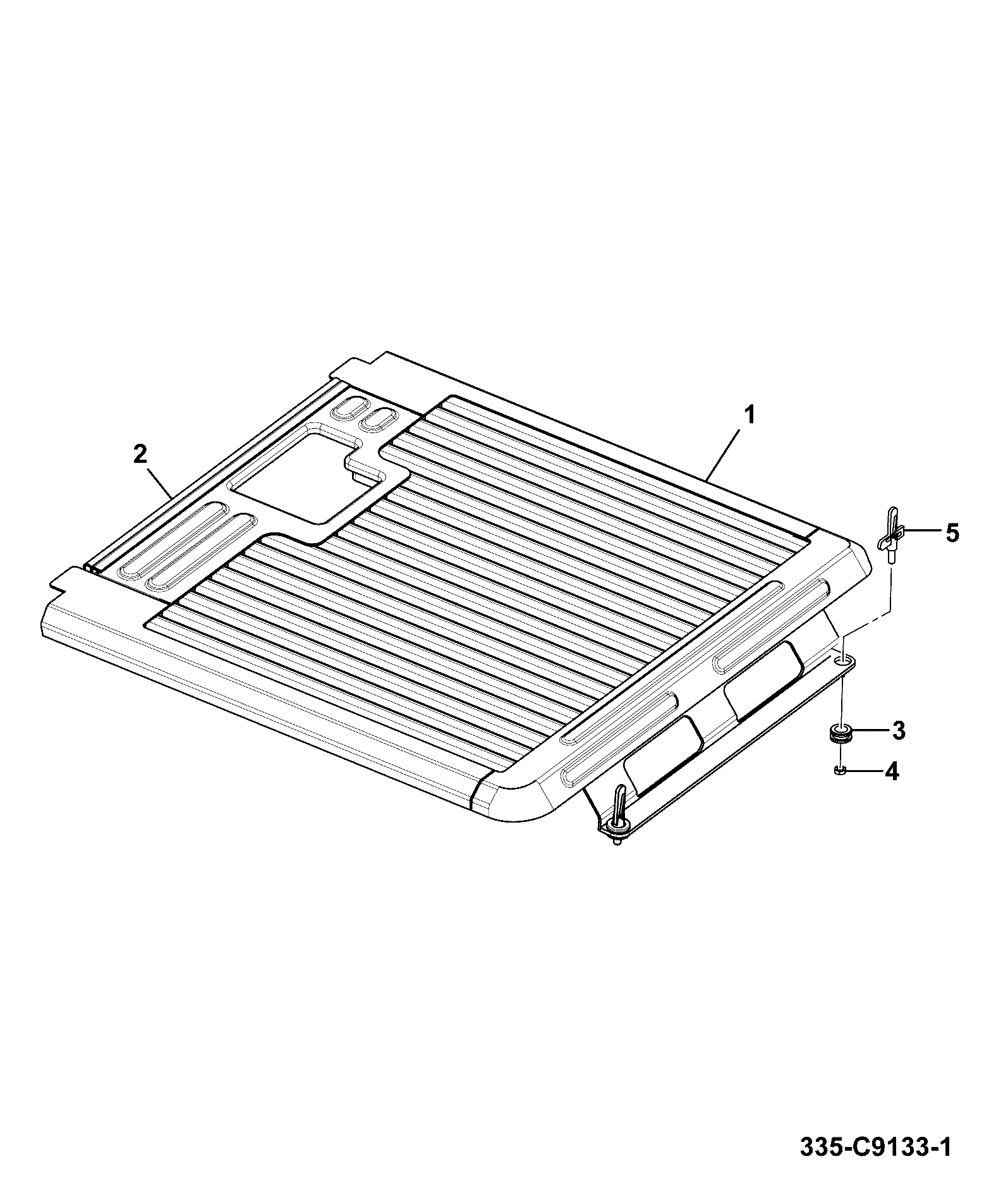

DIAG-B170-20-1-395342 B170-20-1 BONNET/ ENGINE COVERS/ GRILLES DOOR REAR ASSEMBLY, T4
