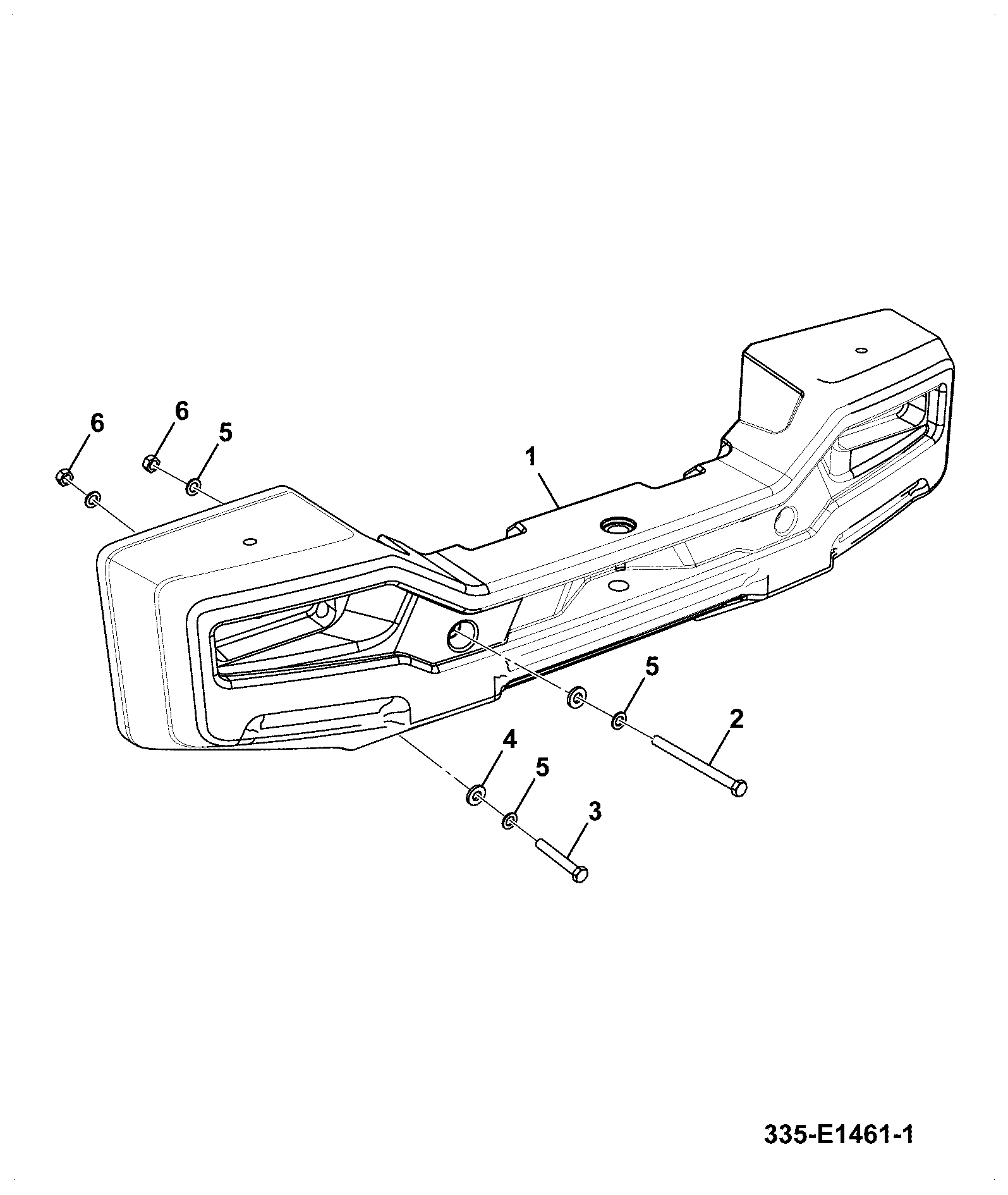

B180-3-1 COUNTER WEIGHTS HEAVY DUTY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	ABI 457 T4F HEAVY DUTY C/WEIGHT 335/E1461	1	AVAILABLE TO ORDER	$30,720.32	Quantity
3	SPACER 38 X 50LG 332/U1399	1	AVAILABLE TO ORDER	$55.35	Quantity
4	BLANKING PLUG 333/T9529	1	AVAILABLE TO ORDER	$0.62	Quantity
4	Plug Yellow M30 835/00170	1	AVAILABLE TO ORDER	$14.41	Quantity
5	CLAMP PLATE WA 334/V6017	1	AVAILABLE TO ORDER	$53.90	Quantity

Showing 1 to 5 of 5 parts
