B180-1-1 COUNTER WEIGHTS INSTALLATION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action

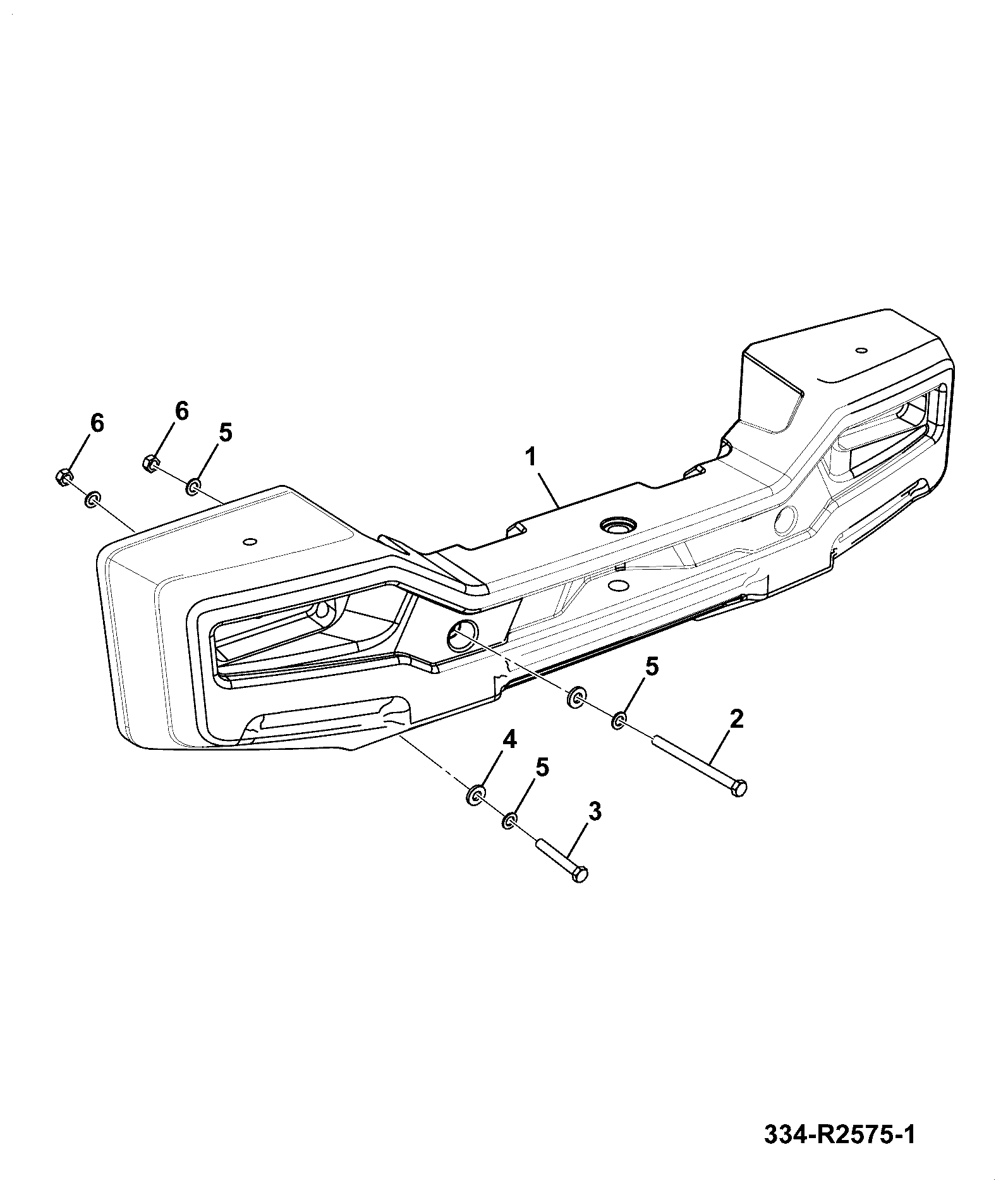

1	ABI 457 T4F C/WEIGHT 334/R2575	1	AVAILABLE TO ORDER	$16,203.49	Quantity
3	SPACER 38 X 50LG 332/U1399	1	AVAILABLE TO ORDER	$55.35	Quantity
4	BLANKING PLUG 333/T9529	1	AVAILABLE TO ORDER	$0.62	Quantity
4	Plug Yellow M30 835/00170	1	AVAILABLE TO ORDER	$14.41	Quantity
5	CLAMP PLATE WA 334/V6017	1	AVAILABLE TO ORDER	$53.90	Quantity

Showing 1 to 5 of 5 parts
