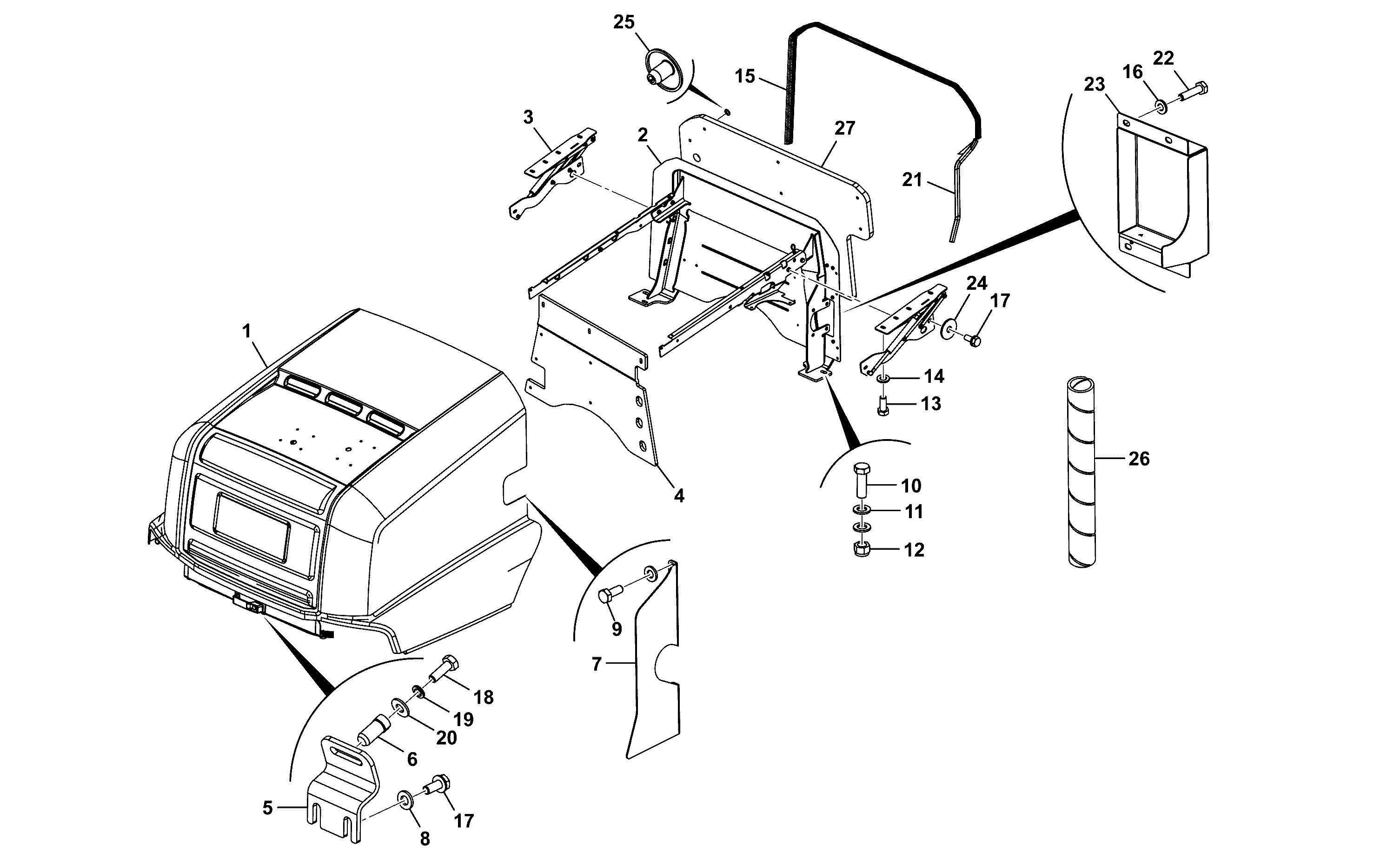

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI BONNET UN3 401/D1428 | 1 | $6,114.54 | |||
| 2 | HANDLE MOUNT PRESSING 400/A2605 | 1 | $214.99 | |||
| 3 | HANDLE ( 67.4572.9002) 123/04067 | 1 | $148.67 | |||
| 4 | LATCH, DOUBLE ROTOR 333/U6367 | 1 | $103.91 | |||
| 6 | WEBBING STRAP 333/V7000 | 1 | $43.83 | |||
| 7 | RUBBER BUFFER 478/02306 | 1 | $17.51 | |||
| 8 | WASHER RUBBER 823/00521 | 1 | $16.69 | |||
| 9 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $0.20 | |||
| 10 | M8x30 BUTTON HEAD SCREW 826/11357 | 1 | $18.30 | |||
| 11 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 13 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $0.48 | |||
| 14 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.22 | |||
| 15 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $2.40 | |||
| 16 | WASHER 1/4 MEDIUM PLAIN 1411/0001D | 1 | $7.13 | |||
| 17 | 'SCREW M6x16 BUTTON SOCKET(KANBAN) (BR3) 826/01413 826/01559 | 1 | $8.07 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 19 | DOUBLE BUBBLE SEAL (50m p/Roll) 926/46800 | 1 | $161.13 | |||
| 20 | 740mm BUBBLE SEAL 400/W9658 | 1 | $4.90 | |||
| 22 | HEAT DEFLECTOR PLATE 333/W8403 | 1 | $318.24 | |||
| 23 | STACK PIPE WA 333/R5879 | 1 | $245.14 | |||
| 24 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 25 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $1.36 | |||
| 26 | SCREW M6x25 BUTTON SOCKET 826/01560 | 1 | $4.18 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

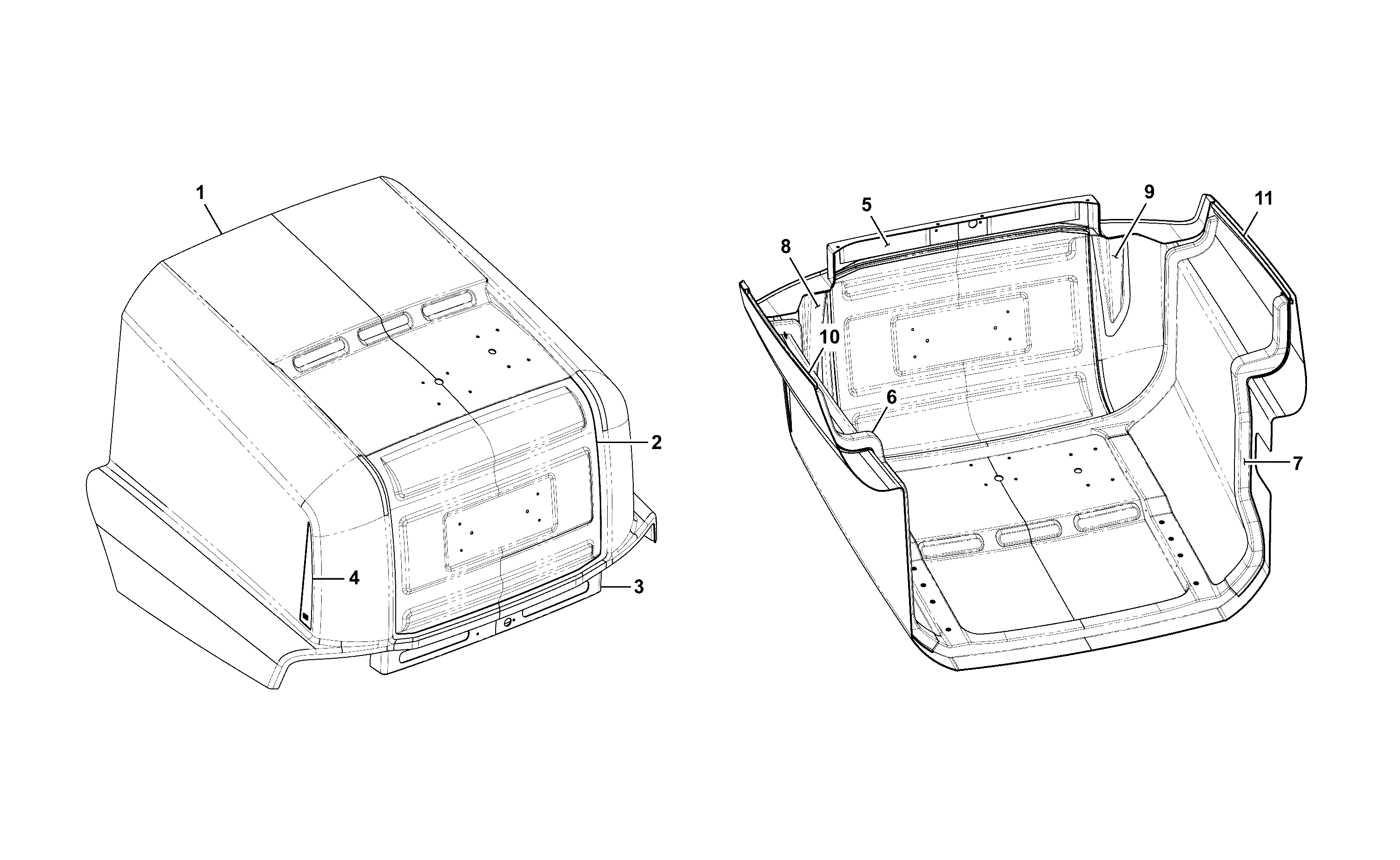

DIAG-B170-90-1-403087 B170-90-1 BONNET/ ENGINE COVERS/ GRILLES BONNET ABI UN3
View Diagram -
DIAG-B170-95-1-403087 B170-95-1 BONNET/ ENGINE COVERS/ GRILLES BONNET INSTALLATION ASSEMBLY
View Diagram -

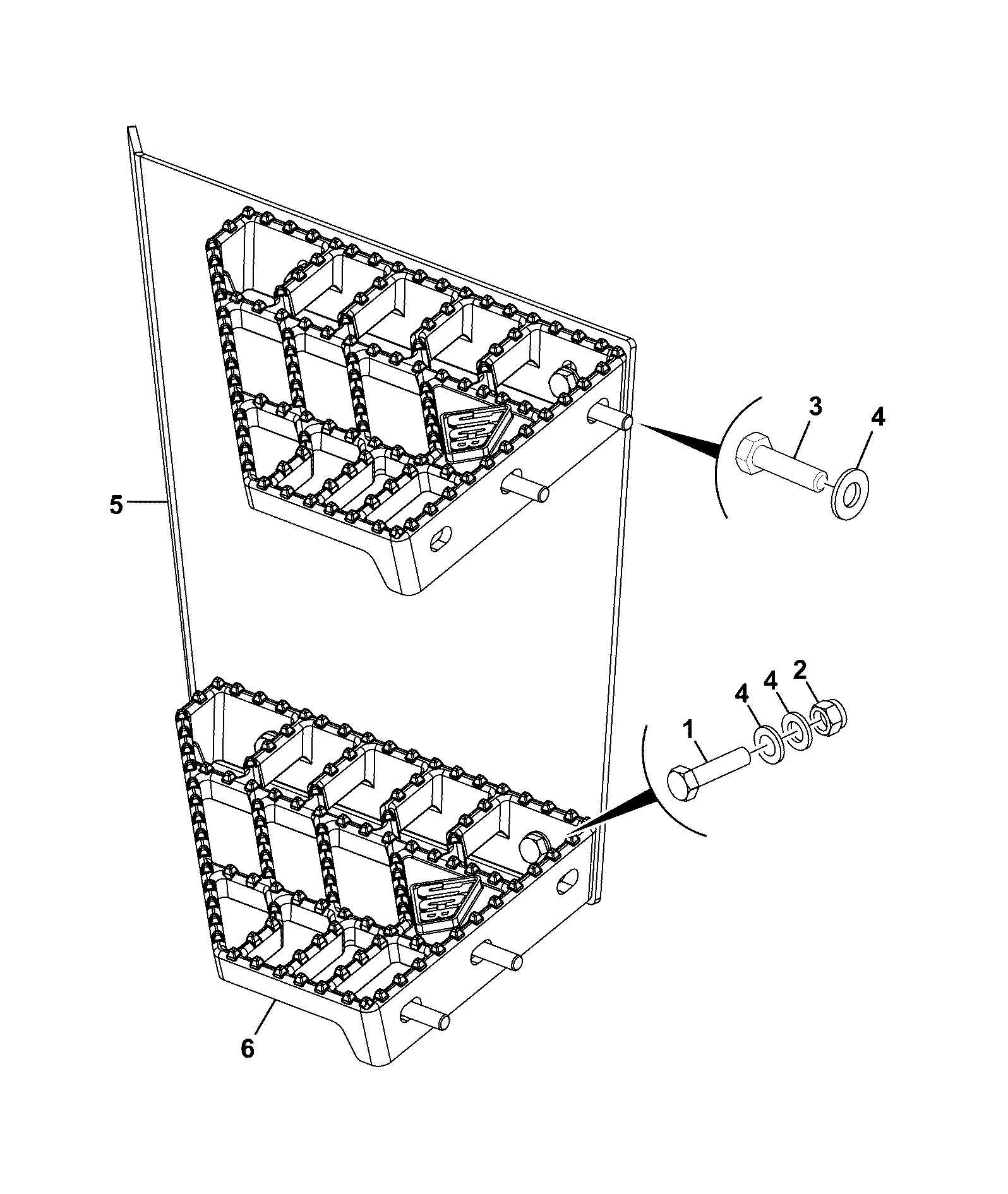

DIAG-B190-135-1-403087 B190-135-1 OTHER BODYWORK ITEMS STEP RH ASSEMBLY
View Diagram
