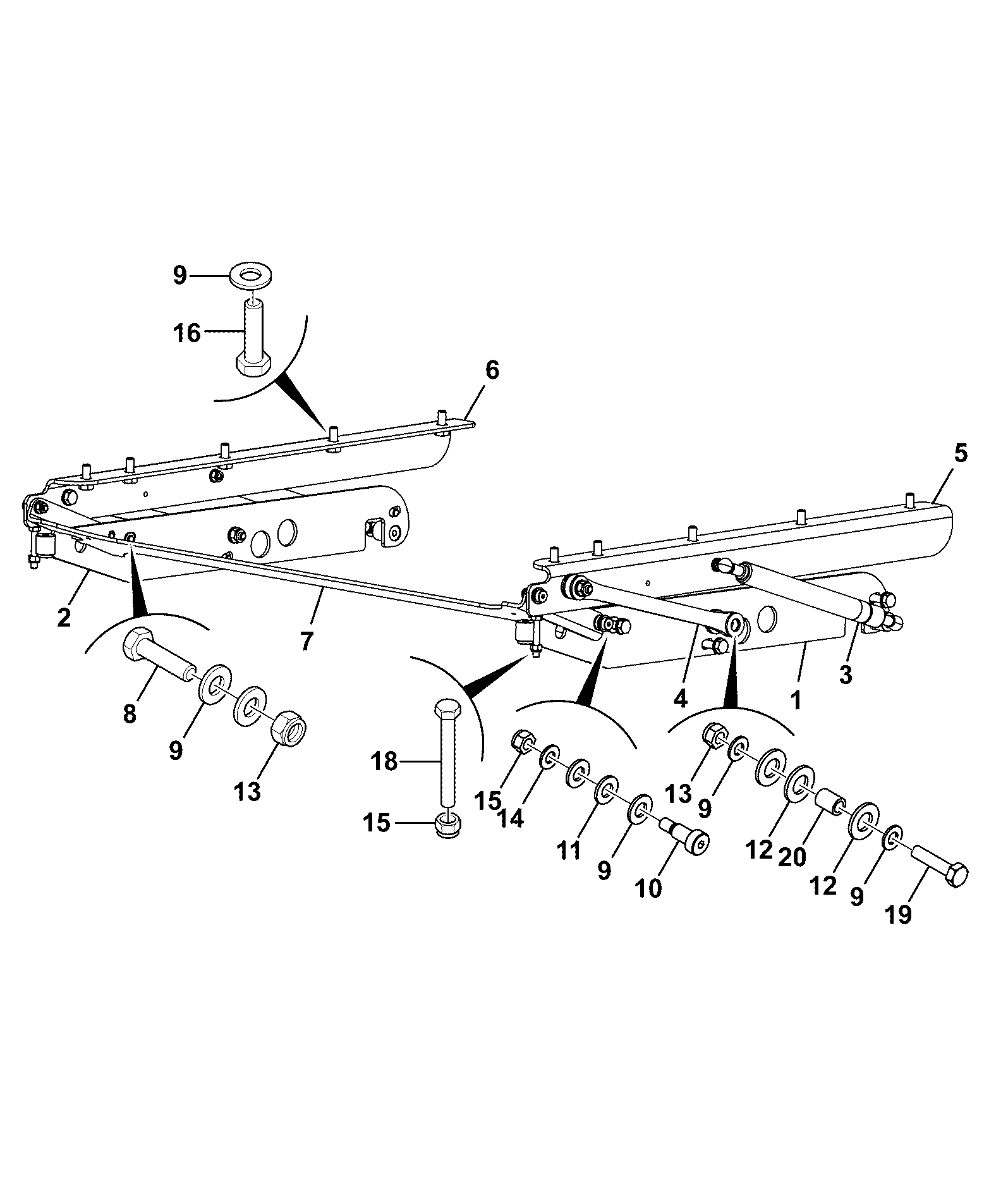

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA PIVOT PLATE - LH 335/B5567 | 1 | $206.01 | |||
| 2 | WA PIVOT PLATE - RH 335/B5572 | 1 | $206.01 | |||
| 3 | 14-28 GAS SPRING 1345N 53 401/X3264 | 1 | $88.04 | |||
| 4 | HINGE LINK 400/L7833 | 1 | $61.56 | |||
| 5 | BONNET HINGE PLATE - LH 401/S2235 | 1 | $170.65 | |||
| 6 | BONNET HINGE PLATE - RH 401/S2238 | 1 | $118.02 | |||
| 7 | CROSS HINGE WA 401/W2551 | 1 | $304.96 | |||
| 8 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 9 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 12 | WASHER 5/8" SMALL 1410/0007D | 1 | $1.16 | |||
| 13 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 14 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 15 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 16 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 18 | SET SCREW M8x50 1315/0312D | 1 | $3.37 | |||
| 19 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 20 | SPACER 980/78402 | 1 | $67.50 | |||
Showing 1 to 17 of 17 parts
