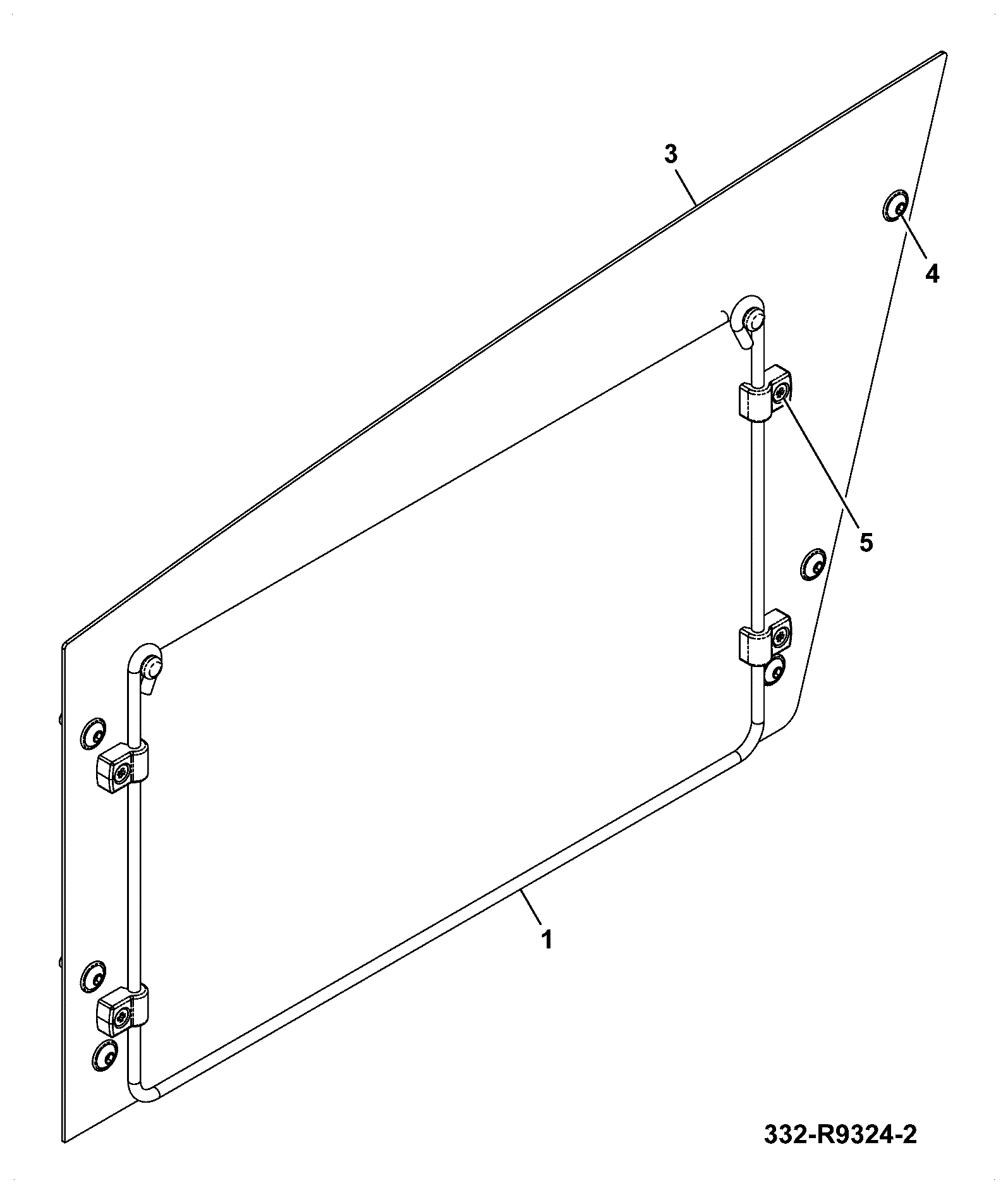

B170-6-1 COVER INSPECTION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	THUMB SCREW M6x15 (P564) 332/S6024	1	8 IN STOCK	$3.08	Quantity
3	SEAL - NEOPRENE (P564) 333/R2345	1	AVAILABLE TO ORDER	$24.92	Quantity
4	WA COVER PLATE (P564) 332/L1483	1	AVAILABLE TO ORDER	$12.92	Quantity

Showing 1 to 3 of 3 parts

DIAG-B170-5-1-400503 B170-5-1 PANEL REAR SIDE
View Diagram
DIAG-B170-11-2-400503 B170-11-2 BONNET ASSEMBLY
View Diagram
DIAG-B170-12-2-400503 B170-12-2 BONNET/ ENGINE COVERS/ GRILLES COVER, LEFT SIDE ASSEMBLY
View Diagram
