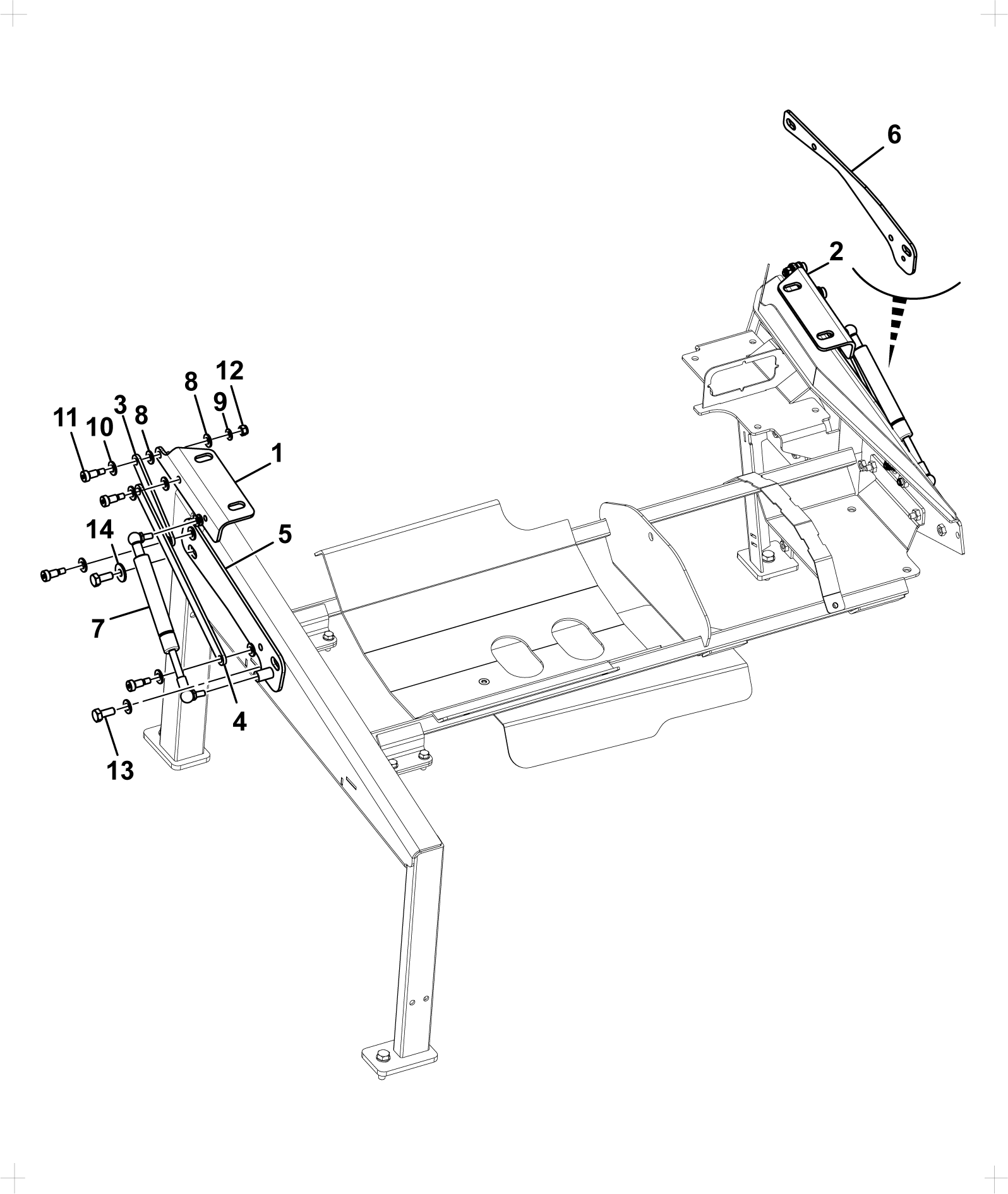

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ENGINE COVER ABI 402/X2912 | 1 | $4,521.32 | |||
| 2 | HANDLE ( 67.4572.9002) 123/04067 | 1 | $148.67 | |||
| 3 | LATCH, DOUBLE ROTOR 333/U6367 | 1 | $103.91 | |||
| 4 | BASE PLATE 334/T9226 | 1 | $45.12 | |||
| 5 | PLATE 401/D4142 | 1 | $69.51 | |||
| 6 | STRIKER BRACKET 333/V5878 | 1 | $52.05 | |||
| 7 | LATCH PIN 333/V6443 | 1 | $103.71 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 10 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 11 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 12 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 13 | SET SCREW M6 x 40 G8.8 1315/0210D | 1 | $0.81 | |||
| 14 | (W) SCREW M6X35 826/10401 | 1 | $12.04 | |||
| 15 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 16 | WEBBING STRAP 334/U7229 | 1 | $20.16 | |||
| 17 | CWLS BONNET HEAT SHIELD 402/W0579 | 1 | $143.73 | |||
| 18 | NYLON WASHER M10x42x2 (P511) 335/F2326 | 1 | $4.93 | |||
| 19 | NUT VIBRATION PROOF 826/01277 | 1 | $3.89 | |||
Showing 1 to 19 of 19 parts
