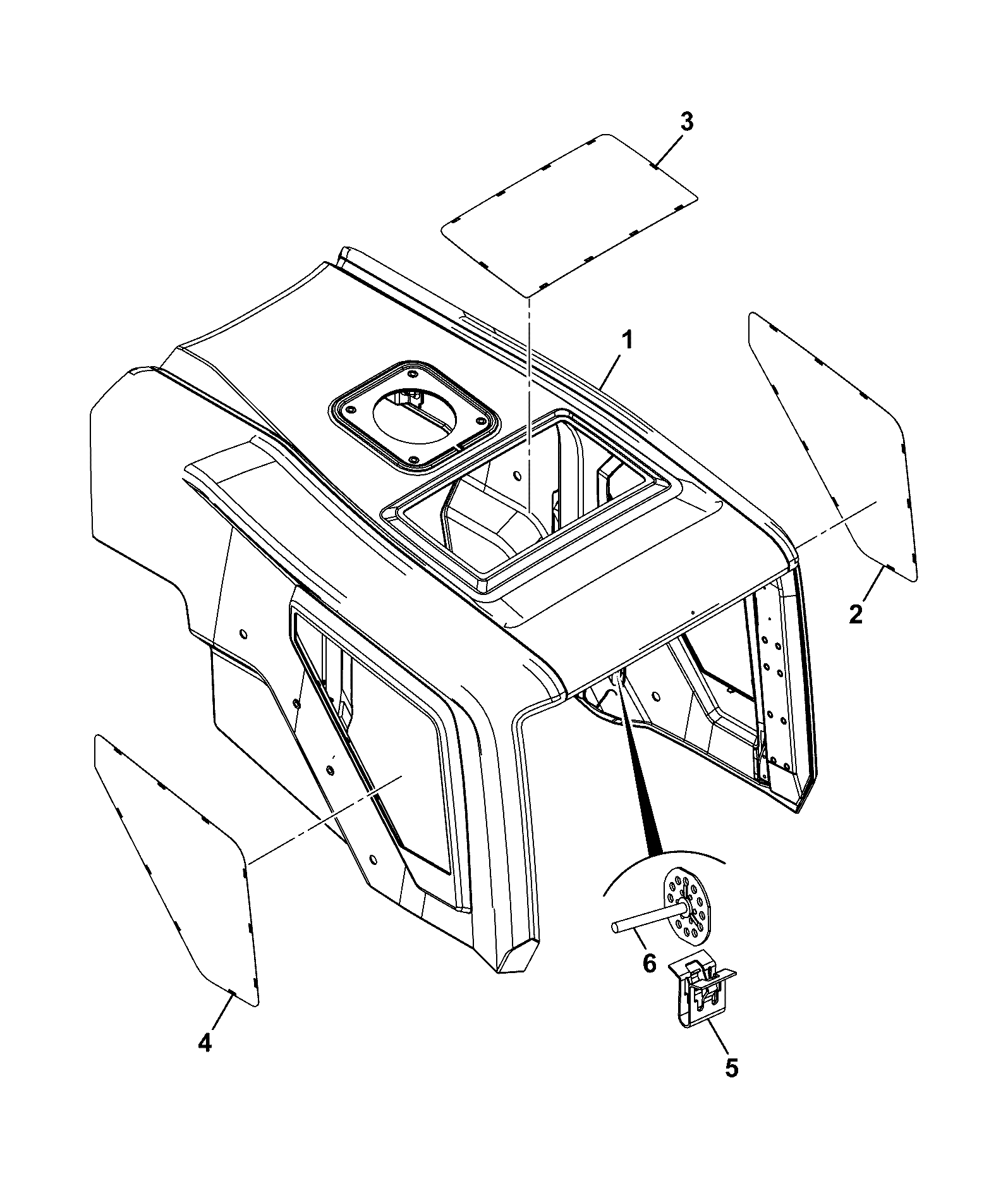

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

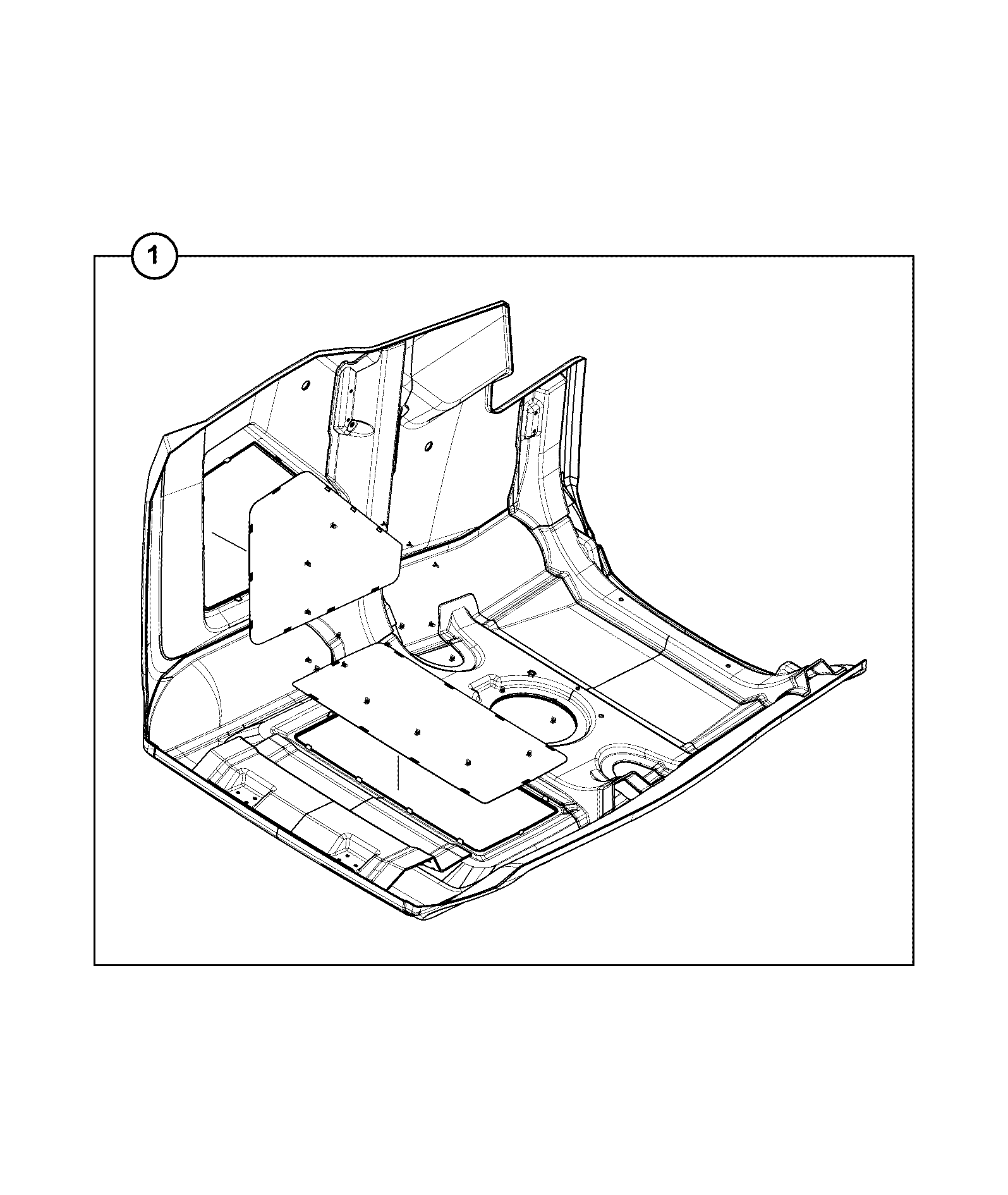

| 1 | ABI BONNET 437 S5 PRE-FIL 401/A3677 403/J1249 | 1 | $11,440.44 | |||
| 6 | BONNET HEAT SHEILD 427-43 400/W5974 | 1 | $456.41 | |||
| 9 | BUTTON HD.SCREW.M10X25 LG 826/01616 | 1 | $4.05 | |||
| 10 | TEKS SCREW 332/R6467 | 1 | $0.81 | |||
| 12 | LABEL - NO STEP 333/J4829 | 1 | $9.52 | |||
| 13 | LABEL - ISO-01B 332/T2017 | 1 | $20.30 | |||
| 15 | BONNET SOUNDPROOFING LH 401/R1669 | 1 | $70.59 | |||
| 16 | RETAINER BUTTON-BLACK 826/01308 | 1 | $2.57 | |||
| 17 | WA LH INFILL PLATE 400/A4522 | 1 | $442.13 | |||
| 18 | WA RH INFILL PLATE 400/A4028 | 1 | $237.17 | |||
| 19 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 21 | WA INFILL MOUNT 400/A1654 | 1 | $38.94 | |||
| 22 | WA INFILL & DIPSTICK MOUN 400/A2692 | 1 | $47.85 | |||
| 23 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 24 | EDGING STRIP 2350mm long 332/X5655 926/04833 | 1 | $52.11 | |||
| 25 | HEAT SHIELD BRACKET 427 - 435s 400/W7574 | 1 | $163.25 | |||
| 26 | SET SCREW M10 x 30 GRADE (P495 HMH) 1315/0408N | 1 | $3.02 | |||
| 27 | WASHER - PLAIN METRIC M10 1420/0008N | 1 | $2.08 | |||
| 28 | bonetSOUNDPROOFING RH 401/N7923 | 1 | $91.09 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-B170-20-5-404722 B170-20-5 BONNET/ ENGINE COVERS/ GRILLES BONNET ASSEMBLY
View Diagram -
DIAG-B170-95-1-404722 B170-95-1 BONNET/ ENGINE COVERS/ GRILLES BONNET AGRI ABI
View Diagram -
DIAG-B170-120-1-404722 B170-120-1 BONNET/ ENGINE COVERS/ GRILLES BONNET ABI
View Diagram
