Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI LH REAR PLASTIC FNDR 400/A1071 | 1 | $1,936.33 | |||
| 2 | ABI RH REAR PLASTIC FNDR 400/B1619 | 1 | $1,936.33 | |||
| 3 | BOLT M8x60 1316/3314D | 1 | $2.32 | |||
| 4 | (P) (W) (P) NUT M8 LOCK G12 (P564) 1371/0203 | 1 | $4.83 | |||
| 5 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 6 | FRONT LUG SPACER 823/10428 | 1 | $245.14 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | Bolt BOLT M8x65 1316/3315D | 1 | $13.02 | |||
| 9 | WA REAR LOWER SUPPORT LH 335/D4849 | 1 | $828.89 | |||
| 10 | WA REAR LOWER SUPPORT RH 335/E0847 | 1 | $828.89 | |||
| 11 | WA FRONT LOWER SUPPORT LH 335/D6268 | 1 | $748.04 | |||
| 12 | WA FRONT LOWER SUPPORT RH 335/E0848 | 1 | $787.86 | |||
| 13 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 14 | WA FENDER MOUNTING PLATE 400/C0261 | 1 | $114.31 | |||
| 15 | WASHER M8 823/00324 | 1 | $2.75 | |||
| 17 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 18 | WASHER 1420/0007 7001/31108 | 1 | $1.52 | |||
| 19 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 20 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
| 21 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 22 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 23 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 24 | PLATE - FULL FENDER SEALI 400/D7026 | 1 | $66.49 | |||
| 25 | FOAM SEAL 45x25x140 400/D7600 | 1 | $1.67 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

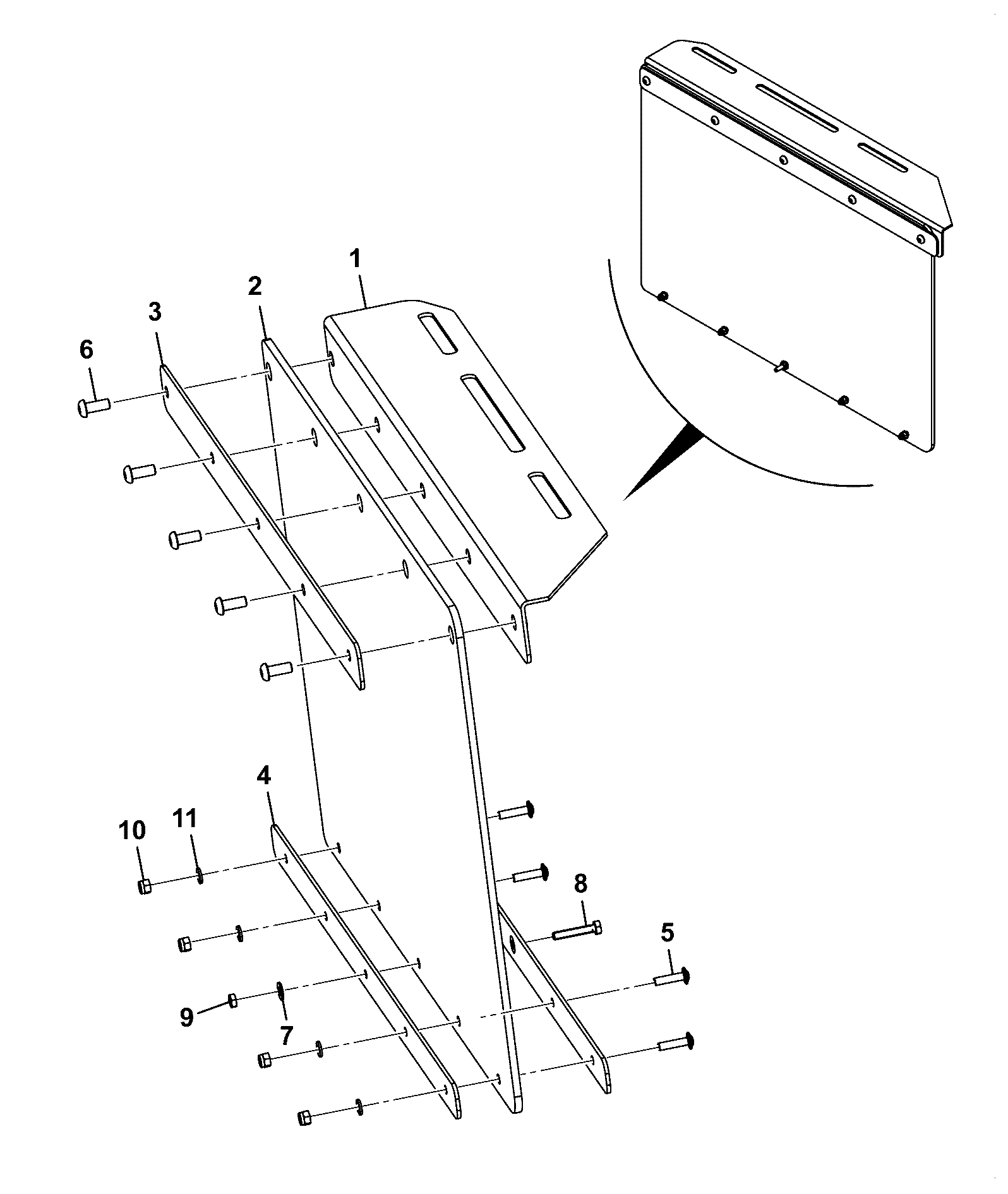

DIAG-B150-45-2-404964 B150-45-2 FENDERS REAR MUDFLAP
View Diagram -

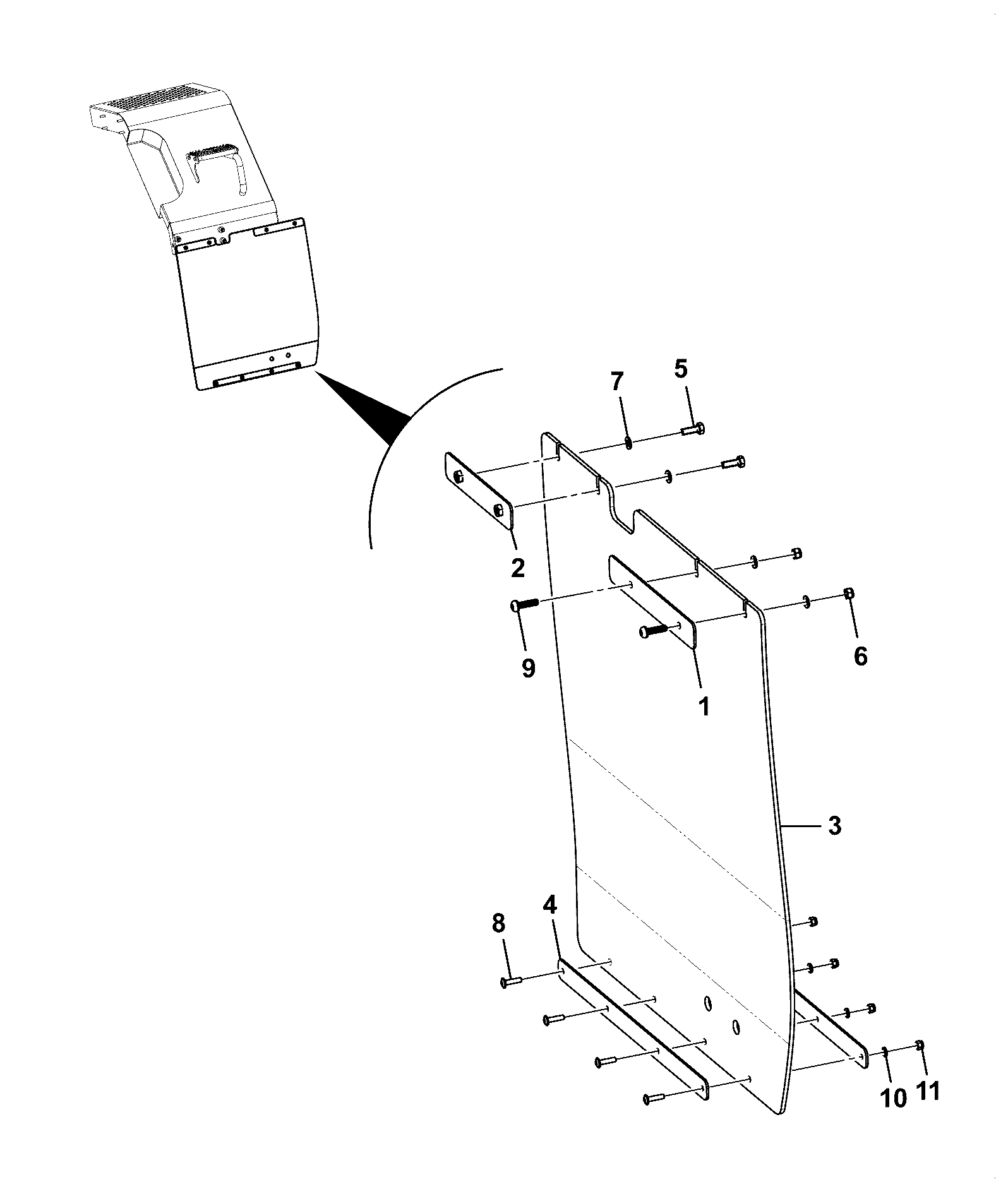

DIAG-B150-41-2-404964 B150-41-2 FENDERS MID MUDFLAP, RH
View Diagram -

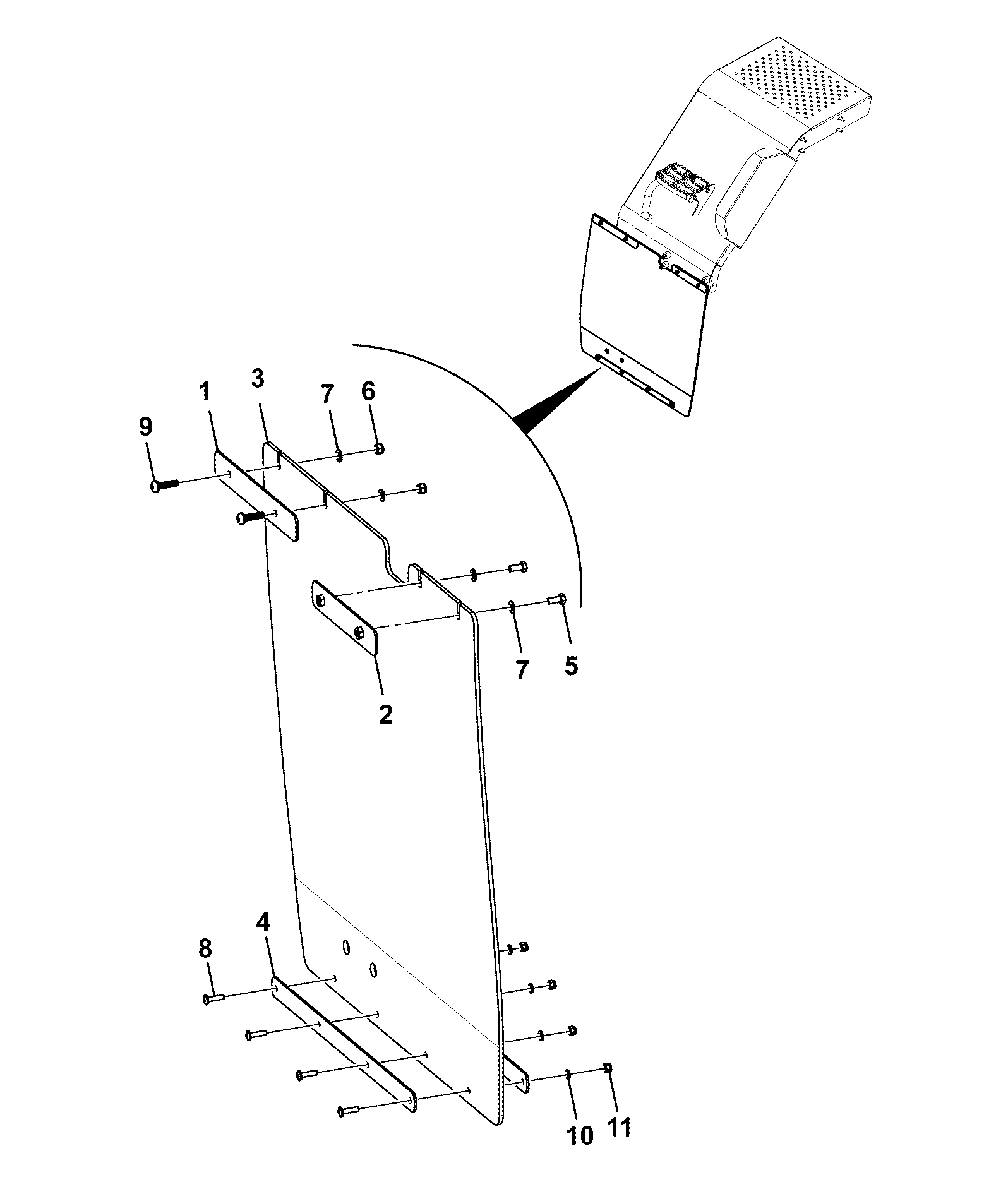

DIAG-B150-40-2-404964 B150-40-2 FENDERS MID MUDFLAP, LH
View Diagram
