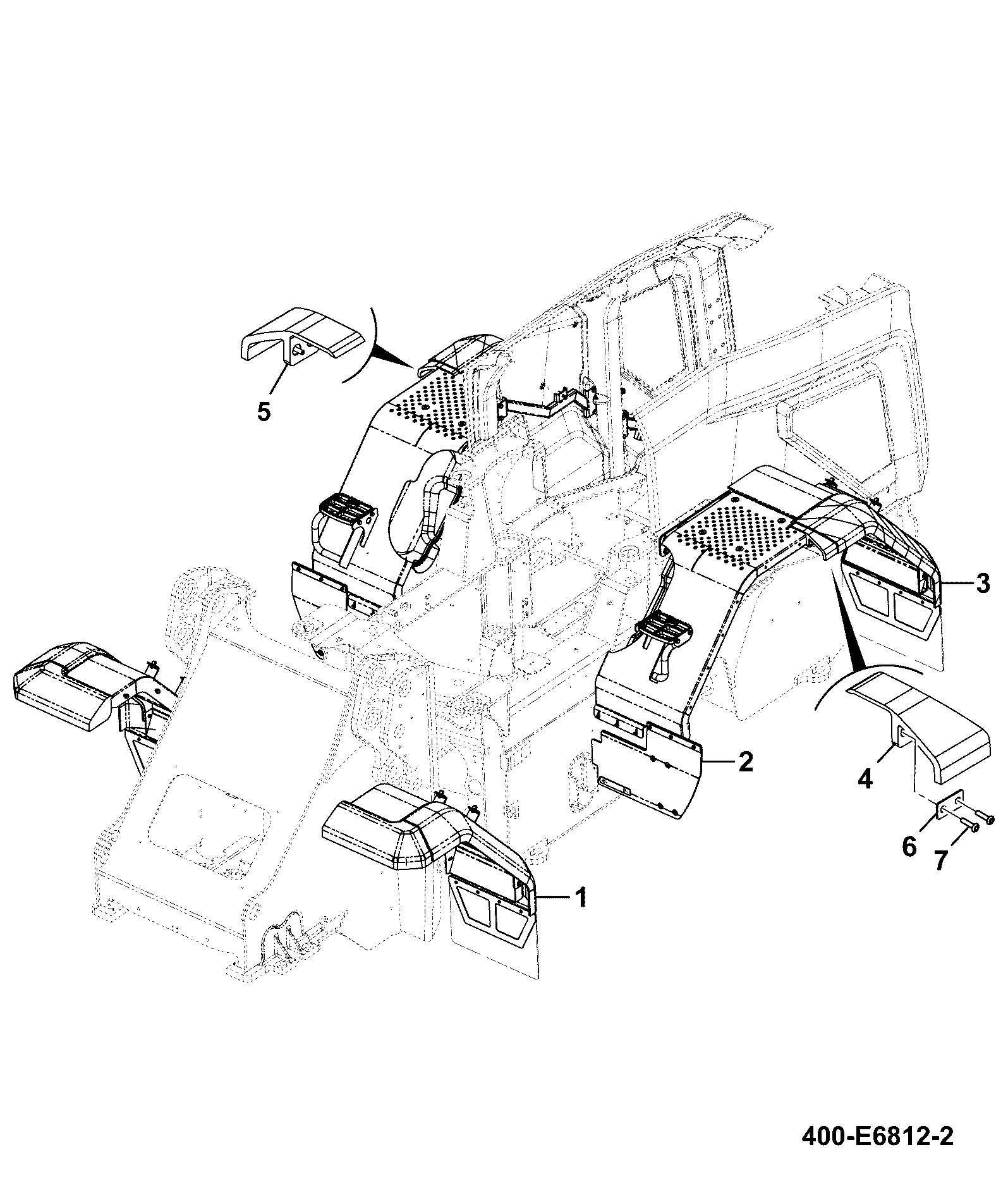

B150-40-1 FENDERS ASSEMBLY FULL – CHEVRON 620 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
4	LH TRIM SUPPORT 400/D5743	1	AVAILABLE TO ORDER	$127.39	Quantity
5	RH TRIM SUPPORT 400/D9900	1	AVAILABLE TO ORDER	$98.43	Quantity
6	SPACER PLATE 400/D5827	1	AVAILABLE TO ORDER	$11.60	Quantity
7	M8 x 35 PAN HEAD SKT SCRE 334/T9268	1	9 IN STOCK	$2.54	Quantity

Showing 1 to 4 of 4 parts
