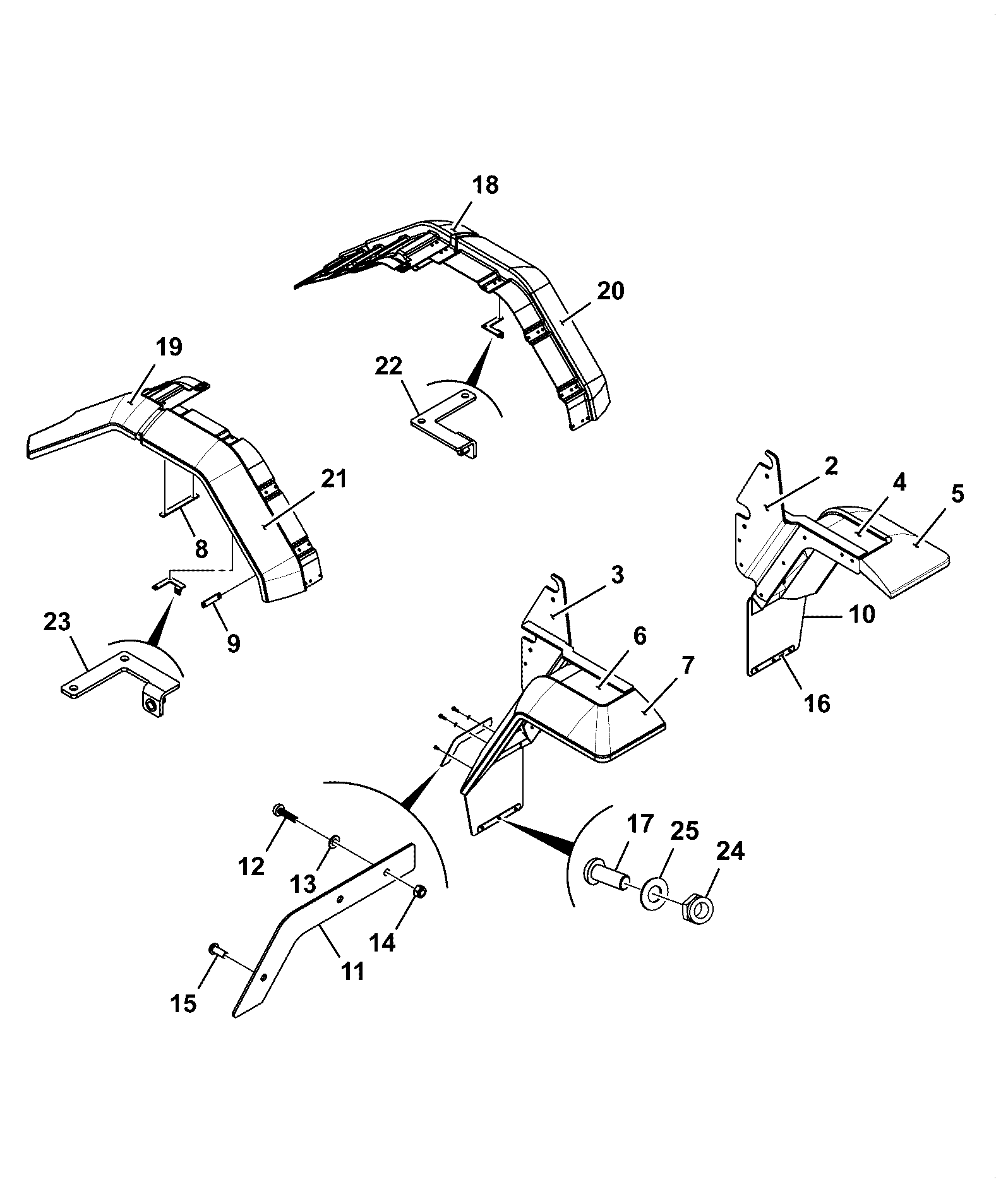

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA LH FRONT FENDER BRACKE 335/D6468 | 1 | $1,236.42 | |||
| 2 | WA RH FRONT FENDER BRACKE 335/D6469 | 1 | $1,491.33 | |||
| 3 | WA FRONT FENDER LH 593 WIDTH 335/C5457 | 1 | $876.49 | |||
| 4 | FENDER TRIM-FRONT LH (562 Width) 333/V3291 | 1 | $322.63 | |||
| 5 | WA FRONT FENDER RH 593 WIDTH 335/C5465 | 1 | $876.49 | |||
| 6 | FENDER TRIM-FRONT RH (562 Width) 333/V3292 | 1 | $322.81 | |||
| 7 | LH CLAMP PLATE MEDIUM - F 335/B9994 | 1 | $38.54 | |||
| 8 | RH CLAMP PLATE MEDIUM - F 335/C0855 | 1 | $38.54 | |||
| 9 | CLAMP PLATE MEDIUM - FORW 335/B9992 | 1 | $16.22 | |||
| 10 | MUDFLAP-FRONT 335/C5498 | 1 | $96.06 | |||
| 11 | M8x30 BUTTON HEAD SCREW 826/11357 | 1 | $18.30 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 15 | MUDFLAP STRIP 331/54824 | 1 | $38.73 | |||
| 16 | SCREW M6x25 BUTTON SOCKET 826/01560 | 1 | $4.18 | |||
| 17 | LH REAR FENDER OUTER 335/B9277 | 1 | $218.92 | |||
| 18 | RH REAR FENDER OUTER 335/B9279 | 1 | $15.63 | |||
| 19 | LH FWD FENDER OUTER 620 335/C8426 | 1 | $348.84 | |||
| 20 | RH FWD FENDER OUTER 620 335/B9285 | 1 | $348.84 | |||
| 21 | ABI LH CLAMP PLATE LONG - 335/B9995 | 1 | $36.03 | |||
| 22 | ABI RH CLAMP PLATE LONG - 335/B9998 | 1 | $36.03 | |||
| 23 | CHAIN RETAINER PRESSING 334/U8357 | 1 | $54.52 | |||
| 24 | REAR FORWARD CLAMP PLATE 400/M4731 | 1 | $128.22 | |||
| 25 | REAR MUDFLAP BRKT 620 335/C7304 | 1 | $117.25 | |||
| 26 | REAR MUDFLAP 620 335/C7303 | 1 | $41.97 | |||
| 27 | LH REAR FENDER OUTER 620 335/C8435 | 1 | $281.46 | |||
| 28 | RH REAR FENDER OUTER 620 335/C1539 | 1 | $281.46 | |||
| 29 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
| 30 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 31 | HEX SCREW M6x32 LG 1315/0208D | 1 | $0.51 | |||
| 32 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 33 | MUDFLAP-REAR FORWARD 620 335/C8438 | 1 | $27.81 | |||
| 34 | MUDFLAP-REAR FORWARD 620 400/C3044 | 1 | $20.79 | |||
| 35 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 36 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 37 | MUDFLAP CLAMP PLATE 335/C2699 | 1 | $15.23 | |||
| 38 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 39 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 40 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 41 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 42 | BOLT M_8 L-_20mm FLANGED 1317/3305D | 1 | $1.26 | |||
| 43 | RUBBER BUFFER 478/02306 | 1 | $17.51 | |||
| 44 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 45 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 46 | SET-SCREW M10 L-_50mm 1315/0412D | 1 | $4.08 | |||
| 47 | M10 NUT COVER 835/10110 | 1 | $3.97 | |||
| 48 | BOLT FLANGED HEX M8 x 30 g8.8 1317/3308D | 1 | $2.15 | |||
| 50 | CLAMP STRIP-MUDFLAP 335/C5499 | 1 | $21.67 | |||
| 51 | (REINSTATE) M10 X 30 DOME HEAD (P461) 826/11710 | 1 | $5.34 | |||
| 52 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 53 | MUDFLAP STRIP 335/E7445 | 1 | $18.23 | |||
| 54 | MUDFLAP CLAMP PLATE 400/C3043 | 1 | $32.76 | |||
| 55 | M6 LOCK NUT g8.8 (P461) 1370/0103B | 1 | $8.80 | |||
| 56 | WASHER M_6 PLAIN 1420/0006B | 1 | $15.98 | |||
Showing 1 to 55 of 55 parts
Related Assemblies
-

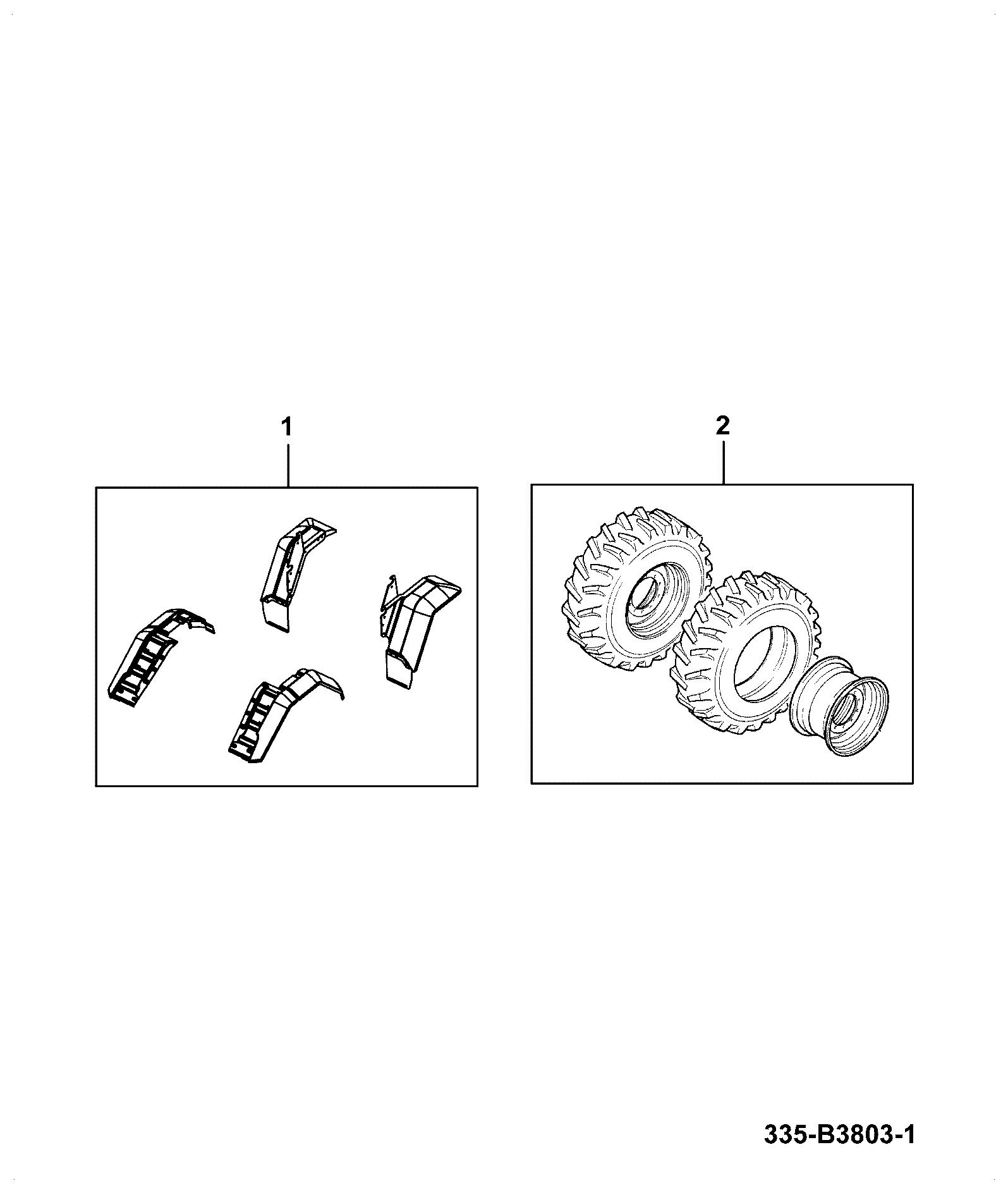

DIAG-B150-25-1-404539 B150-25-1 FENDERS WHEELS AND TYRES SGL 1
View Diagram -
DIAG-B150-16-1-404539 B150-16-1 FENDERS FRONT & REAR 500/70 R24 TYRES
View Diagram -
DIAG-B150-15-1-404539 B150-15-1 FENDERS FRONT & REAR 17.5 x R25 TYRES
View Diagram
