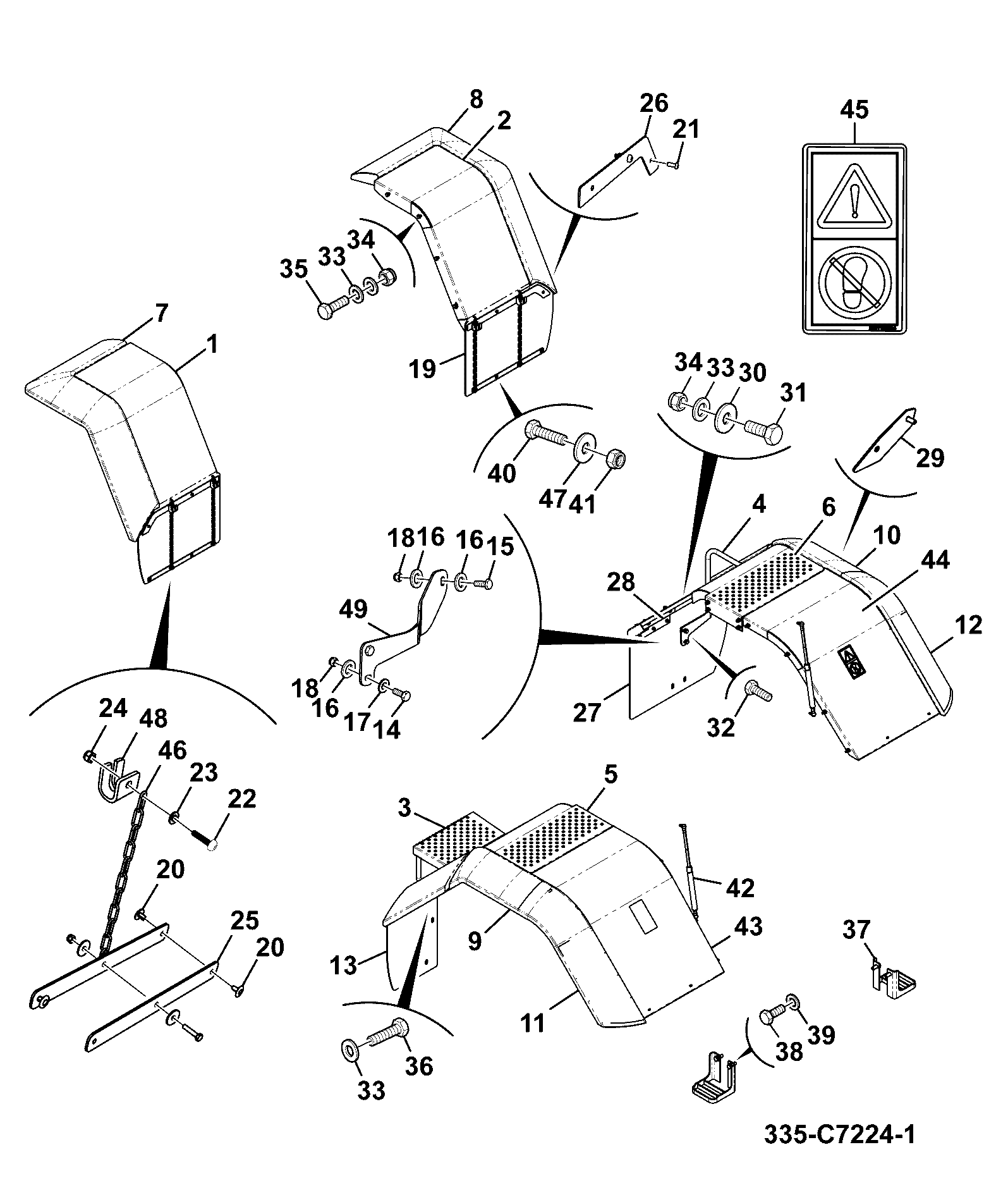

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA FRONT FENDER LH 681 WIDTH 335/C5433 | 1 | $553.82 | |||
| 2 | WA FRONT FENDER RH 681 WIDTH 335/C5434 | 1 | $592.16 | |||
| 3 | WA AUX TANK FENDER-750W&T 335/C7034 | 1 | $1,503.42 | |||
| 4 | WA REAR LWR FENDER RH 681 WIDTH 335/C5436 | 1 | $604.41 | |||
| 5 | WA REAR UPPER FENDER LH 681 WDTH 335/C5440 | 1 | $1,594.40 | |||
| 6 | WA REAR UPPER FENDER RH 681 WDTH 335/C5438 | 1 | $590.59 | |||
| 7 | FENDER TRIM-FRONT LH (634 Width) 333/V3282 | 1 | $317.08 | |||
| 8 | FENDER TRIM-FRONT RH (634 Width) 333/V3283 | 1 | $470.44 | |||
| 9 | TRIM, REAR - LOWER FENDER - LEFT SIDE 346/00230 | 1 | $202.48 | |||
| 10 | TRIM, REAR - LOWER FENDER - RIGHT SIDE 346/00231 | 1 | $202.48 | |||
| 11 | LH FENDER TRIM-REAR EXTEN 346/00226 | 1 | $499.69 | |||
| 12 | RH FENDER TRIM-REAR EXTEN 346/00227 | 1 | $499.69 | |||
| 13 | MUDFLAP - AUX TANK 750 TYRES 334/S2960 | 1 | $28.74 | |||
| 14 | SET SCREW M12x40 1315/0510D | 1 | $2.86 | |||
| 15 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $4.54 | |||
| 16 | WASHER 1/2 LARGE 1412/0005D | 1 | $2.03 | |||
| 17 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 18 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 19 | MUDFLAP - FRONT 335/C5455 | 1 | $59.09 | |||
| 20 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 21 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 22 | M8x30 BUTTON HEAD SCREW 826/11357 | 1 | $18.30 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 25 | MUDFLAP STIFFENER 335/C5458 | 1 | $16.52 | |||
| 26 | FRONT MUDFLAP STRIP 335/C5456 | 1 | $82.19 | |||
| 27 | MUDFLAP - REAR 750 TYRES 335/C5524 | 1 | $73.06 | |||
| 28 | CLAMP STRIP-MUDFLAP 331/54501 | 1 | $25.53 | |||
| 29 | REAR MUDFLAP STRIP 331/47590 | 1 | $13.87 | |||
| 30 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 31 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 32 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 33 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 34 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 35 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 36 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 37 | WA REAR STEP-AG TYRES 332/U3799 | 1 | $286.49 | |||
| 38 | SET-SCREW M16 L-_40mm 1315/0710D | 1 | $3.11 | |||
| 39 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 40 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 41 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 42 | GAS STRUT 333/V8689 | 1 | $126.29 | |||
| 43 | EXTENDER MUDFLAP CLAMPSTRIP 750 334/S3198 | 1 | $44.81 | |||
| 44 | (P) SCREW NO8X3/4 (P512/513) 1430/0204 | 1 | $1.05 | |||
| 45 | Label ISO-03B 817/70024 | 1 | $4.32 | |||
| 46 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
| 47 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 48 | PLATE 265/02961 | 1 | $92.24 | |||
| 49 | FENDER FOLDED SUPPORT BRKT-RH 333/S6777 | 1 | $225.40 | |||
| 50 | HEX SCREW M6x32 LG 1315/0208D | 1 | $0.51 | |||
| 51 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 52 | WA FENDER EXTENDER RH 681 WIDTH 335/C5443 | 1 | $2,545.55 | |||
| 53 | WA FENDER EXTENDER LH 681 WIDTH 335/C5441 | 1 | $979.03 | |||
| 54 | REAR EXT MUDFLAP 750 TYRES 334/S3190 | 1 | $204.82 | |||
Showing 1 to 54 of 54 parts
