Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA LH MID FENDER 750 400/A2599 | 1 | $1,962.55 | |||
| 2 | LH FENDER CAP 334/V1947 | 1 | $281.59 | |||
| 3 | WA LH FENDER INFILL 400/B7887 | 1 | $313.90 | |||
| 4 | WA RH MID FENDER 750 400/A2600 | 1 | $1,633.44 | |||
| 5 | RH FENDER CAP 334/V2023 | 1 | $319.03 | |||
| 6 | WA RH FENDER INFILL 400/B7890 | 1 | $313.90 | |||
| 7 | STEP (X-Feed) 589/10221 | 1 | $166.10 | |||
| 8 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 9 | HEX.BOLT M10x55 LG 1315/3413D | 1 | $1.94 | |||
| 10 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 11 | SPACER 262/04601 | 1 | $57.46 | |||
| 12 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 13 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 14 | GROMMET BLIND 7.95 DIA x 3.5 THK 2410/1106 | 1 | $4.08 | |||
| 15 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 21 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 23 | 750 MID FENDER MUDFLAP 336/A5253 | 1 | $93.75 | |||
| 24 | CLAMP PLATE 335 LONG 335/B5320 | 1 | $22.92 | |||
| 25 | CLAMP PLATE 437 MID FENDE 336/A5254 | 1 | $61.13 | |||
| 26 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 27 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 28 | 750 MUDFLAP STIFFENER 335/B5907 | 1 | $73.95 | |||
| 29 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 30 | SPACER 231/72101 | 1 | $52.11 | |||
| 31 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 32 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

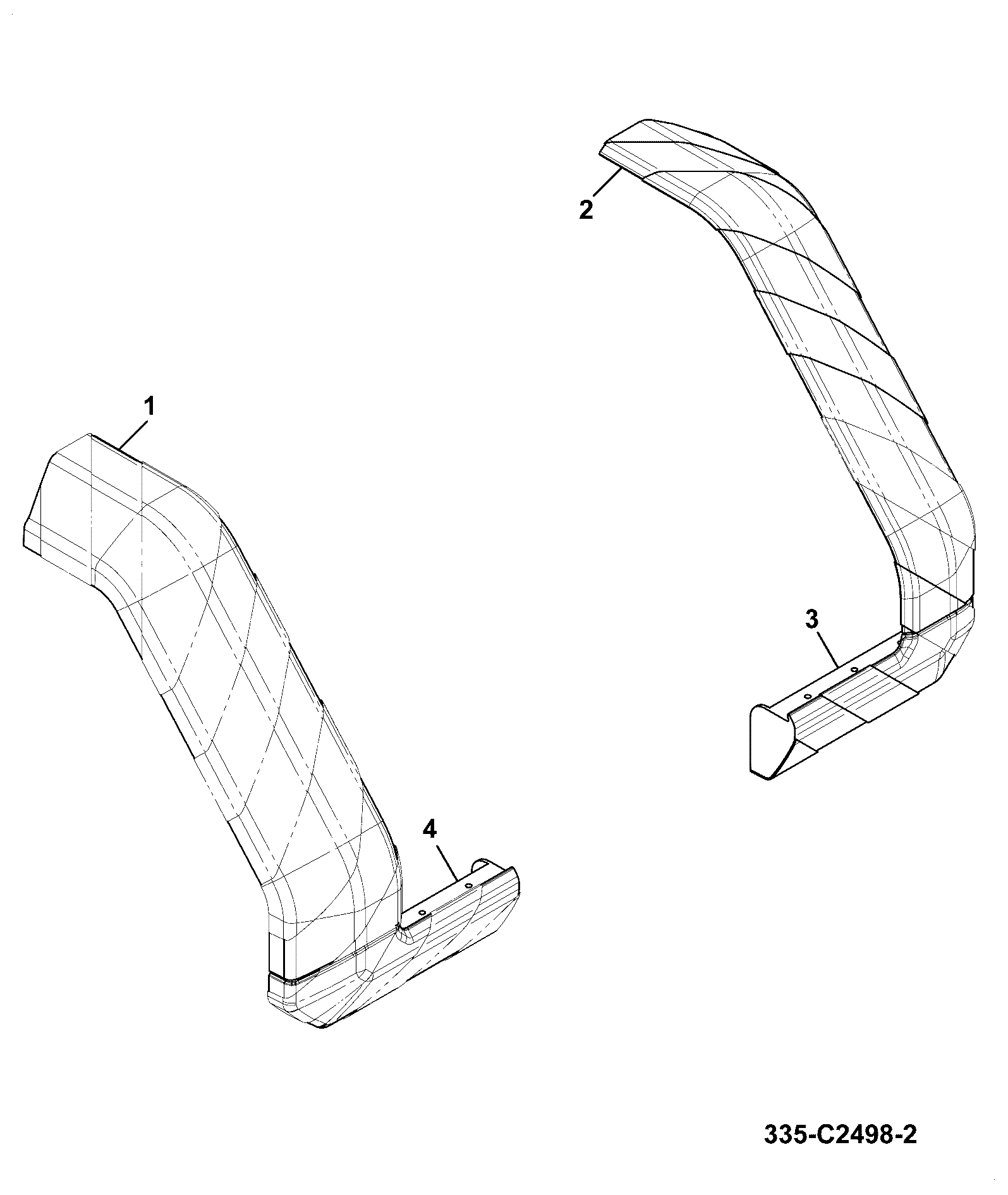

DIAG-B150-190-1-404719 B150-190-1 FENDERS KIT TRIMS CHEVRON 20.5
View Diagram -
DIAG-B150-225-5-404719 B150-225-5 FENDERS ASSEMBLY FRONT FENDER
View Diagram -
DIAG-B150-175-1-404719 B150-175-1 FENDERS ASSEMBLY REAR , 427 CHEVRON 620
View Diagram
