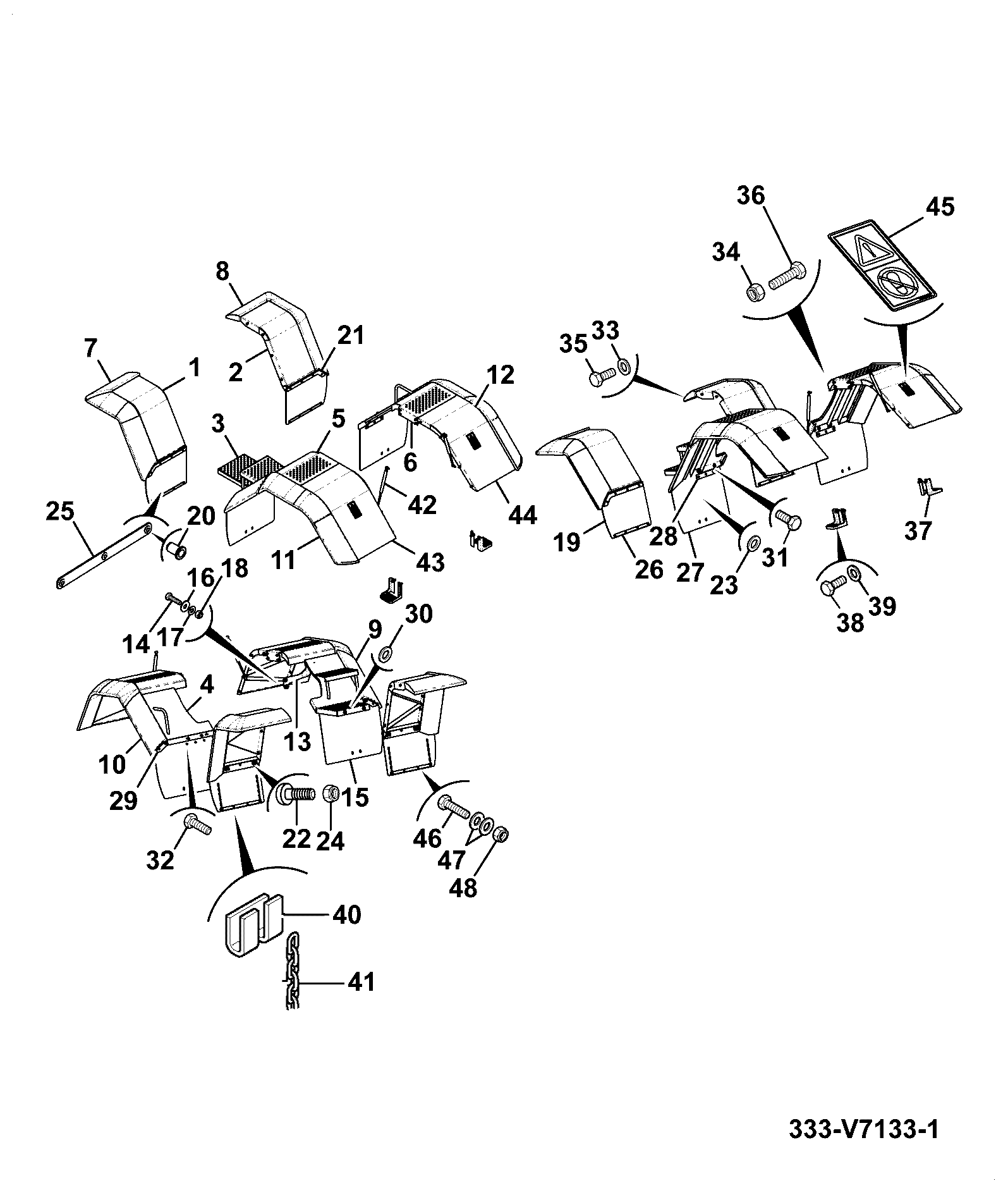

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA FRONT FENDER LH 562 WIDTH 333/U7573 | 1 | $1,250.08 | |||
| 2 | WA FRONT FENDER RH 562 WIDTH 333/V0222 | 1 | $1,153.94 | |||
| 3 | WA REAR LOWER FENDER - LH 620W&T 332/P7385 | 1 | $2,533.09 | |||
| 5 | WA UPPER FENDER LH 332/P7567 | 1 | $975.51 | |||
| 6 | WA UPPER FENDER RH 332/P7538 | 1 | $2,389.74 | |||
| 7 | FENDER TRIM-FRONT LH (562 Width) 333/V3291 | 1 | $322.63 | |||
| 8 | FENDER TRIM-FRONT RH (562 Width) 333/V3292 | 1 | $322.81 | |||
| 9 | TRIM, REAR - LOWER FENDER - LEFT SIDE 346/00230 | 1 | $202.48 | |||
| 10 | TRIM, REAR - LOWER FENDER - RIGHT SIDE 346/00231 | 1 | $202.48 | |||
| 11 | FENDER TRIM-UPPER REAR LH 346/00173 | 1 | $449.41 | |||
| 12 | FENDER TRIM-UPPER REAR RH 346/00174 | 1 | $399.04 | |||
| 13 | FENDER FOLDED SUPPORT BRACKET 333/S6363 | 1 | $78.29 | |||
| 14 | SET SCREW M12x40 1315/0510D | 1 | $2.86 | |||
| 15 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $4.54 | |||
| 16 | WASHER 1/2 LARGE 1412/0005D | 1 | $2.03 | |||
| 17 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 18 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 19 | MUDFLAP-FRONT 333/V0005 | 1 | $32.79 | |||
| 20 | CLAMP STRIP-MUDFLAP 333/V0007 | 1 | $44.88 | |||
| 21 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 22 | M8x30 BUTTON HEAD SCREW 826/11357 | 1 | $18.30 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 25 | MUDFLAP STRIP 331/54824 | 1 | $38.73 | |||
| 26 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 27 | MUDFLAP - REAR 620 TYRES 332/V5011 | 1 | $57.14 | |||
| 28 | CLAMP STRIP-MUDFLAP 331/54501 | 1 | $25.53 | |||
| 29 | REAR MUDFLAP STRIP 331/47590 | 1 | $13.87 | |||
| 30 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 31 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 32 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 33 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 34 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 35 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 36 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 37 | WA REAR STEP-AG TYRES 332/U3799 | 1 | $286.49 | |||
| 38 | SET-SCREW M16 L-_40mm 1315/0710D | 1 | $3.11 | |||
| 39 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 40 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 41 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
| 42 | GAS SPRING 331/52904 | 1 | $316.31 | |||
| 47 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 48 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 52 | GROMMET 2410/1305 | 1 | $7.07 | |||
| 82 | HEX SCREW M6x32 LG 1315/0208D | 1 | $0.51 | |||
Showing 1 to 45 of 45 parts
