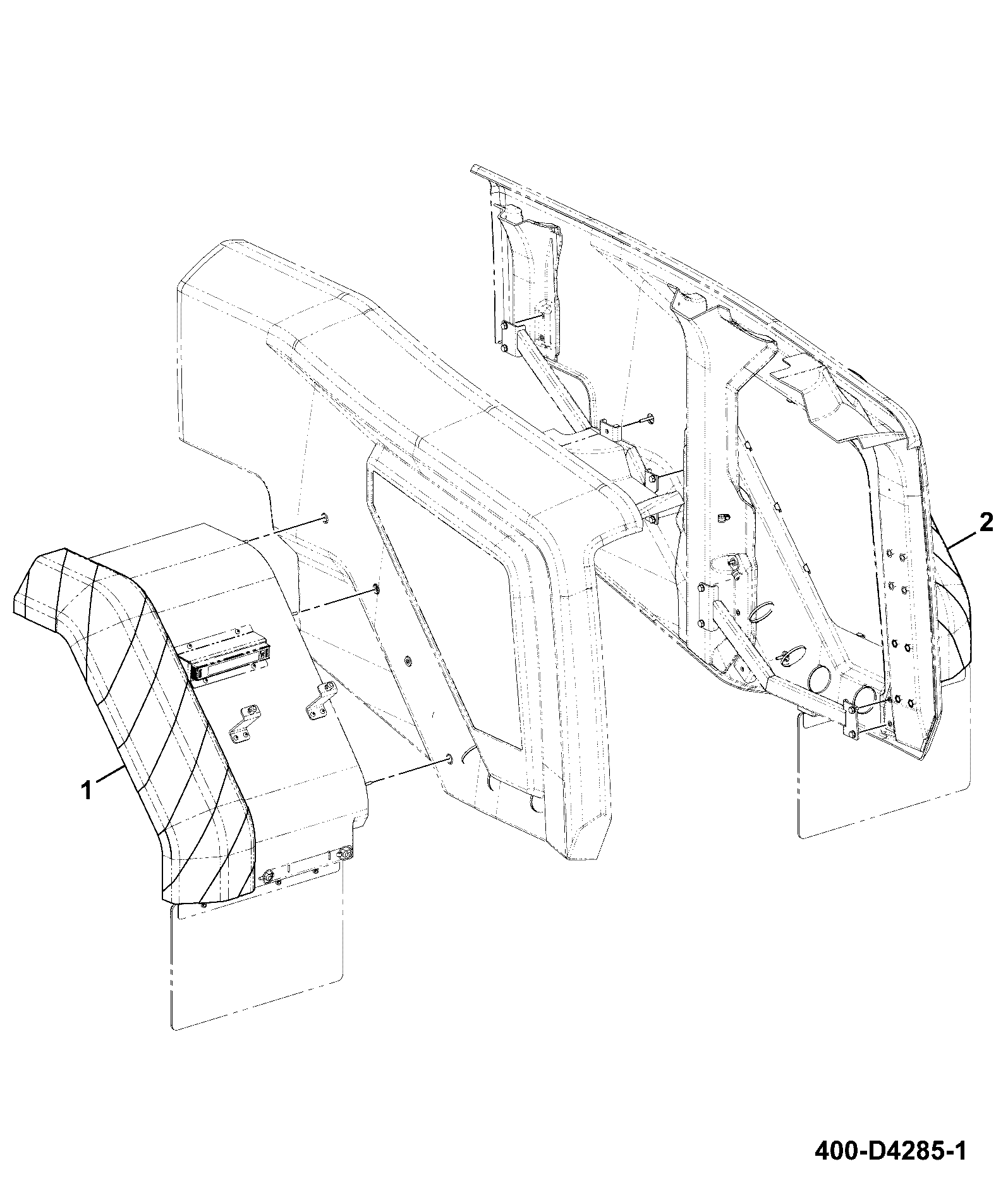

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI LH REAR PLASTIC FNDR 400/E6570 | 1 | $2,094.56 | |||
| 2 | ABI RH REAR PLASTIC FNDR 400/E6631 | 1 | $2,058.67 | |||
| 3 | LH FENDER TRIM REAR EXT 400/D5049 | 1 | $592.98 | |||
| 4 | RH FENDER TRIM REAR EXT 400/D9882 | 1 | $587.77 | |||
| 5 | WA LH FRONT LOWER SUPPORT 400/D5076 | 1 | $528.14 | |||
| 6 | WA RH FRONT LOWER SUPPORT 400/E3581 | 1 | $528.14 | |||
| 7 | WA REAR LOWER SUPPORT LH 400/D5072 | 1 | $317.11 | |||
| 8 | WA REAR LOWER SUPPORT RH 400/E3591 | 1 | $317.11 | |||
| 9 | WA UPPER SUPPORT LH 620 F 400/E6584 | 1 | $514.01 | |||
| 10 | WA UPPER SUPPORT RH 620 F 400/E6657 | 1 | $246.31 | |||
| 11 | WA LH LOWER SUPPORT 620 F 400/E6589 | 1 | $165.98 | |||
| 12 | WA RH LOWER SUPPORT 620 F 400/E6652 | 1 | $100.16 | |||
| 13 | FOAM SEAL LED MTG & FNDR 400/A2315 | 1 | $13.81 | |||
| 14 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 15 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 16 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 17 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 18 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 23 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 26 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 27 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 29 | SCREW M8x25 BUTTON SOCKET (P564) 826/01554 | 1 | $3.46 | |||
| 30 | MUDFLAP MTG PIN EXTENDED 400/D8079 | 1 | $46.32 | |||
| 34 | REAR FENDER SUPPORT BRKT 400/A0939 | 1 | $107.91 | |||
| 35 | BUMP STOP 332/V7730 | 1 | $10.23 | |||
| 36 | LOCTITE 638 - 50ml 4101/0600 4101/0602 | 1 | $75.94 | |||
| 37 | SPACER COLLAR 829/31478 | 1 | $20.16 | |||
| 38 | SHOULDER BOLT M8X30 400/K9344 | 1 | $59.33 | |||
| 39 | WASHER 3/8IN LARGE 1412/0003D | 1 | $0.57 | |||
| 40 | M8 SHOULDER BOLT 400/G9947 | 1 | $11.87 | |||
| 41 | PLATE - FULL FENDER SEALI 400/D7026 | 1 | $66.49 | |||
| 42 | FOAM SEAL 45x25x140 400/D7600 | 1 | $1.67 | |||
| 43 | RED REFLECTOR 703/05800 | 1 | $9.02 | |||
| 44 | SIKAFLEX 227 BLACK (FRAME SEALANT) 4102/2300 | 1 | $48.12 | |||
| 45 | (P) (P) CLEANER-DIRECT GLAZING 4104/1200 | 1 | $22.07 | |||
Showing 1 to 35 of 35 parts
Related Assemblies
-
DIAG-B150-166-1-404720 B150-166-1 FENDERS ASSEMBLY REAR CHEVRON 750 TYRES
View Diagram -
DIAG-B150-191-1-404720 B150-191-1 FENDERS KIT TRIMS CHEVRON 20.5
View Diagram -
DIAG-B150-196-1-404720 B150-196-1 FENDERS REAR 20.5 TYRES
View Diagram
