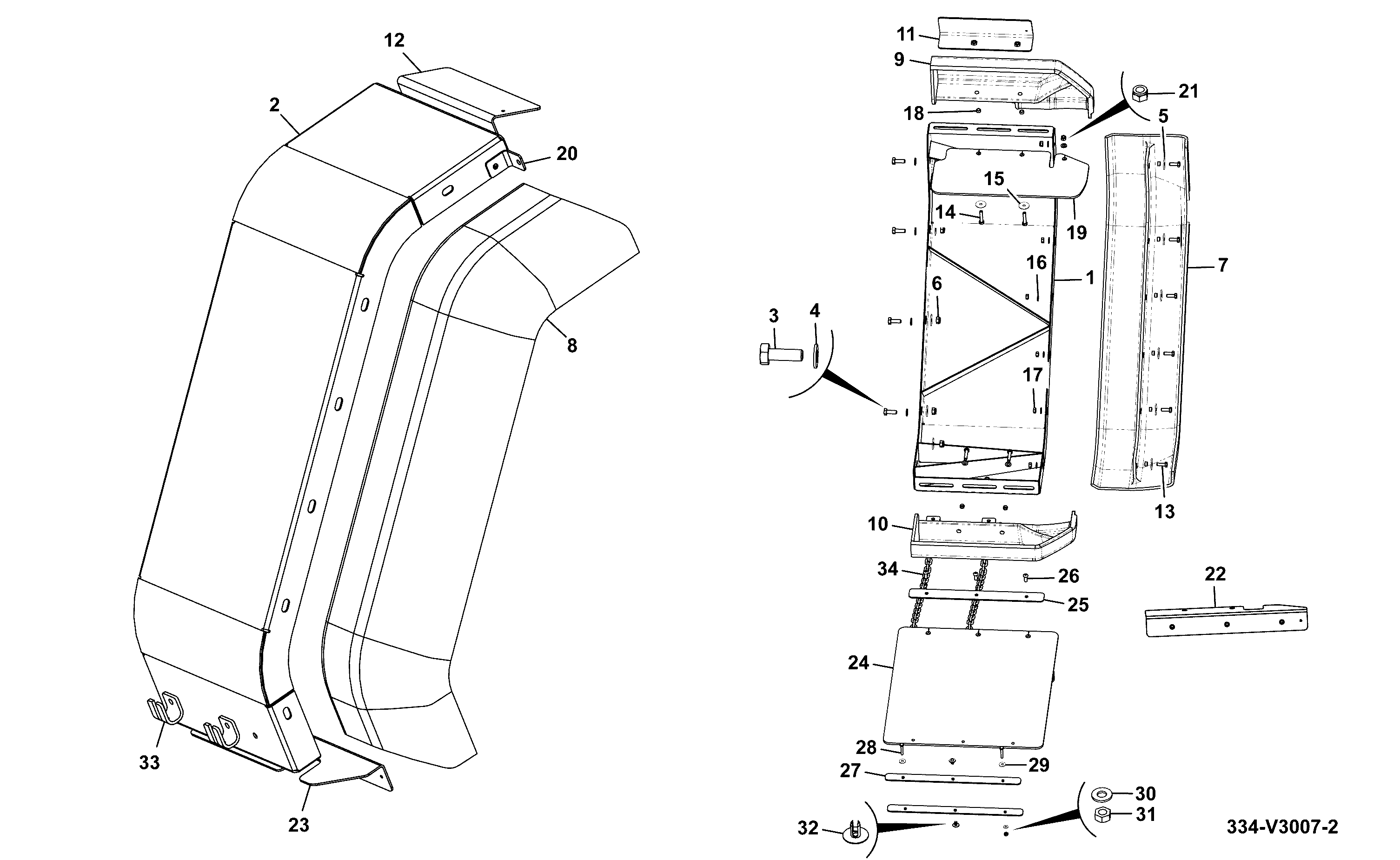

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 427 LH REAR PLASTIC FENDE 336/A4758 | 1 | $1,939.44 | |||
| 2 | 427 RH REAR PLASTIC FENDE 336/A4760 | 1 | $1,939.44 | |||
| 3 | WA PLATE 427 FENDER MOUNT 335/C6466 | 1 | $74.23 | |||
| 5 | SPACER COLLAR 829/31478 | 1 | $20.16 | |||
| 6 | WA REAR LOWER SUPPORT LH 335/D4849 | 1 | $828.89 | |||
| 7 | WA REAR LOWER SUPPORT RH 335/E0847 | 1 | $828.89 | |||
| 8 | WA LH FRONT LOWER SUPPORT 335/A5167 | 1 | $1,048.03 | |||
| 9 | WA RH FRONT LOWER SUPPORT 335/A6202 | 1 | $1,048.03 | |||
| 10 | BOLT M8 x 65 G8.8 (P564) 1315/3315D | 1 | $14.33 | |||
| 11 | BOLT M8x60 (P564) 1315/3314D | 1 | $33.85 | |||
| 12 | WASHER M8 823/00324 | 1 | $2.75 | |||
| 13 | FRONT LUG SPACER 823/10428 | 1 | $245.14 | |||
| 14 | WASHER M_8 LARGE(KANBAN) 823/00322 | 1 | $4.06 | |||
| 15 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 16 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 17 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 18 | WA LH REAR MUDFLAP SUPPOR 336/A5647 | 1 | $197.96 | |||
| 19 | WA RH REAR MUDFLAP SUPPOR 336/A5648 | 1 | $197.96 | |||
| 20 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 21 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 22 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 23 | REAR FENDER SUPPORT BRKT 400/A0939 | 1 | $107.91 | |||
| 24 | BUMP STOP 332/V7730 | 1 | $10.23 | |||
| 25 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 26 | SCREW M8x20 BUTTON SOCKET 826/01486 | 1 | $1.12 | |||
| 27 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 28 | 427 REAR MUDFLAP 20.5 335/A3438 | 1 | $42.50 | |||
| 29 | FRONT MUDFLAP STRIP 334/S1093 | 1 | $24.17 | |||
| 30 | 457 MUDFLAP STIFFENER 334/S1094 | 1 | $33.24 | |||
| 31 | PLASTIC RIVET 826/11330 | 1 | $4.05 | |||
| 32 | SET SCREW M6x35 1315/0209D | 1 | $0.58 | |||
| 33 | WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | |||
| 34 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
| 35 | Horseshoe Bracket 331/19851 | 1 | $118.89 | |||
| 36 | CHAIN, RETENTION 918/10008 | 1 | $54.24 | |||
| 38 | SCREW SOCKET M8x25 LONG 826/01487 | 1 | $10.21 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-B150-130-1-404719 B150-130-1 FENDERS ASSEMBLY REAR 427 - 20.5
View Diagram -
DIAG-B150-140-1-404719 B150-140-1 FENDERS ASSEMBLY FRONT 437 - 20.5
View Diagram -
DIAG-B150-125-1-404719 B150-125-1 FENDERS ASSEMBLY NO REAR 427/437
View Diagram
