Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 4 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 5 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 6 | ROLL DRAWING FOAM STRIP L/H 333/Y0845 | 1 | $10.23 | |||
| 7 | ROLL DRAWING FOAM STRIP R/H 333/Y0864 | 1 | $33.70 | |||
| 9 | WA LH FENDER 332/Y9575 | 1 | $159.53 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-B150-5-1-394869 B150-5-1 FENDERS COVER LH INNER
View Diagram -
DIAG-B150-1-1-394869 B150-1-1 FENDERS COVER RH INNER
View Diagram -

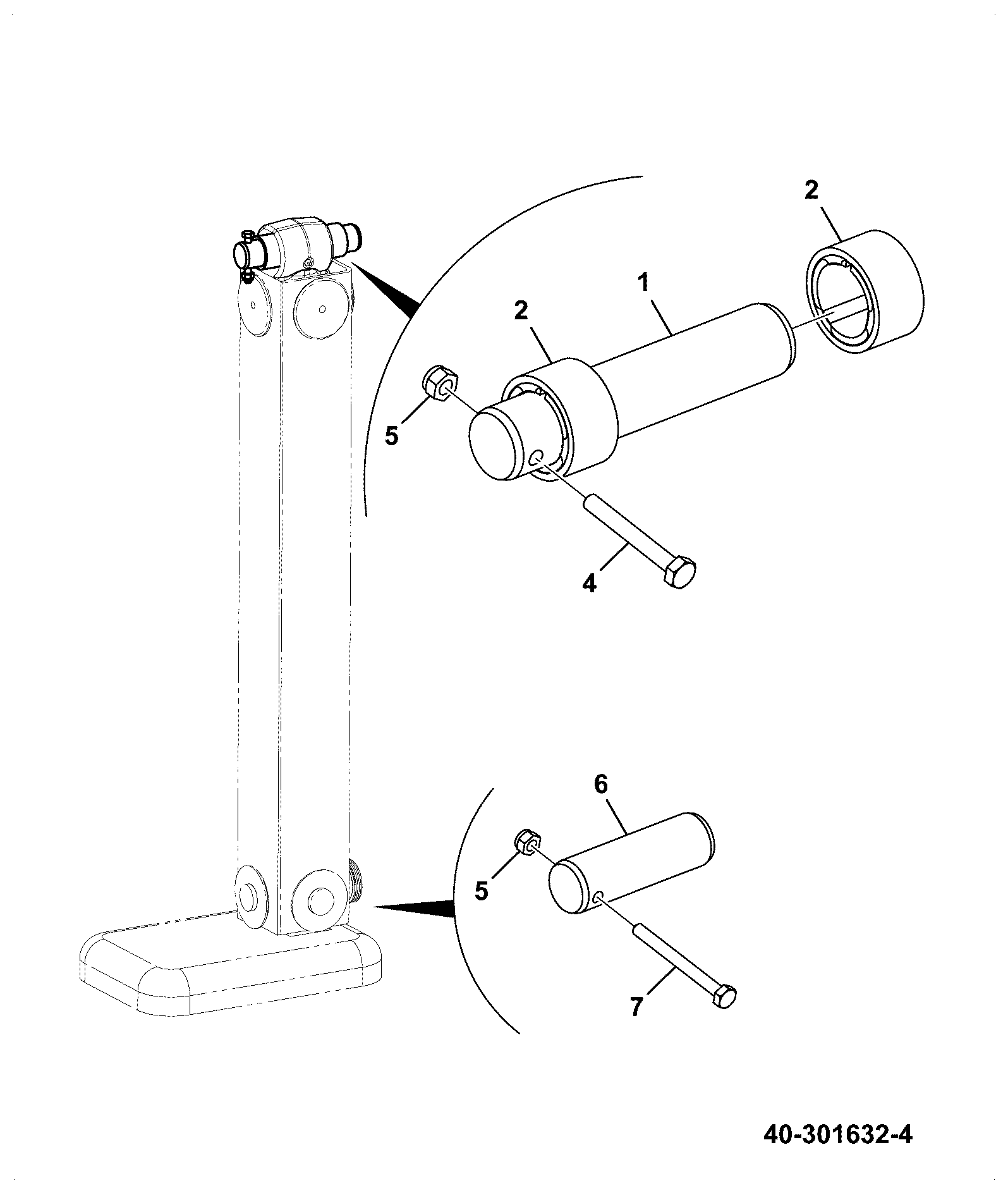

DIAG-B140-25-1-394869 B140-25-1 STABILISERS PIVOT ASSEMBLY
View Diagram
