| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ABI HYD TANK CLEANING P96 401/K8278 | 1 | $2,607.97 | ||||
| 10 | BOLT M_8 L-_20mm FLANGED 1317/3305D | 1 | $1.26 | |||
| 30 | FILL/RETURN CAP 332/C2786 | 1 | $69.11 | |||
| 40 | RFB FILTER - 5 MICRON 402/C4074 | 1 | $415.36 | |||
| 40A | RFB FILTER ELEMENT 401/W2429 | 1 | $308.07 | |||
| 50 | RAIN PLUG - MAGNETIC 816/90465 | 1 | $134.43 | |||
| 70 | GASKET 813/10139 | 1 | $116.91 | |||
| 80 | M8 HEX BOLLHOFF WITH RED (P493) 826/01828 826/11080 | 1 | $7.17 | |||
| 100 | 3/8" BSP PIPE CAP 335/A5031 | 1 | $1.46 | |||
| 110 | COVER PLATE LARGE TANK 333/G6307 | 1 | $173.38 | |||
| 120 | Cap Pipe. 5/8" BSP 335/A5032 | 1 | $2.75 | |||
| 130 | 3/8" BSP PIPE CAP 335/A5039 | 1 | $4.45 | |||
| 140 | 3/8" PIPE RETAINER 335/A5191 | 1 | $6.87 | |||
| 160 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 170 | SUCTION STRAINER 333/G5437 | 1 | $212.07 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

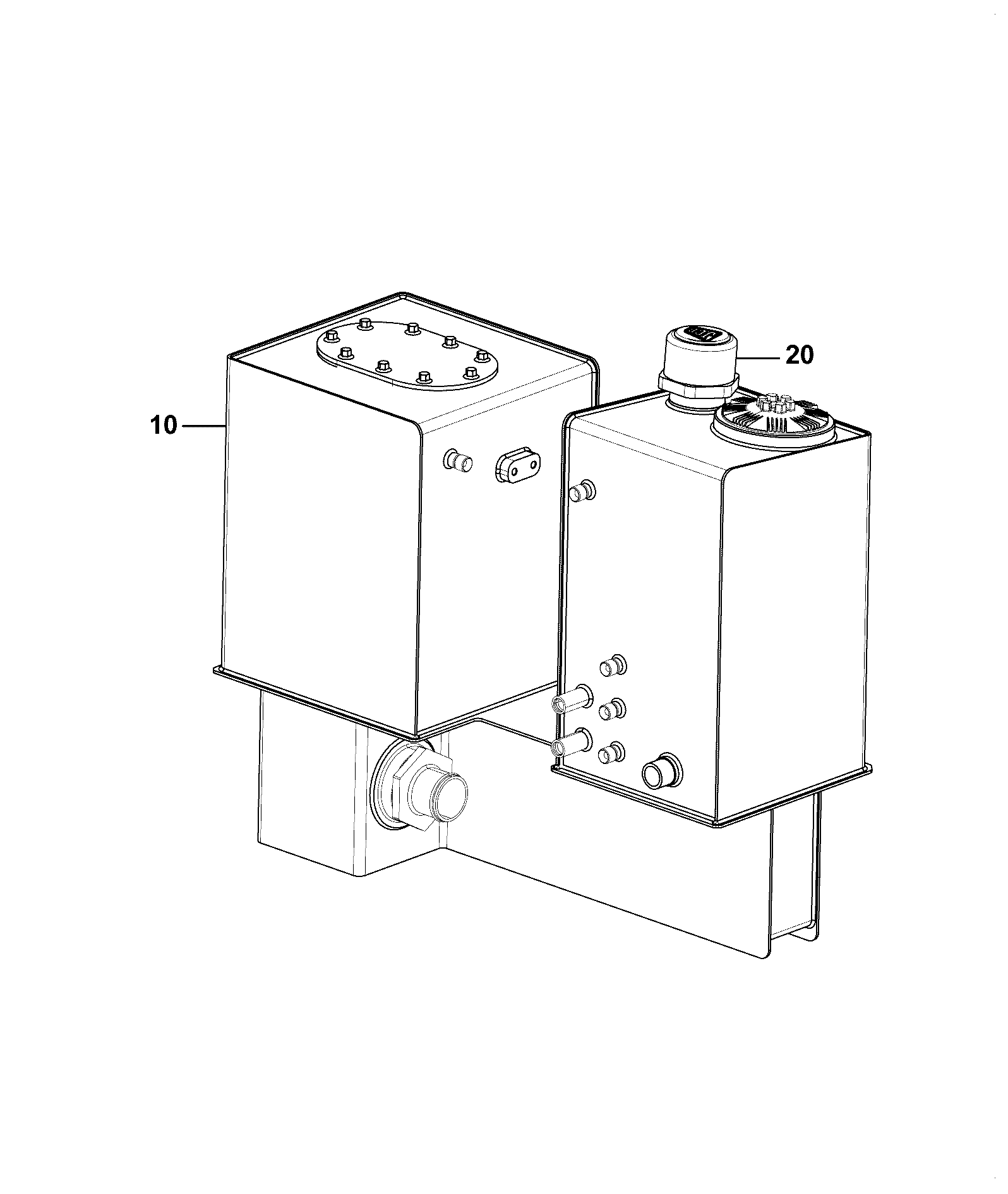

DIAG-B130-5-1-400178 B130-5-1 HYDRAULIC TANK ASSEMBLY
View Diagram -
DIAG-B150-1-1-400178 B150-1-1 FENDERS FRONT RH 16"
View Diagram -

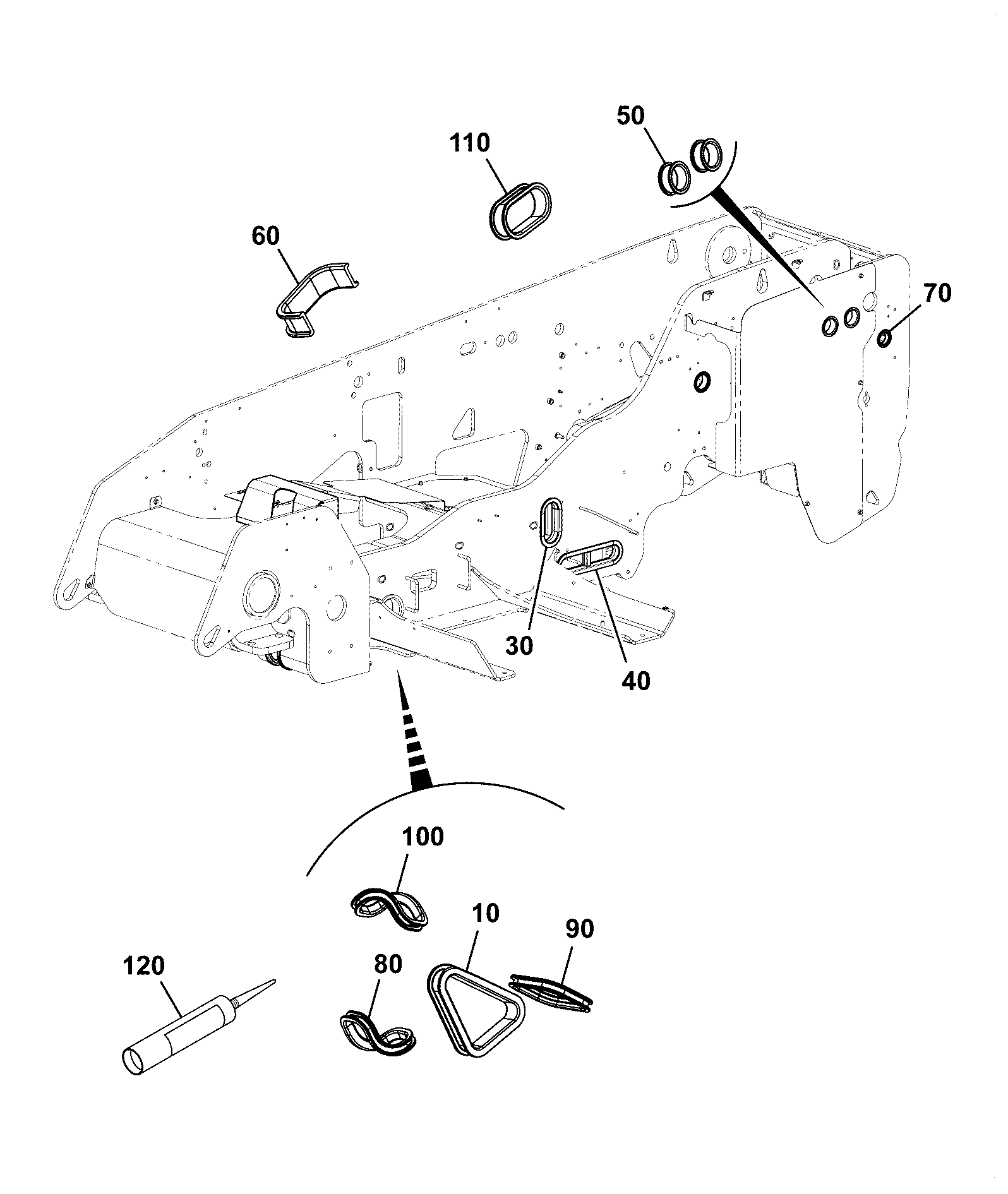

DIAG-B110-50-1-400178 B110-50-1 CHASSIS GROMMETS
View Diagram
