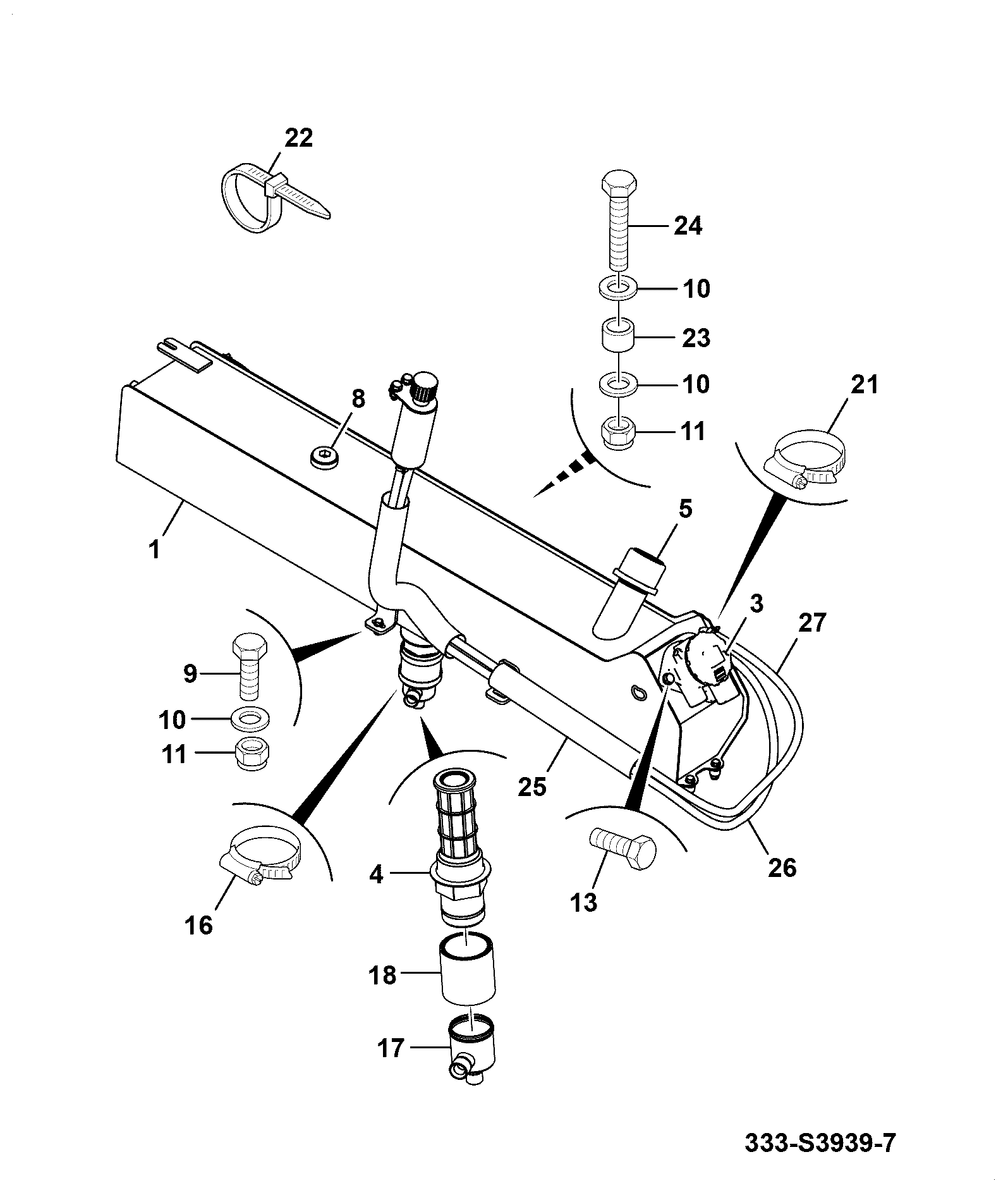

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA HYDRAULIC TANK 334/L9576 | 1 | $1,945.18 | |||
| 3 | HYDRAULIC FILTER (ABI) 332/S1547 | 1 | $406.20 | |||
| 4 | SUCTION STRAINER 332/T4490 | 1 | $305.45 | |||
| 5 | HYDRAULIC FILLER CAP 332/V8100 | 1 | $266.01 | |||
| 8 | DRAIN PLUG 32/925390 | 1 | $60.83 | |||
| 9 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 13 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 14 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 16 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 17 | WA - SUCTION Y 333/R9953 | 1 | $190.71 | |||
| 18 | P527 SUCTION COUPLING 333/S3562 | 1 | $144.45 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 21 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $4.80 | |||
| 22 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 23 | BOSS STEER LEVER 829/30160 | 1 | $3.67 | |||
| 24 | BOLT M8x35 1315/3309D | 1 | $0.89 | |||
| 25 | PVC HOSE 647/02700 | 1 | $278.04 | |||
Showing 1 to 20 of 20 parts
