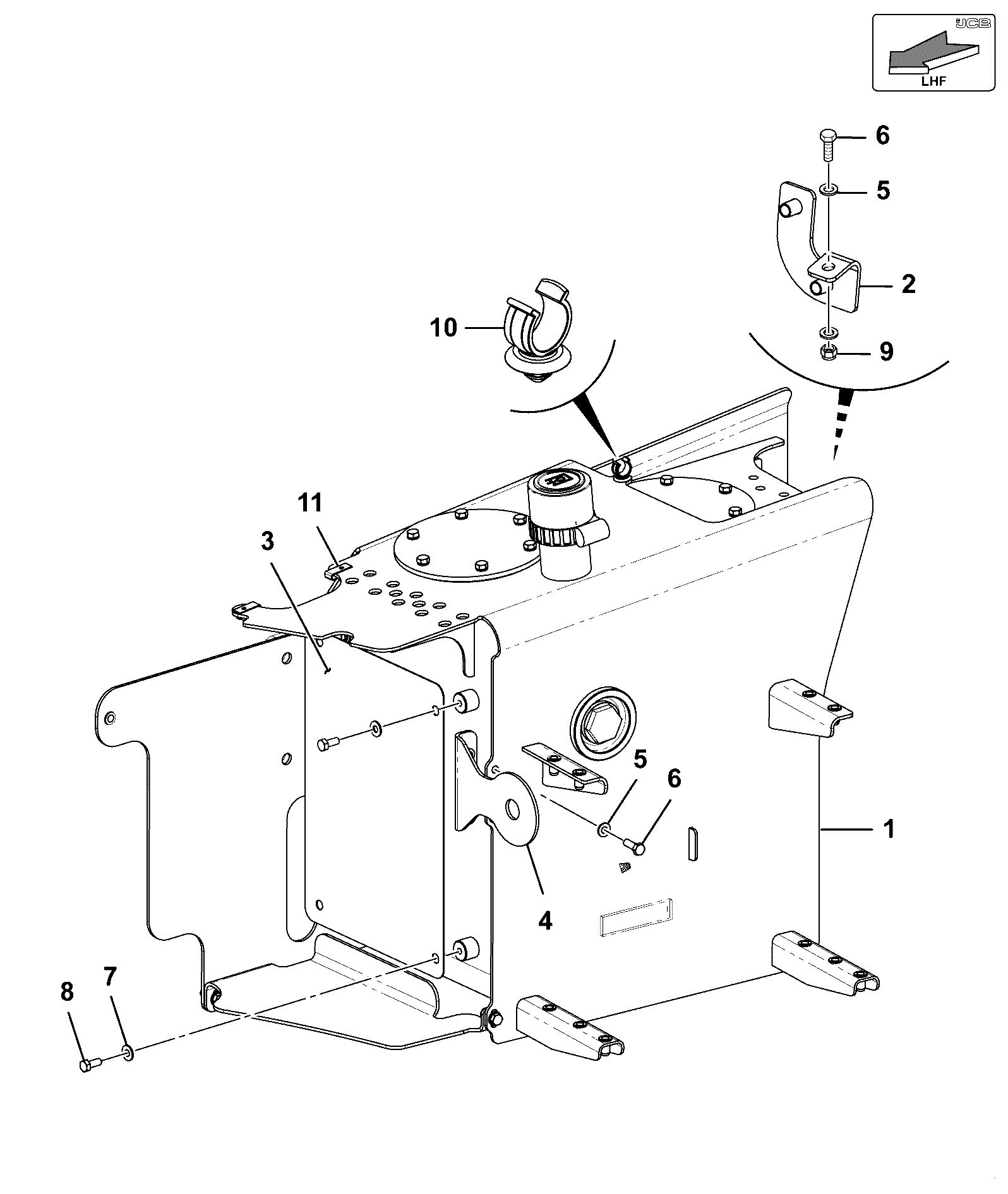

B130-1-1 HYDRAULIC TANK ASSEMBLY TANK, TOOL BOX Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
7	BLANK CAP 1BSP 816/90205	1	AVAILABLE TO ORDER	$37.41	Quantity
8	BOLT 1315/0514Z	1	AVAILABLE TO ORDER	$2.35	Quantity
9	WASHER 823/00589	1	AVAILABLE TO ORDER	$5.00	Quantity
10	NUT RIVET M12 826/01717	1	AVAILABLE TO ORDER	$19.40	Quantity
11	GROMMET 335/E4915	1	AVAILABLE TO ORDER	$1.91	Quantity
12	DRAIN PLUG G1A (MAGNETIC) 403/M8917	1	AVAILABLE TO ORDER	$17.73	Quantity

Showing 1 to 6 of 6 parts
