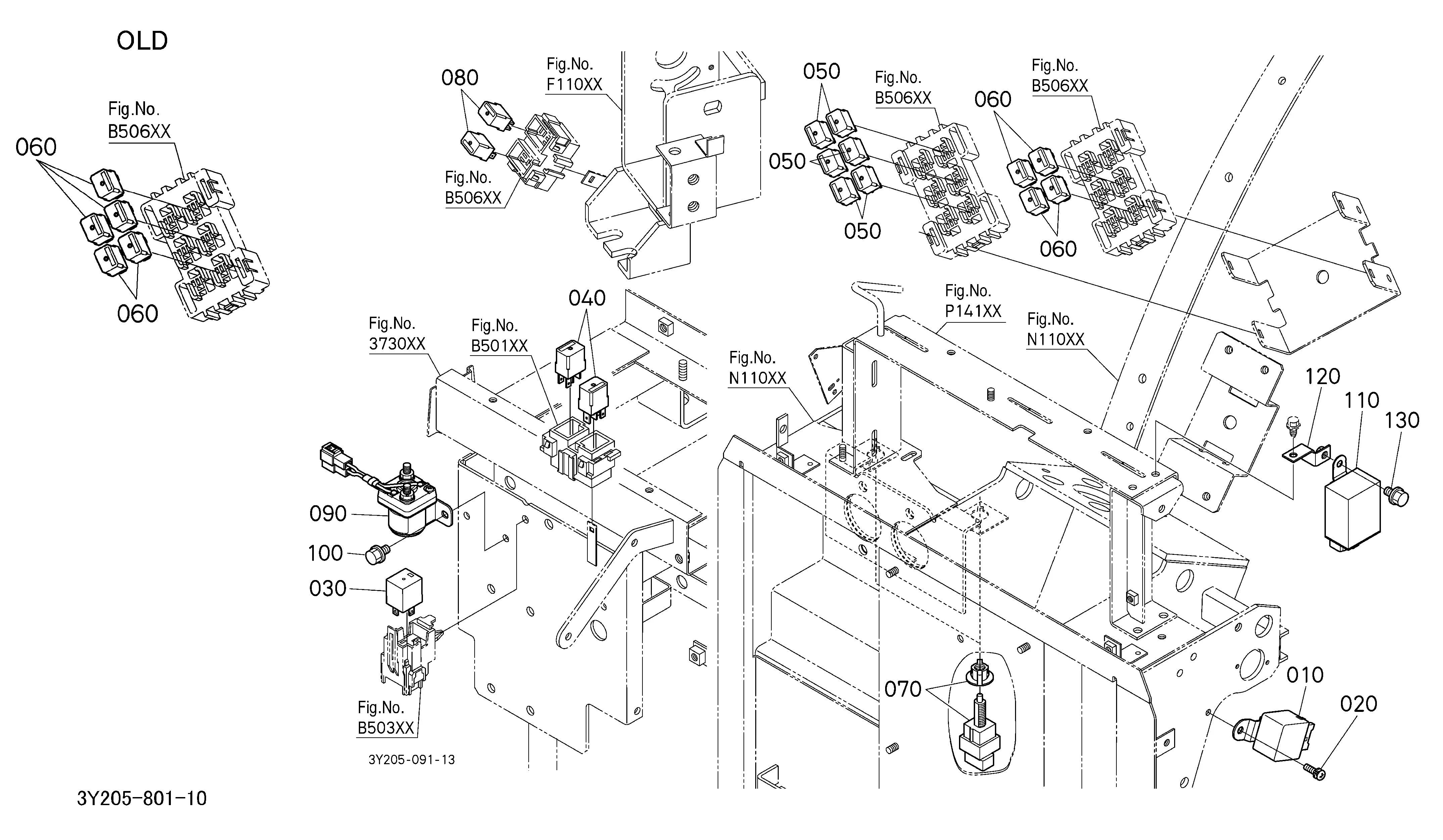

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SWITCH,SHUTTLE 3M750-34620 | 1 | $238.94 | |||
| 020 | SCREW,PAN HD 3Y205-34970 | 1 | $1.06 | |||
| 020 | SCREW,PAN-HEAD 03054-50210 | 1 | $0.26 | |||
| 020 | SCREW,W. WASH. 3T400-34970 | 1 | $1.28 | |||
| 030 | WASHER,SPRING 04512-50020 | 1 | $0.14 | |||
| 040 | Switch T1270-32073 | 1 | $199.68 | |||
| 050 | PLATE T1270-32340 | 1 | $30.93 | |||
| 060 | SCREW, TAPPING 03714-50310 | 1 | $1.06 | |||
| 070 | SCREW 03714-50412 | 1 | $1.06 | |||
| 080 | SCREW, SELF TAPP 03714-50410 | 1 | $1.06 | |||
| 090 | SCREW, W/WASHER 03004-50616 | 1 | $0.64 | |||
| 100 | Main Switch Assembly T0270-81810 | 1 | $109.04 | |||
| 110 | NUT T0270-81830 | 1 | $13.73 | |||
| 120 | STAY,MAIN SW. 3Y205-54810 | 1 | $12.05 | |||
| 130 | M8 Flange Bolt 01754-50816 | 1 | $4.33 | |||
| 140 | KEY(Cab) T0270-81840 | 1 | $16.79 | |||
| 150 | KEY T0270-81820 | 1 | $10.07 | |||
Showing 1 to 17 of 17 parts
