Scroll to zoom Click a part # to view details

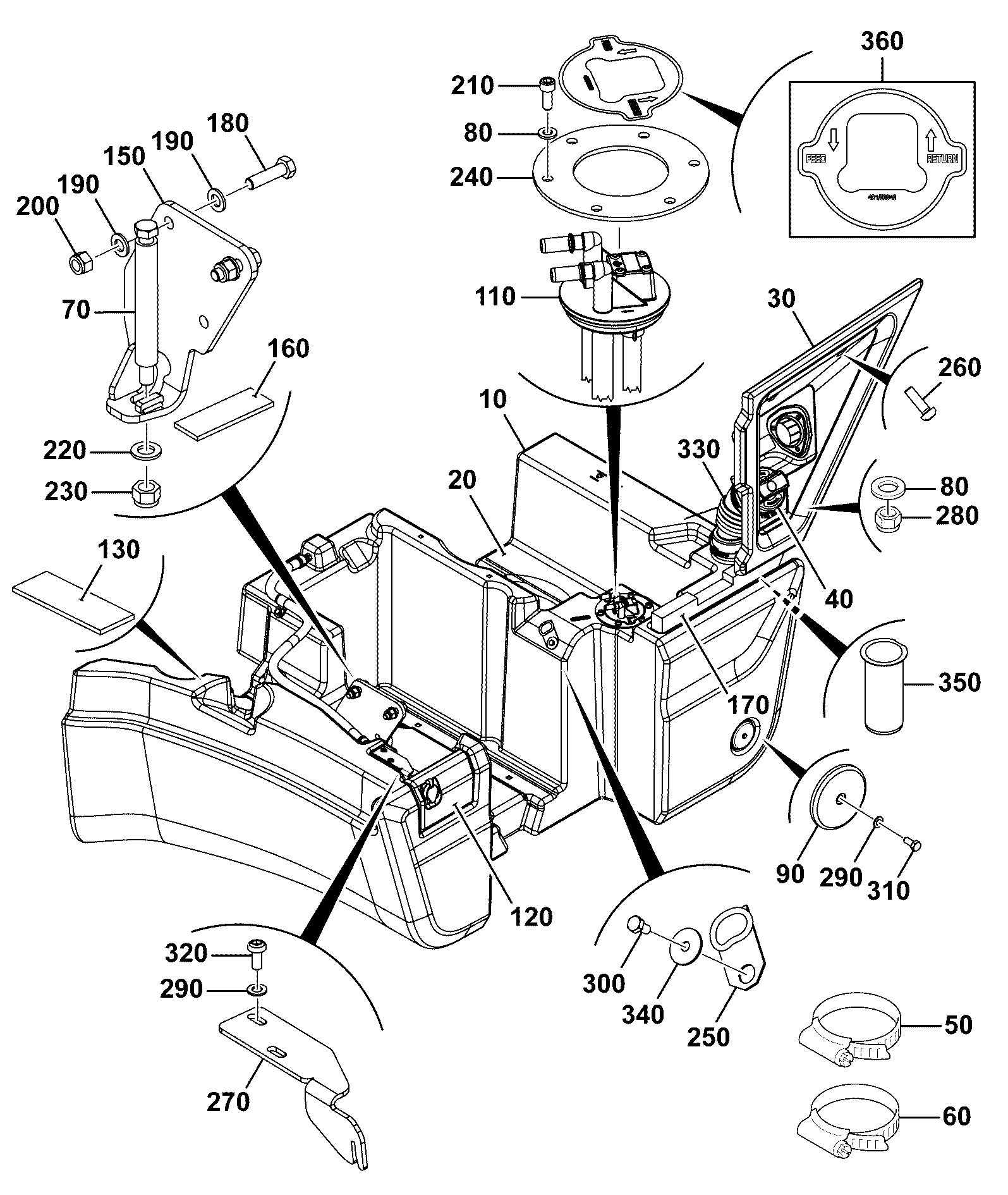

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BOLT M12x45 (P836) 1315/3511D | 1 | $24.59 | ||||
| NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | ||||
| WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | ||||
| 10 | ABI FUEL TANK 401/E1271 | 1 | $1,392.77 | |||
| 20 | RUBBER MAT 162/02789 | 1 | $37.53 | |||
| 30 | (P) FUEL FILLER MOULDING 334/G1819 | 1 | $165.20 | |||
| 40 | ABI DIESEL FILLER CAP VEN BLACK CAP 400/Y6593 | 1 | $74.70 | |||
| 50 | CLIP - WORMDRIVE 80/100mm(KANBAN) 2201/0015 | 1 | $7.00 | |||
| 60 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 90 | REFLECTOR AMBER 700/12500 | 1 | $1.25 | |||
| 130 | MAT FUEL TANK 333/G1692 | 1 | $33.19 | |||
| 150 | WA FUEL TANK SUPPORT 333/D9037 | 1 | $109.14 | |||
| 160 | MAT FUEL TANK 333/G1682 | 1 | $19.24 | |||
| 170 | TANK SEAL REAR CAB UOI 2off 333/H7286 | 1 | $14.55 | |||
| 190 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 200 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 210 | CAP SCREW M6x16 1391/3203D | 1 | $36.97 | |||
| 220 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 230 | M16 LOCK NUT 1370/0603D | 1 | $21.78 | |||
| 240 | PLATE LOCKING RING FUEL SENDER 332/G0896 | 1 | $23.59 | |||
| 250 | WA HARNESS TIE PLATE SILVER 264/36400 | 1 | $26.07 | |||
| 260 | CAP SCREW M6x20 SPECIAL 826/00902 | 1 | $1.25 | |||
| 270 | WASHER LID LOCK BRACKET 334/G2980 | 1 | $68.30 | |||
| 290 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 300 | SET-SCREW M_6 L-_12mm 1315/0201D | 1 | $0.68 | |||
| 310 | SET-SCREW 1315/0101D | 1 | $5.00 | |||
| 320 | SCREW BUTTON HEAD 826/01488 | 1 | $3.09 | |||
| 330 | HOSE DIESEL FILL 400/G9993 | 1 | $64.14 | |||
| 340 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 350 | STRAINER - DIESEL FILLER 400/Z6523 | 1 | $20.67 | |||
| 360 | FUEL HOSE DECAL 401/E3543 | 1 | $1.91 | |||
| 370 | MK/L LINK LEAD HARNESS 721/U0217 | 1 | $46.57 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-
DIAG-B120-40-1-402885 B120-40-1 FUEL TANK INSTALLATION
View Diagram -
DIAG-B130-10-1-402885 B130-10-1 HYDRAULIC TANK COMPONENTS HMH
View Diagram -

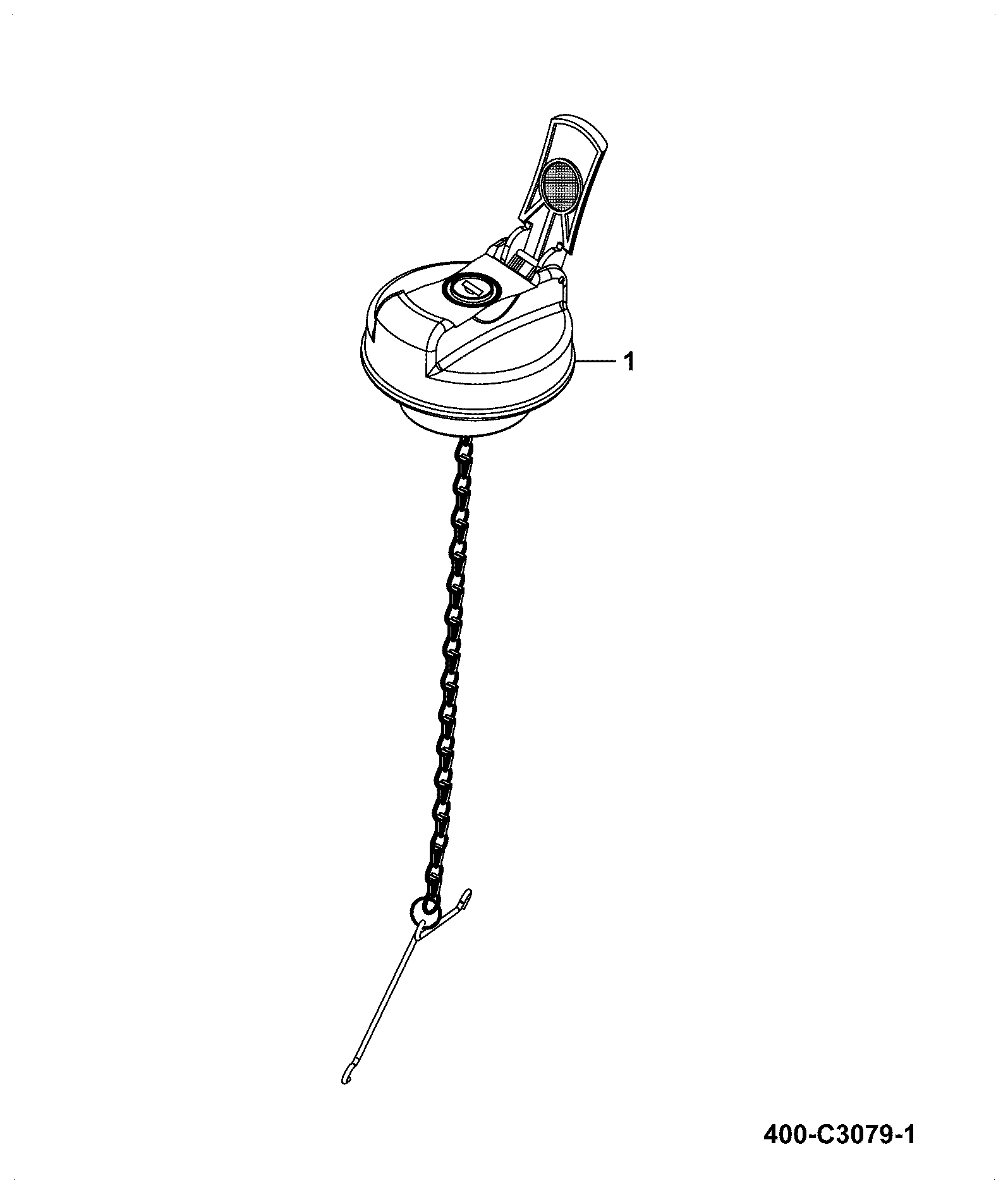

DIAG-B120-6-1-402885 B120-6-1 FUEL TANK DIESEL VENTED CAP, GREEN
View Diagram
