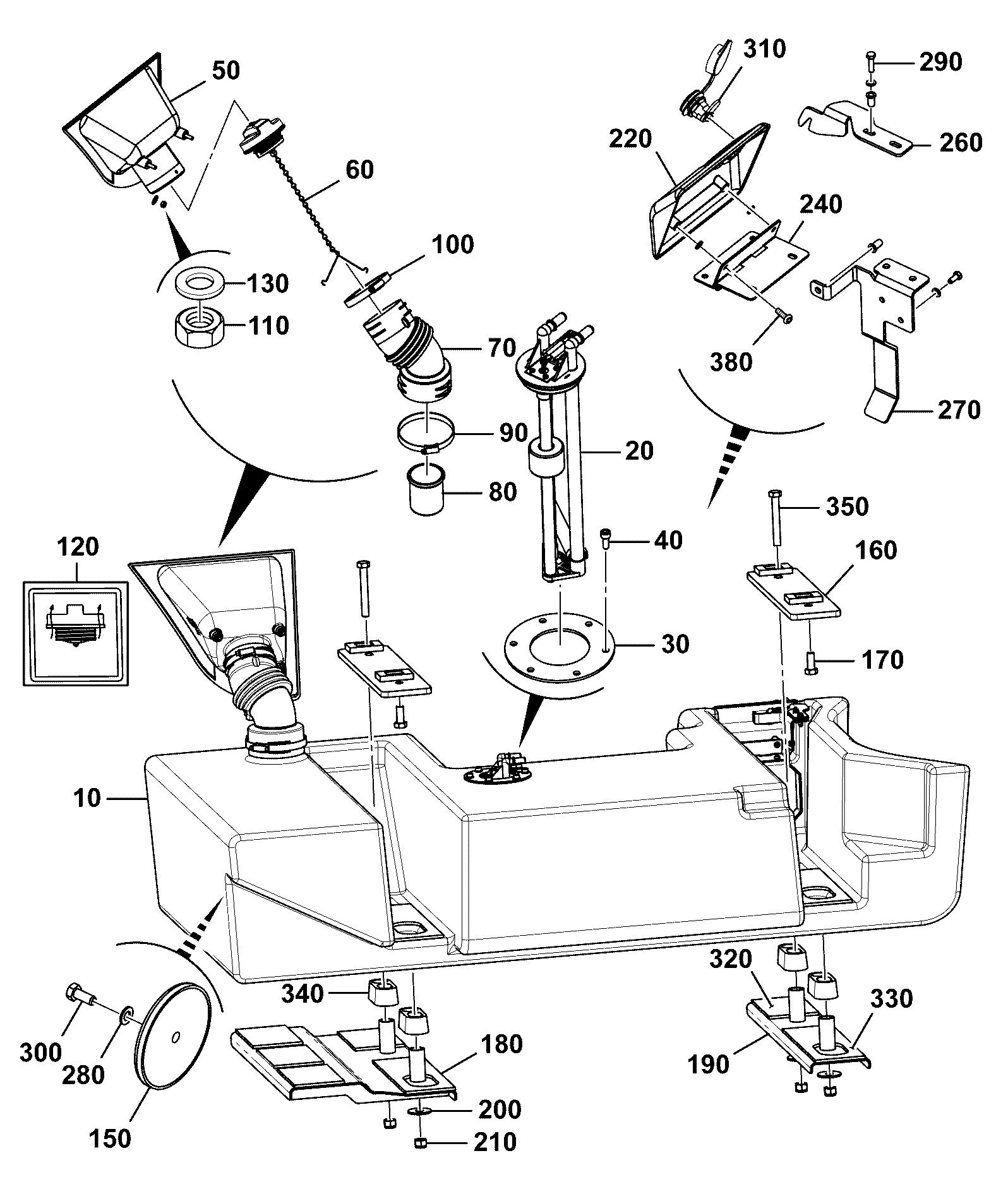

B120-35-1 FUEL TANK DETAILS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	MOULDING FUEL TANK 334/C0126	1	AVAILABLE TO ORDER	$1,175.32	Quantity
20	PLUG 1/2 UNF O-RING BOSS(KANBAN) 816/90702	1	AVAILABLE TO ORDER	$24.03	Quantity

Showing 1 to 2 of 2 parts

DIAG-B120-30-1-402143 B120-30-1 FUEL TANK INSTALLATION
View Diagram
DIAG-B100-145-1-402143 B100-145-1 BODYWORK INSTALLATION ASSEMBLIES CHASSIS FIXED , LOW CAB PROFILE
View Diagram
DIAG-B150-20-1-402143 B150-20-1 FENDERS INSTALLATION LOW CAB PROFILE
View Diagram
