B120-1-1 FUEL TANK DETAILS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA FUEL TANK ABI 332/F5436	1	AVAILABLE TO ORDER	$1,006.22	Quantity
2	PLUG 1/2 UNF O-RING BOSS(KANBAN) 816/90702	1	AVAILABLE TO ORDER	$24.03	Quantity

Showing 1 to 2 of 2 parts

DIAG-B110-86-5-400289 B110-86-5 CHASSIS ASSEMBLY SWAY, STABILISER, T2/3 & T4i
View Diagram
DIAG-B110-86-1-400289 B110-86-1 CHASSIS ASSEMBLY SWAY, STABILISER, T2/3 & T4i
View Diagram

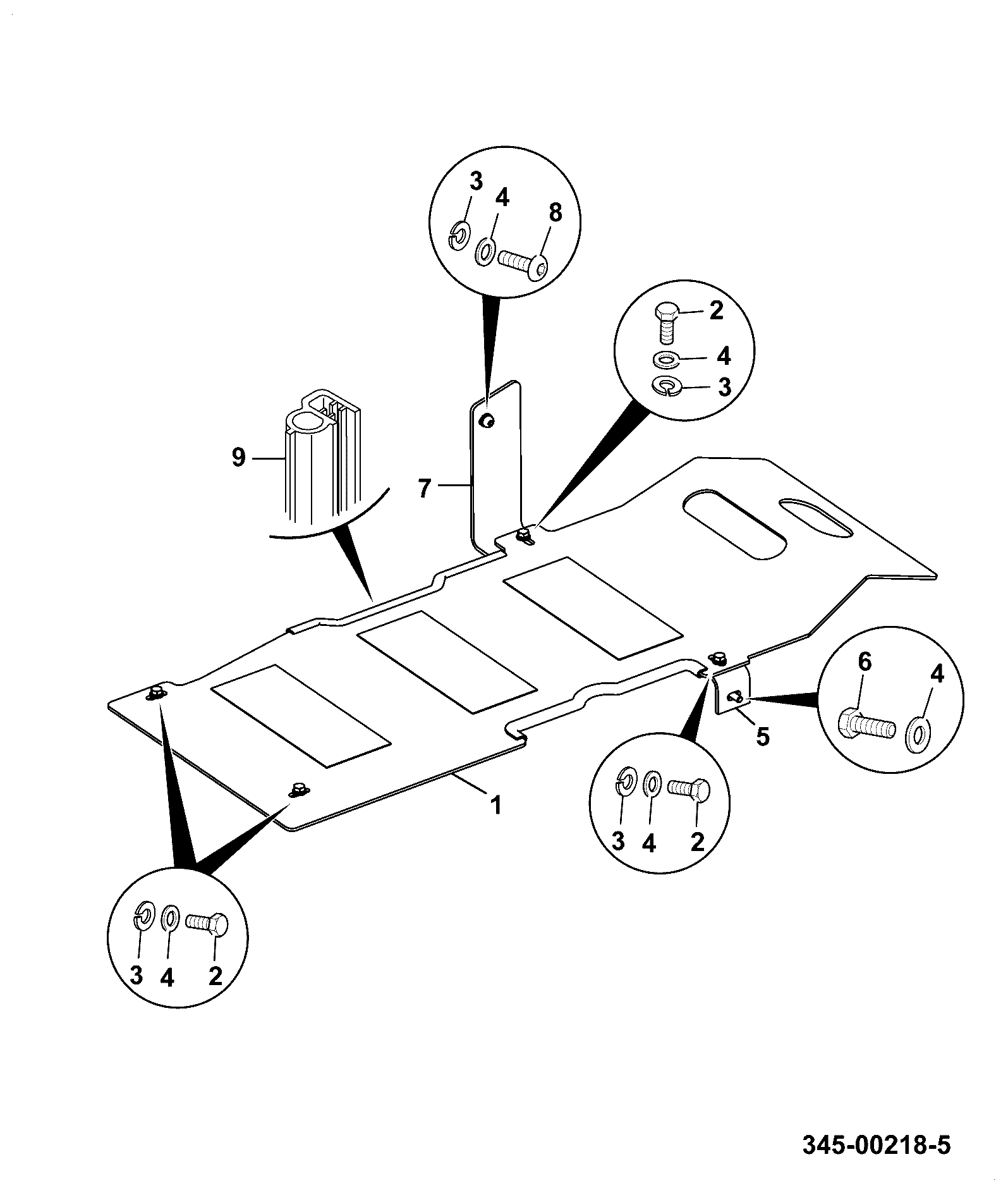

DIAG-B110-50-1-400289 B110-50-1 CHASSIS DECKPLATE
View Diagram
