Kubota SQ-3250-USA-SW B11001 CONTROL PANEL (1) Parts Diagram

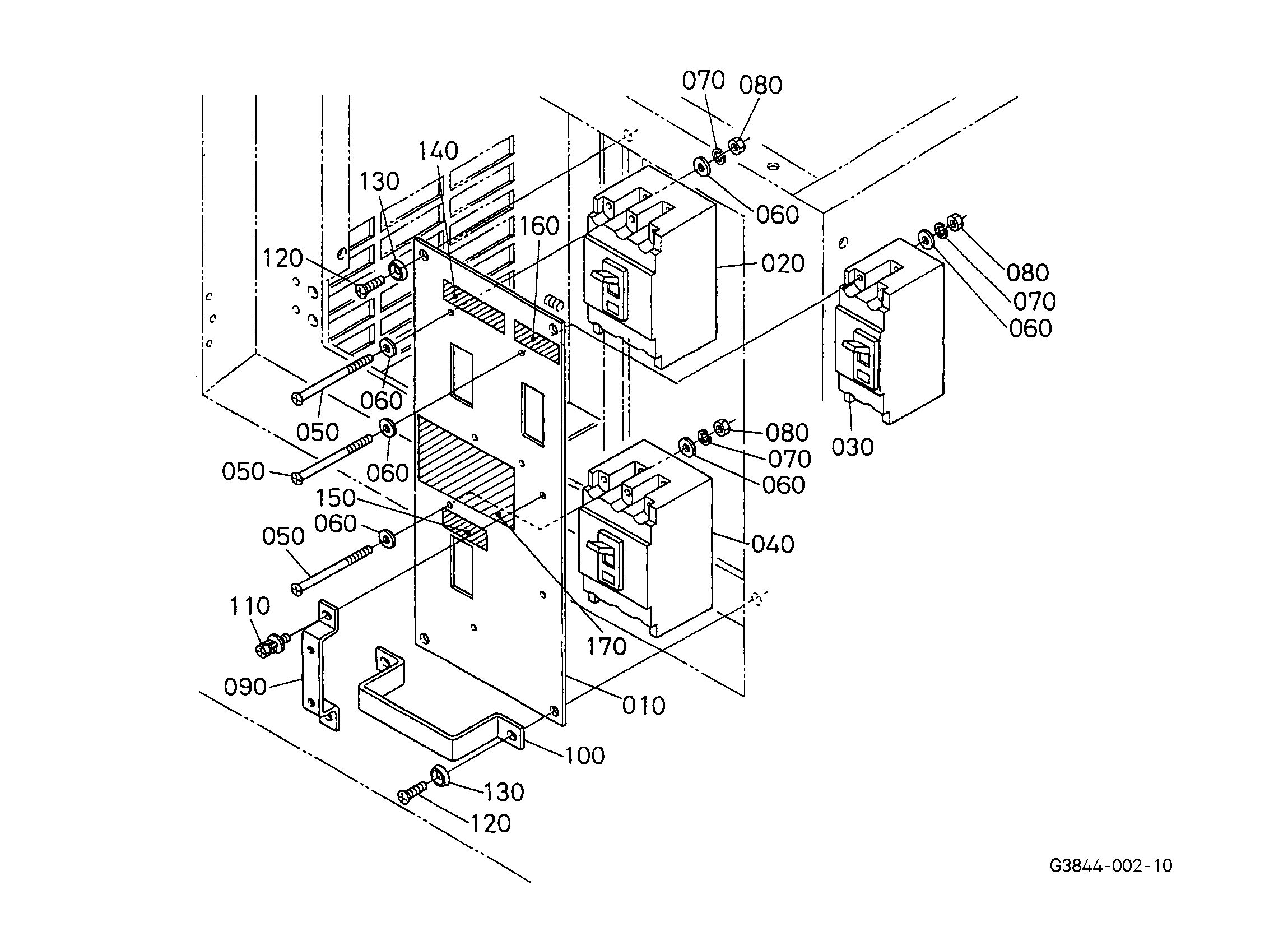

Exploded-view parts diagram "B11001 CONTROL PANEL (1)" for the Kubota SQ-3250-USA-SW. 25 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
LAMP ASSY, COMBI G3600-70200 1 AVAILABLE TO ORDER $170.22
METER, FUEL 66908-54750 1 AVAILABLE TO ORDER $120.15
010 PLATE PANEL G3844-03310 Discontinued 1 NO LONGER AVAILABLE $380.07
020 METER, VOLT G3703-03550 1 AVAILABLE TO ORDER $165.21
030 METER AMPERE G3844-03690 Discontinued 1 NO LONGER AVAILABLE $328.89
040 METER, HZ G3700-03610 1 AVAILABLE TO ORDER $423.88
050 WASHER, PLAIN 04013-50030 1 9 IN STOCK $0.23
060 WASHER, SPRING 04512-50030 1 AVAILABLE TO ORDER $0.23
070 NUT 02054-50030 02054-70030 1 AVAILABLE TO ORDER $0.60
080 LAMP, PILOT G3700-03900 1 AVAILABLE TO ORDER $100.61
090 SWITCH, A-CHANGE G3700-03880 Discontinued 1 NO LONGER AVAILABLE $121.31
100 SCREW, W/ WASHER 03034-50516 1 7 IN STOCK $0.36
110 TRIMMER, HAND CO G3810-03870 1 AVAILABLE TO ORDER $329.45
120 METER, HOUR G3700-61350 Discontinued 1 NO LONGER AVAILABLE $265.52
130 SCREW, PAN HEAD 03054-50316 1 AVAILABLE TO ORDER $0.44
150 LABEL, VOLTAGE G3700-88540 1 AVAILABLE TO ORDER $5.60
160 SCREW G3810-97120 1 AVAILABLE TO ORDER $13.82
170 WASHER G3810-97130 1 AVAILABLE TO ORDER $13.56
180 ASSY HIGE PANEL G3810-30380 Discontinued 1 NO LONGER AVAILABLE $61.17
190 SCREW, W/WASHER 03034-50410 1 6 IN STOCK $0.35
200 SCREW, CSK-HD 03056-60412 03056-50412 1 AVAILABLE TO ORDER $0.34
210 STARTER SWITCH A 15248-63590 1 AVAILABLE TO ORDER $96.79
220 Ignition Key Set (2 Keys) 15248-63700 1 14 IN STOCK $13.34
230 STARTER SWITCH L 11420-87520 1 AVAILABLE TO ORDER $4.46
260 NAME PLATE G3844-88110 Discontinued 1 NO LONGER AVAILABLE $13.70

Showing 1 to 25 of 25 parts
