Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | BUSH BI-METALLIC 332/L3544 | 1 | $43.66 | |||
| 4 | BUSH BI-METALLIC 332/L3550 | 1 | $27.84 | |||
| 6 | BREATHER 453/11701 335/B1629 | 1 | $10.72 | |||
| 7 | PLUG 3/4 "O RING BOSS 1745/0003 | 1 | $2.56 | |||
| 9 | PLATE-LATCH MOUNT 332/X4582 | 1 | $122.71 | |||
| 10 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 11 | SET SCREW M12X20 1315/0505Z | 1 | $2.18 | |||
| 12 | FASTENER, M8 HEX OPEN ENDED (BR3) 826/11070 | 1 | $5.19 | |||
| 14 | SCREW M8x20 BUTTON HD. (P564) 826/11046 | 1 | $24.29 | |||
| 15 | SET SCREW M10x20 1316/0405Z | 1 | $1.64 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | FLANGED BOLT M8x20(KANBAN) (BR3) 1317/3305Z | 1 | $0.98 | |||
| 21 | LYNCH PIN - 1/4" 826/00600 | 1 | $8.07 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

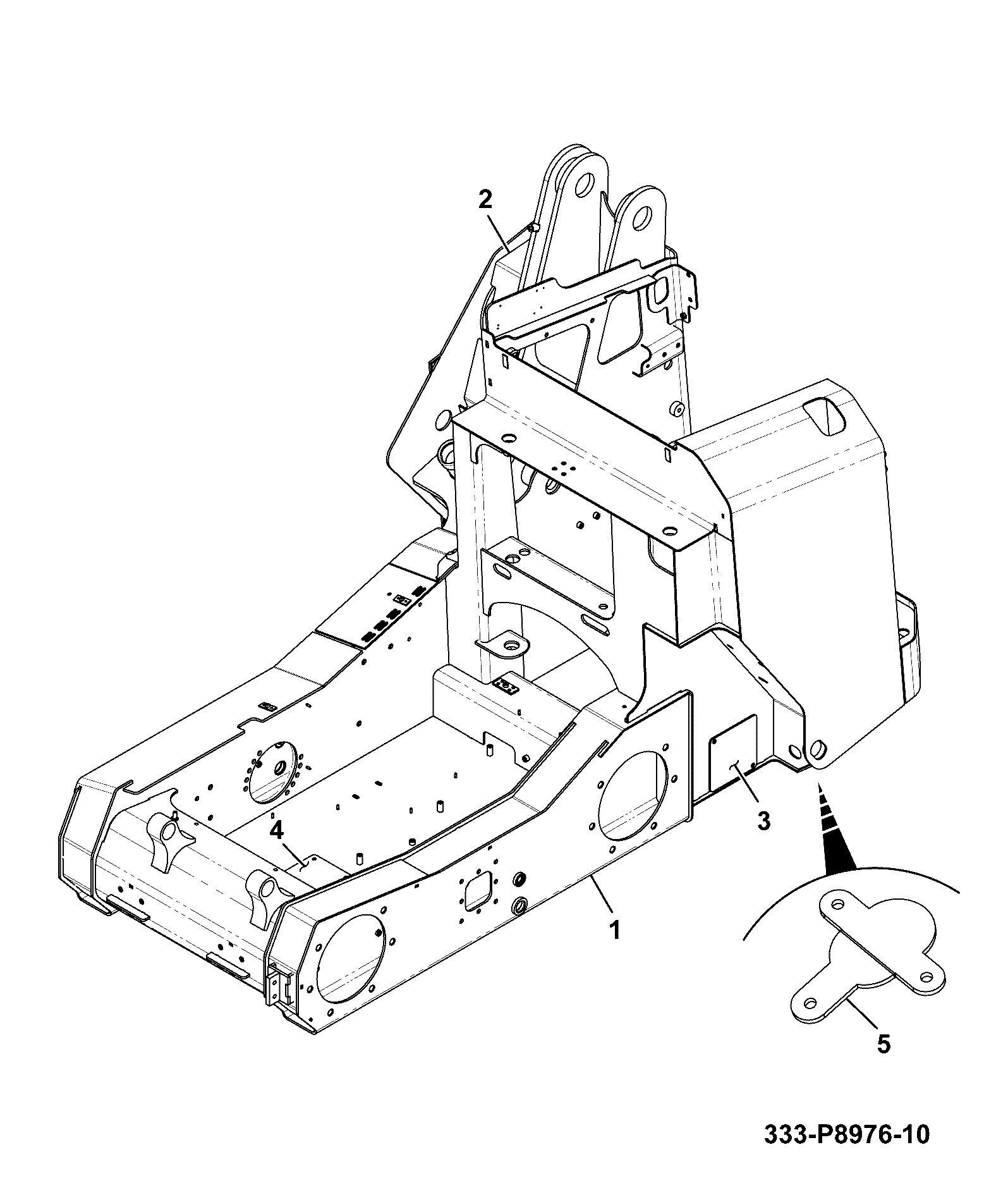

DIAG-B110-1-1-395193 B110-1-1 CHASSIS ASSEMBLY RADIAL LIFT,JCB YELLOW,SP
View Diagram -
DIAG-B110-20-5-395193 B110-20-5 CHASSIS FITTINGS & MOUNTINGS RADIAL LIFT,SP
View Diagram -
DIAG-A990-15-1-395193 A990-15-1 OTHER MISCELLANEOUS ITEMS TRAVEL STRUT,RADIAL LIFT,SP
View Diagram
