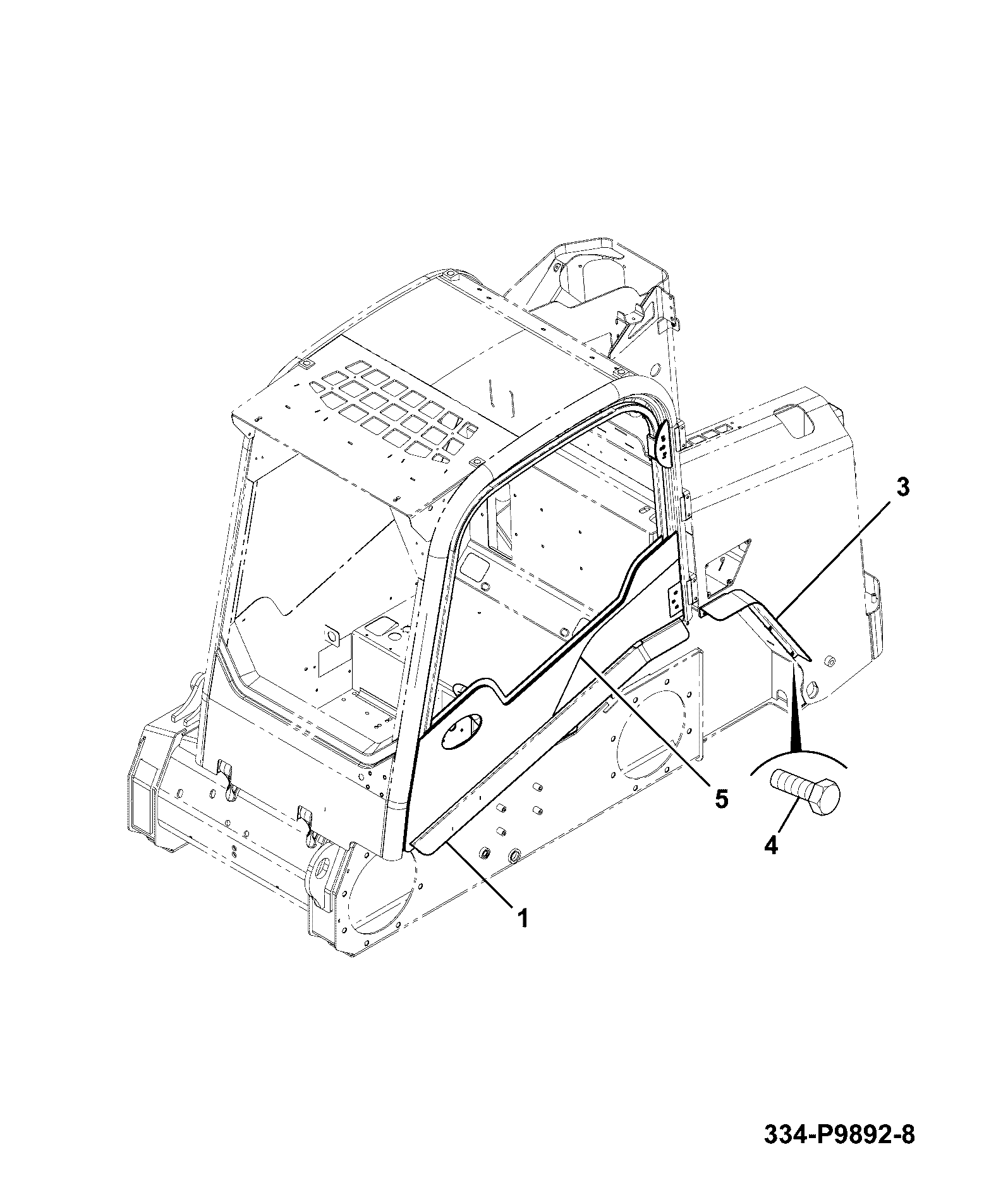

B110-115-1 CHASSIS ASSEMBLY VERTICAL LIFT,WHEELED,VOLVO,YELLOW,TIER 4 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	COVER PLT FRONT - VOLVO Y 332/L1009	1	AVAILABLE TO ORDER	$157.36	Quantity
5	COVER TOOLBOX VL VOLVO YE 332/X5143	1	AVAILABLE TO ORDER	$373.76	Quantity

Showing 1 to 2 of 2 parts
