Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 5 | SCREW 1391/3711 | 1 | $3.17 | |||
| 6 | WASHER JHP0044 | 1 | $5.17 | |||
| 7 | BOLT M20 x 100 G8.8 1315/3820D | 1 | $11.63 | |||
| 8 | WA REAR LATCH PLATE 333/L2660 | 1 | $64.69 | |||
| 9 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 10 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 12 | BOLT M16x80 1316/3718D | 1 | $16.72 | |||
| 13 | M16 Hardened Washer JHP0043 | 1 | $2.17 | |||
| 14 | BEARING 60-70-40 809/00134 | 1 | $203.62 | |||
| 16 | Plate clamp 234/03007 | 1 | $33.17 | |||
| 17 | LINER BEARING (50X52) 809/00114 333/R9310 | 1 | $31.39 | |||
| 18 | HOSE CLAMP 650/10299 | 1 | $1.32 | |||
| 19 | Capscrew 1391/3216D | 1 | $2.15 | |||
| 20 | HOSE CLAMP PLATE 650/10300 | 1 | $3.26 | |||
| 24 | BOLT SPECIAL M8X90 1315/3319D | 1 | $6.83 | |||
| 25 | 8061 SLEW RING 333/L7577 | 1 | $3,915.81 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 27 | BUTTON HEAD SCREW 826/11115 | 1 | $4.93 | |||
| 28 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 30 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 34 | RUBBER BUFFER - M8 331/36544 | 1 | $23.93 | |||
| 35 | RUBBER EDGING TRIM 331/18879 331/15167 | 1 | $23.40 | |||
| 36 | EDGE TRIM.RUBBER.490mm LG 331/18073 | 1 | $6.29 | |||
| 37 | EDGING STRIP - 30M ROLL JLJ0471 | 1 | $570.67 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

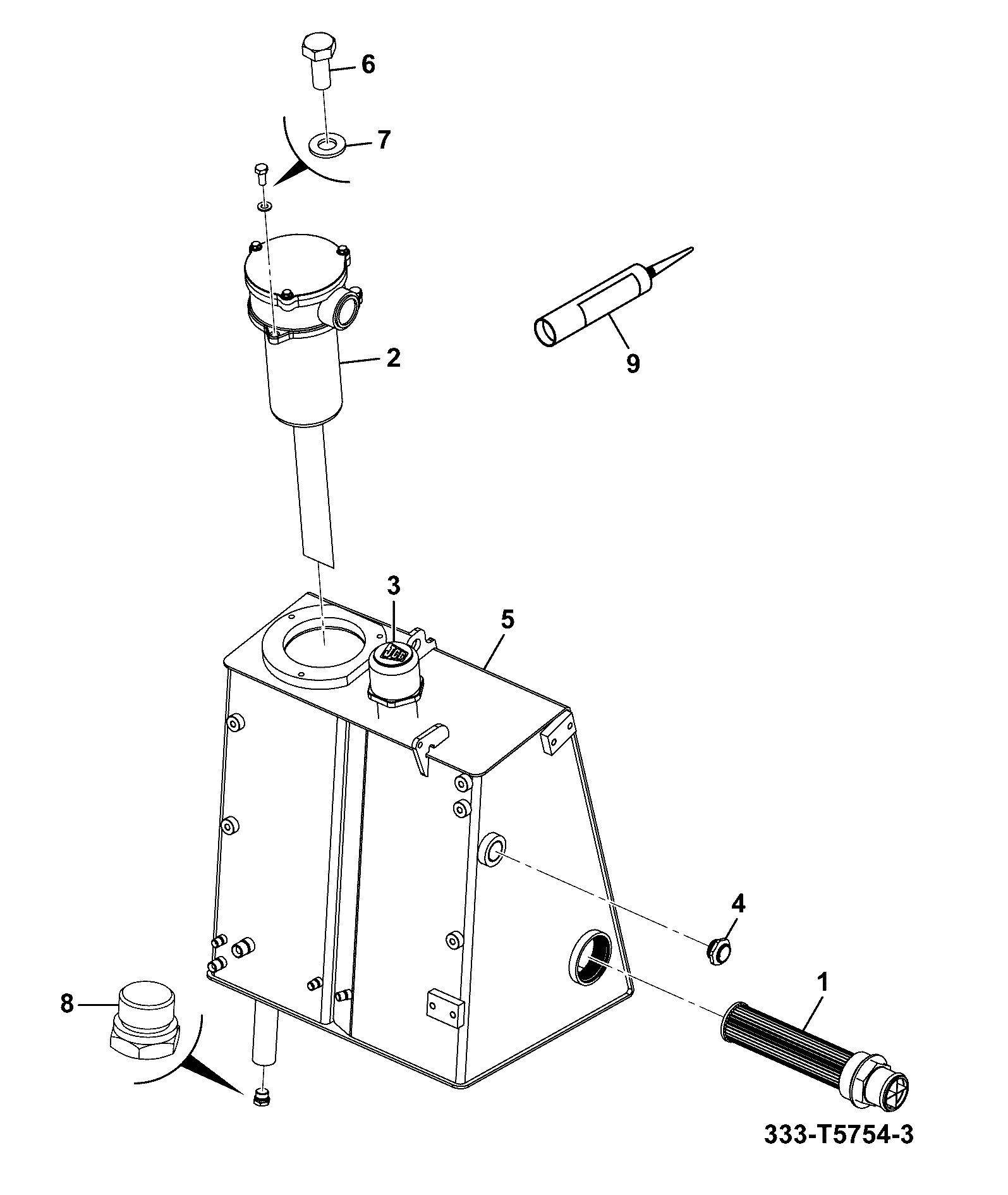

DIAG-B130-1-5-398192 B130-1-5 HYDRAULIC TANK ASSEMBLY
View Diagram -
DIAG-B130-1-10-398192 B130-1-10 HYDRAULIC TANK ASSEMBLY
View Diagram -

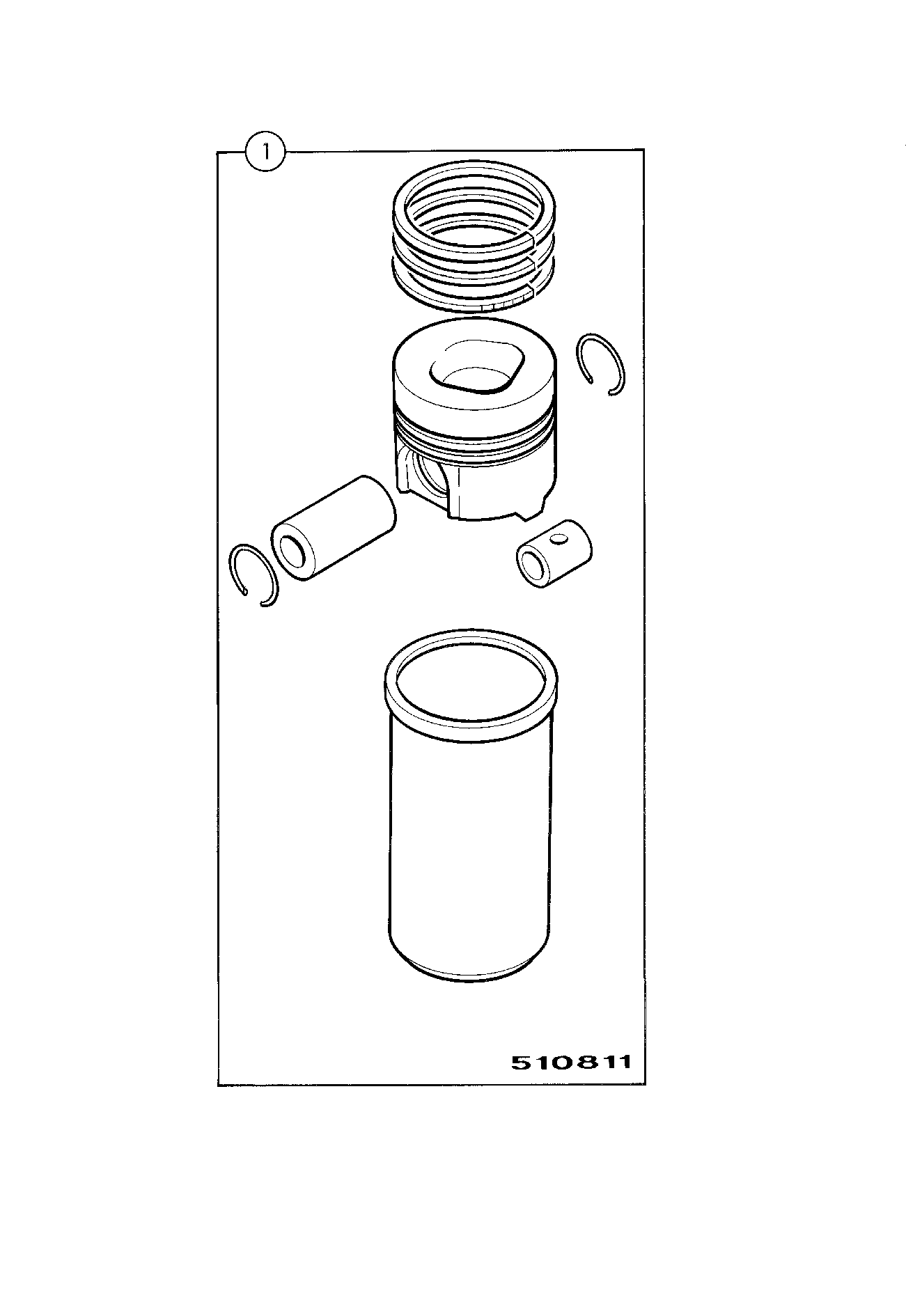

DIAG-V940-1-1-398191 V940-1-1 KIT ENGINE OVERHAUL PISTON & LINER
View Diagram
