Kubota ZD221 B10702 CONTROLLER/RELAY/HORN Parts Diagram

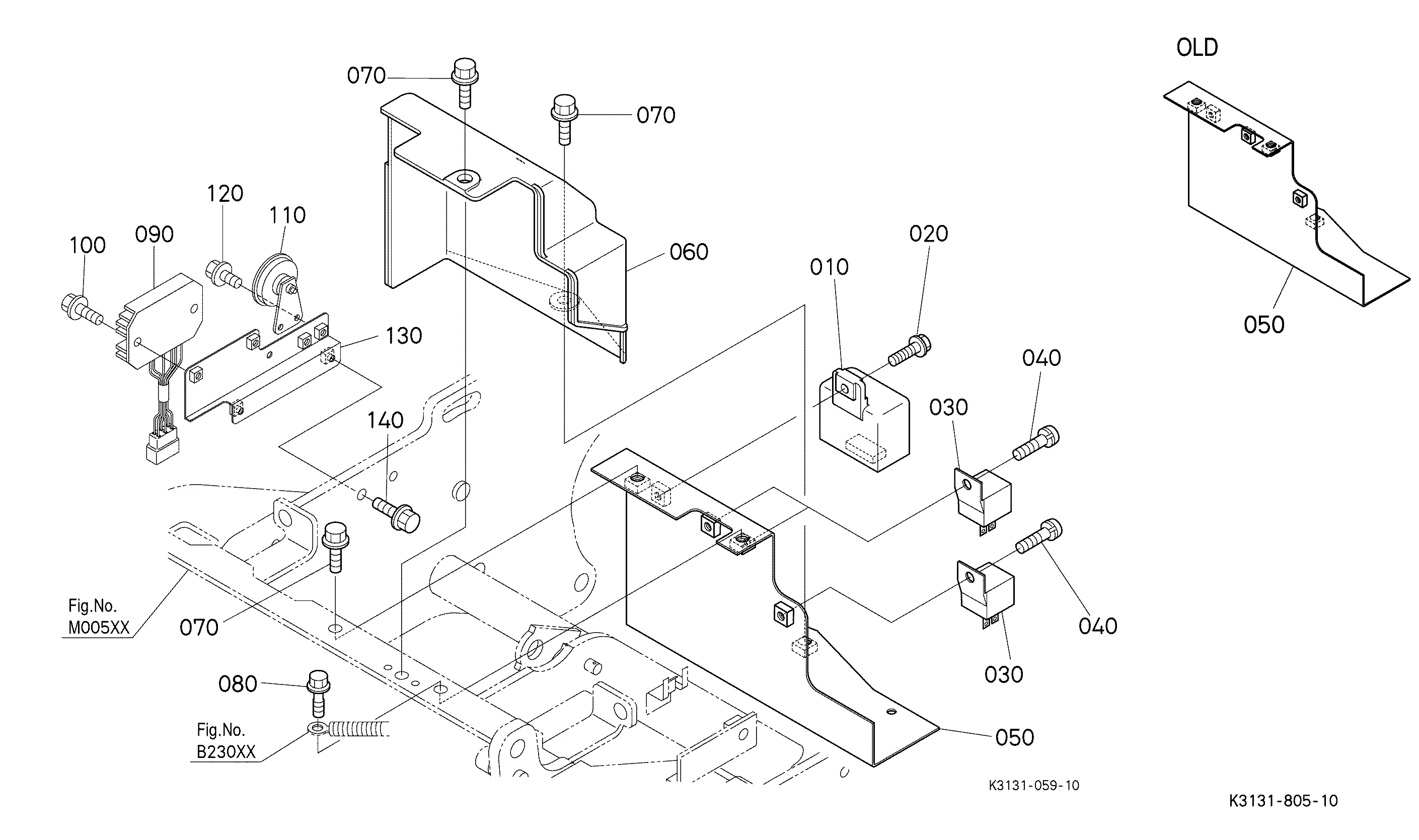

Exploded-view parts diagram "B10702 CONTROLLER/RELAY/HORN" for the Kubota ZD221. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CONTROLLER K3181-62320 | 1 | $386.50 | |||
| 020 | Flange Bolt 01754-50620 | 1 | $2.95 | |||
| 030 | Electrical Relay K1122-62260 K3181-62330 | 1 | $16.20 | |||
| 040 | SCREW 03024-50516 | 1 | $0.60 | |||
| 050 | STAY (RELAY) K3272-61470 | 1 | $35.91 | |||
| 060 | COVER, RELAY K3271-61480 | 1 | $11.63 | |||
| 070 | Flange Bolt - M8 x 1.25 x 20 mm 01754-50820 | 1 | $4.70 | |||
| 080 | BOLT T1060-30370 | 1 | $1.91 | |||
| 090 | ASSY REGULATOR * PN201-68563 Discontinued | 1 | $77.39 | |||
| 090 | Regulator PN201-68562 Discontinued | 1 | $99.17 | |||
| 090 | Regulator Assembly 5H215-41955 PN201-68564 | 1 | $212.50 | |||
| 110 | HORN K7501-61550 | 1 | $13.90 | |||
| 110 | HORN T2350-55500 T2350-55503 | 1 | $77.11 | |||
| 120 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 130 | STAY, HORN * K3131-62470 K3131-62472 | 1 | $76.31 | |||
Showing 1 to 15 of 15 parts
