Kubota L4740GST/HST B10305 SWITCH/SENSOR (ENGINE) [EXCEPT HST TYPE] Parts Diagram

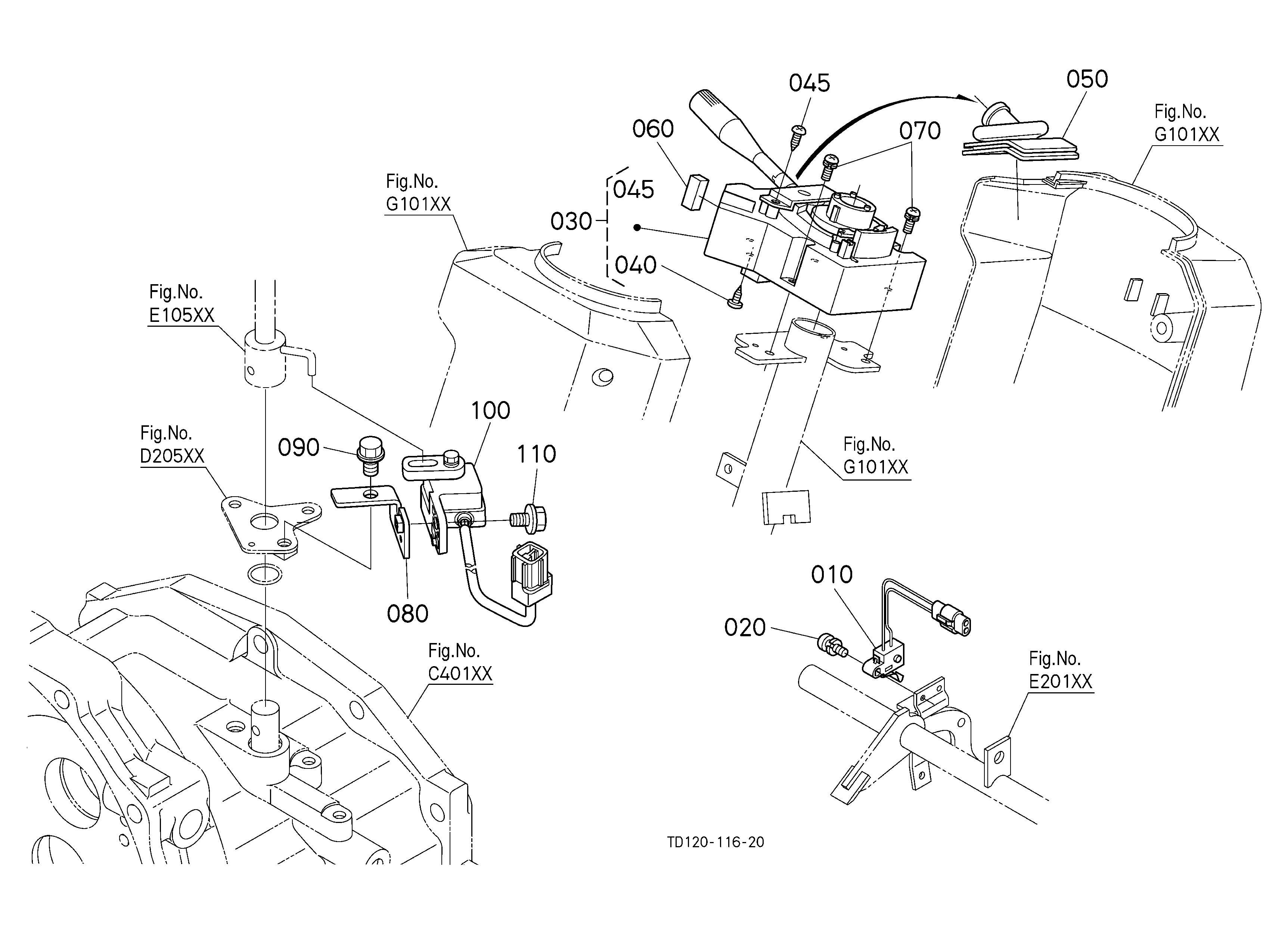

Exploded-view parts diagram "B10305 SWITCH/SENSOR (ENGINE) [EXCEPT HST TYPE]" for the Kubota L4740GST/HST. 19 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 Engine Stop Solenoid Assembly 1A021-60015 1A021-60017 1 1 IN STOCK $218.07
020 O RING 04814-06310 1 8 IN STOCK $3.37
030 STUD 15221-88212 15221-88210 1 AVAILABLE TO ORDER $2.34
040 Flange Nut 02751-50060 1 6 IN STOCK $0.60
050 Revolution Sensor 5H911-42622 1G171-59660 1 AVAILABLE TO ORDER $91.65
060 Bolt with Washer 01023-50615 01023-50616 1 10 IN STOCK $0.99
070 Engine Oil Pressure Sender Switch 15531-39010 1A024-39010 1 3 IN STOCK $37.17
080 Temp. Sensor T1173-65660 1 AVAILABLE TO ORDER $61.57
090 SENSOR, TRACTOR T1060-18660 1 AVAILABLE TO ORDER $167.93
100 M6 Flange Bolt 01754-50616 1 13 IN STOCK $2.36
110 ASSY UNIT, FUEL TD170-31200 1 2 IN STOCK $162.80
120 GASKET T1060-31220 1 1 IN STOCK $13.65
130 Flange Nut 02761-50040 1 8 IN STOCK $2.50
140 STAY, COVER TD170-39030 1 AVAILABLE TO ORDER $19.62
150 Flange Bolt 01754-50812 1 14 IN STOCK $3.93
160 COVER, SWITCH T1170-39040 1 AVAILABLE TO ORDER $10.40
170 SHIM TD150-23850 1 AVAILABLE TO ORDER $5.74
180 RING (ENGINE SEN TD150-23870 1 AVAILABLE TO ORDER $16.68
190 Steel Ball 04811-10160 1 5 IN STOCK $2.19

Showing 1 to 19 of 19 parts
